Product Parameters
| Item | Content | Unit |
|---|---|---|
| PanelSize | 10.1 inch(Diagonal) | inch |
| Resolution | 1280(H)×RGB×800(V) | dots |
| Display mode | Normally Black | MM |
| ActiveArea | 216.96(H)*135.6(V) | MM |
| Pixel Pitch | 0.0565(H)×RGB×0.1695(V) | MM |
| PixelArrangement | RGB-stripe | – |
| ModuleSize | 229.45(H)*149.22(V)*2.62(typ) | MM |
| ViewingDirection | ALL | – |
| Interface | LVDS | – |
| Luminance | 600(TYP) | cd/m² |
| operating temperature | -20-+70 | ℃ |
| storage temperature | -30-+80 | ℃ |

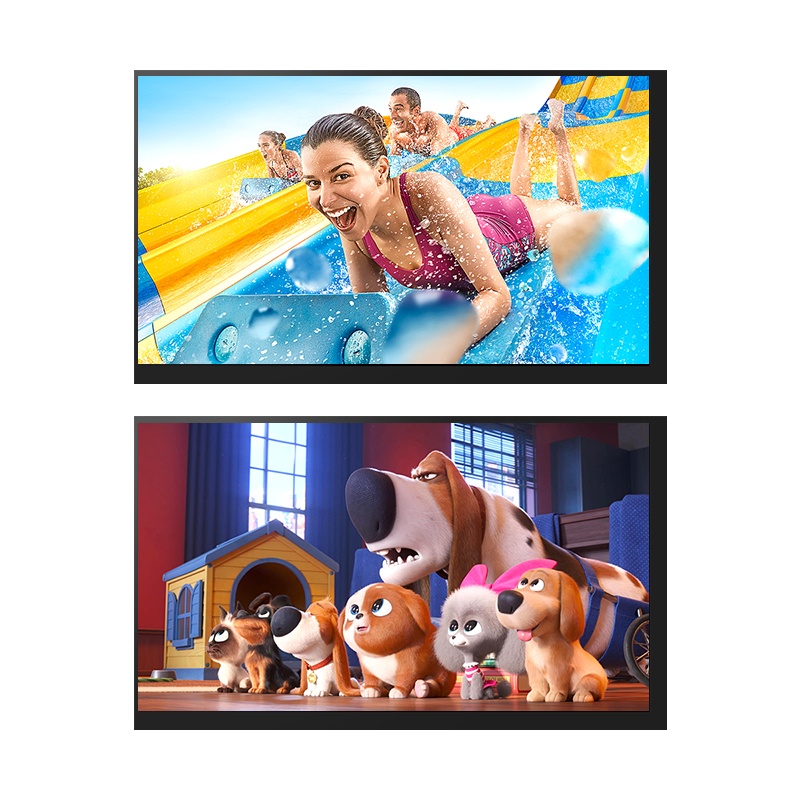

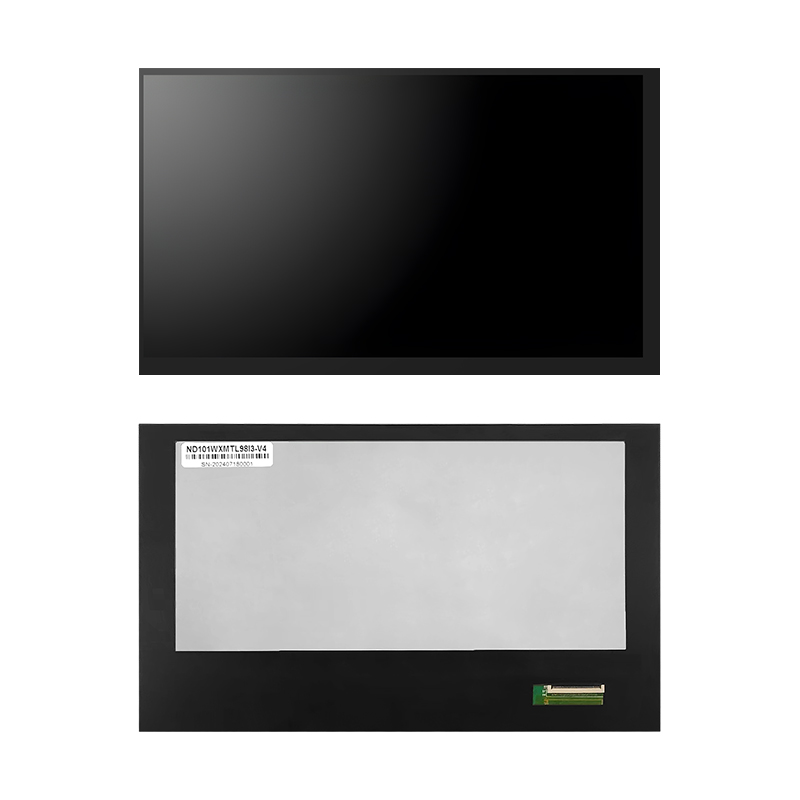

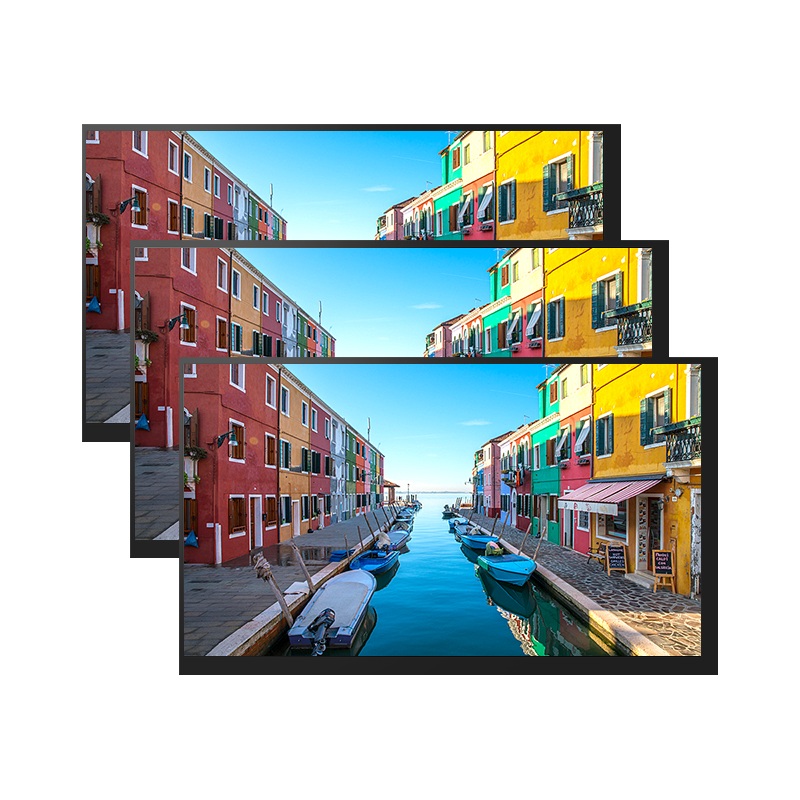

This 10.1 inch TFT LCD display module is engineered for high-performance embedded applications, featuring 1280×800 HD resolution and LVDS digital interface. It delivers exceptional image quality with low power consumption, integrating advanced liquid crystal technology and industrial-grade reliability. Ideal for industrial control, medical devices, automotive displays, smart terminals, and HMI solutions.
Key Features
This 10.1 inch TFT LCD display module Stunning Visual Performance
10.1″ TFT LCD with 1280×800 (WXGA) resolution, 149PPI pixel density, and 16.7M true-color support for vibrant imagery and sharp text.
High brightness (400cd/m² typical) and 800:1 contrast ratio for clear visibility in bright environments.
This 10.1 inch TFT LCD display module with LVDS Interface Advantages
Low-voltage differential signaling (LVDS) interface ensures high-speed digital transmission with strong anti-interference and signal integrity.
Compatible with JEIDA/VESA standards, seamlessly integrates with FPGAs, SoCs, and embedded processors.
This 10.1 inch TFT LCD display module Wide Viewing Angle & Fast Response
IPS/ASV wide-viewing technology with 178° horizontal/vertical viewing angles for multi-angle visibility.
Response time ≤30ms (Tr+Td) for smooth motion handling.
This 10.1 inch TFT LCD display module Industrial Grade Durability
Operating temperature range: -20°C to 70°C; storage temp: -30°C to 80°C.
Halogen-free materials, RoHS/REACH compliant, CE/FCC certified.
Flexible Design & Compatibility
Supports RGB 24-bit/18-bit formats, configurable single/dual-channel LVDS.
Compact form factor (235mm×145mm×3.5mm typical), customizable backlight brightness, and touchscreen options (resistive/capacitive).
Typical Applications
Industrial Control: HMI panels, PLC interfaces, automation monitoring systems.
Medical Devices: Portable diagnostic tools, ultrasound monitors, patient care terminals.
Automotive Systems: In-dash navigation, rear-seat entertainment, ADAS interfaces.
Smart Terminals: Digital signage, appliance control panels, self-service kiosks.
Value-Added Services
Customization: Tailored FPC layouts, backlight adjustments, touchscreen integration.
Technical Support: Driver development assistance, signal compatibility testing, integration guidance.
Contact us today for samples, technical documentation, and collaborative display solutions!
| Size (inch) | Resolution | Display Mode | Outline Dimensions(mm) | Active Area(mm) | LCD interface | brightness |
|---|---|---|---|---|---|---|
| 0.96″ | 80*160 | IPS | 13.5*27.95*1.5 | 10.80*21.70 | SPI4 | 350 |
| 1.3″ | 240*240 | IPS | 26.1*29.22*1.9 | 23.4*23.4 | MCU/SPI/mipi | 500 |
| 320*320 | IPS | 36.12*39.16*1.42 | 33.12*33.12 | MIPI | 500 | |
| 360*360 | IPS | 36.07*34.89*1.46 | 32.94*32.94 | MCU8Bit | 500 | |
| 1.54″ | 240*240 | IPS | 31.52*33.72*2.03 | 27.22*27.72 | MCU8Bit | 500 |
| 320*320 | IPS | 31.52*33.72*1.65 | 27.22*27.72 | MIPI | 800 | |
| 1.77″ | 128*160 | TN | 34.5*46.7*2.5 | 28.03*35.04 | MCU8Bit | 300 |
| 2″ | 176*220 | TN | 41.5*49.1*2.25 | 31.68*39.6 | SPI4Line | 260 |
| 240*320 | TN | 33.24*46.82*1.3 | 30.24*40.32 | RGB18bit | 250 | |
| 480*360 | IPS | 40.96*46.1*2.53 | 30.6*40.8 | MIPI | 400 | |
| 2.4″ | 240*320 | TN | 42.72*59.86*1.95 | 32.72*48.96 | RGB18bit | 600 |
| 240*320 | IPS | 40.44*57*2.15 | 32.72*48.96 | MCU8bit | 750 | |
| 2.8″ | 240*400 | EWV | 42.8*72.3*2.61 | 36.72*61.2 | MCU8bit | 350 |
| 480*640 | IPS | 47.8*68.25*2.15 | 43.2*57.6 | MIPI | 400 | |
| 240*320 | IPS | 47.8*68.25*2.2 | 43.2*57.6 | RGB18bit | 400 | |
| 3″ | 240*400 | EWV | 43.44*75.31*2.35 | 38.88*64.8 | MCU16Bit | 350 |
| 360*640 | IPS | 42.64*74.91*2.45 | 36.72*65.28 | RGB | 400 | |
| 3.2″ | 240*320 | TN | 52.28*73.04*2.2 | 47.88*63.84 | SPI | 260 |
| 240*320 | EWV | 55.04*77.6*2.3 | 48.6*64.8 | MCU16Bit | 300 | |
| 1024*768 | IPS | 70.5*57.7*2.5 | 64.51*48.38 | RGB/MIPI | 500 | |
| 3.5″ | 320*480 | TN/IPS | 54.48*84.71*2.25 | 48.96*73.44 | MIPI/MCU/RGB | 450 |
| 320*240 | IPS/TN | 76.84*63.84*3.27 | 70.08*52.56 | RGB/MCU | 450-900 | |
| 640*480 | IPS | 76.84*63.84*3.27 | 70.08*52.56 | RGB/MIPI | 450-900 | |
| 1024*600 | IPS | 87.1*56.8*2.7 | 77.568*45.45 | RGB/MIPI | 500 | |
| 1920*1080 | IPS | 87.1*56.8*2.7 | 77.76*43.74 | LVDS/MIPI | 500-1000 | |
| 3.95″ | 480*480 | IPS | 74.83*77.68*2.15 | 71.93*71.93 | RGB18BIT | 300 |
| 3.97″ | 480*800 | IPS/TN | 55.5*96.2*2.11 | 51.84*86.4 | RGB/MIPI/MCU | 350 |
| 4″ | 1280*720 | IPS | 93.08* 58.76* 2.71 | 87.94 * 49.46 | LVDS | 1000 |
| 4.3″ | 480*272 | TN | 105.5*67.2*2.9 | 95.04*53.856 | RGB24bit/MCU | 350-1000 |
| 800*480 | IPS | 105.42*67.07*3.14 | 95.04*53.856 | RGB24bit/MCU | 350-1000 | |
| 480*272 | IPS | 105.5*67.2*2.9 | 95.04*53.856 | RGB24bit/MCU | 350-1000 | |
| 1920*1080 | IPS | 106.34 * 99.46 * 2.32 | 100.8 * 56.7 | LVDS/HDMI | 350-2000 | |
| 4.5″ | 480*854 | IPS | 60*109*1.7 | 55.44*98.64 | MIPI/MCU/RGB | 350 |
| 1920*1080 | IPS | 106.34*66.01*2.32 | 100.8*56.7 | LVDS/MIPI/HDMI | 1000-2000 | |
| 720*1280 | IPS | 58.74*130.5*1.98 | 55.51*98.69 | MIPI/LVDS | 350-1000 | |
| 1920*1080 | IPS | 106.34*66.01*2.32 | 100.8*56.7 | LVDS/MIPI/HDMI | 350-2000 | |
| 4.7″ | 720*1280 | IPS | 61.4*112.6*1.6 | 58.1*103.3 | MIPI | 400 |
| 5″ | 800*480 | IPS | 120.7*75.9*2.95 | 108*64.8 | RGB24bit/MCU | 600 |
| 800*480 | EWV | 120.7*75.9*2.95 | 108*64.8 | RGB24bit/MCU | 350 | |
| 640×480 | EWV | |||||
| 720*1280 | IPS | 65.3*119.28*1.64 | 61.56*109.53 | MIPI | 350 | |
| 480*854 | IPS | 66.4*120.05*2.05 | 61.56*109.53 | RGB/mipi | 400 | |
| 1080*1920 | IPS | MIPI | 350-1000 | |||
| 5.2″ | 720*1280 | IPS | 67*122.6*1.5 | 64.8*115.2 | MIPI | 450 |
| 5.5″ | 720*1280 | IPS | 71.3*128.8*1.67 | 68.04*128.96 | MIPI | 350 |
| 1080*1920 | IPS | 71.04*129.57*1.55 | 68.04*128.96 | MIPI | 350-1200 | |
| 5.6″ | 640*480 | TN | 126.5*100*5.7 | 112.89*84.67 | RGB | 350 |
| 5.7″ | 640*480 | IPS | 127*98.43*5.5 | 115*86.4 | RGB | 1000 |
| 6″ | 720*1280 1080*1920 | IPS | 76.84*139.46*2.02 | 77.98*131.52 | MIPI | 350/650/2000 |
| 1920*1080 | IPS | 134*84.5*4.6 | 126.2*70.99 | LVDS | 1000 | |
| 6.5“ | 3840*2060 | IPS | 158.92*82.7*4 | 141.12*79.38 | MIPI | 2000 |
| 7″ | 1024*600 | IPS | 164.8*100*2.8 | 154.08*85.92 | RGB/mipi/LVDS/MCU | 300-1000 |
| 800*480 | EWV | 164.9*100*3.5 | 154.08*85.92 | TTL/MCU | 300-1000 | |
| 800*1280 | IPS | 99.65*160.85*2.4 | 94.2*150.72 | MIPI | 300 | |
| 800*1280 | IPS | 104.3*161.65*2.5 | 93.57*150.05 | LVDS | 300 | |
| 720*1280 | IPS | 91.44*165.91*2.35 | 86.94*154.56 | MIPI | 300 | |
| 1200*1920 | IPS | 98.75*160.85 | 94.50 *151.20 | MIPI | 350-2000 | |
| 1920*1200 | IPS | 98.75*160.85 | 94.50 *151.20 | LVDS | 350-2000 | |
| 8″ | 1024*768 | IPS | 174*136*2.5 | 162.5*121.54 | LVDS | 250 |
| 800*600 | EWV | 182.9*141*5.6 | 162*121.5 | RGB/MCU | 350 | |
| 1024*600 | EWV | 192.8*116.7*6.6 | 176.64*99.36 | RGB/MCU | 450 | |
| 800*1280 | IPS | 114.6*184.1*2.6 | 107.64*172.22 | MIPI | 500-1000 | |
| 1280*800 | IPS | 184.1*114.6*6.4 | 172.22*107.64 | LVDS | 800 | |
| 1280*720 | IPS | 192.8*116.9*4.5 | 176.64*99.36 | LVDS | 350-750 | |
| 1200*1920 | IPS | 114.6*184.1*2.5 | 107.64*172.22 | MIPI | 300-500 | |
| 1920*1200 | IPS | 181.7*119.8*5.5 | 172.2*107.6 | LVDS | 1000 | |
| 8.4″ | 1600*2560 | IPS | 118.68*192.15*1.92 | 113.28*181.248 | MIPI | 280 |
| 9″ | 800*480 | EWV | 210.7*126.5*5.2 | 198*111.696 | RGB/MCU | 300 |
| 720*1280 | IPS | 126.6*210.8*5.0 | 114.048*196.608 | MIPI | 400 | |
| 1280*720 | IPS | 210.7*112.65*5.1 | 198.91*111.89 | LVDS | 350-600 | |
| 9.7″ | 1024*768 | IPS | 210.2*164.2*5 | 196.61*147.46 | LVDS/HDMI | 350-600 |
| 10.1″ | 1280*800 | IPS | 229.46*149.1*2.6 | 216.96*135.6 | LVDS | 350-1000 |
| 720*1280 | IPS | 143.1*235.1*4.5 | 125.28*222.72 | MIPI | 400 | |
| 800*1280 | IPS | 143.06*228.66*4.00 | 135.36*216.58 | MIPI | 300 | |
| 1024*600 | IPS | 235*143*2.9 | 222.72*125.28 | TTL/lvds/MCU | 300/1000 | |
| 1920*1080 | IPS | 235.1*142.5*4.5 | 223.5*125.72 | LVDS | 1000 | |
| 1920*1200 | IPS | 229.25*149.05*2.6 | 216.8064*135.504 | LVDS/mipi | 350-1000 | |
| 1920*1200 | IPS | 231.0*154.5*5.4 | 217.6*135.85 | LVDS | 500-1000 | |
| 1200*1920 | IPS | 143*228.55*2.7 | 135.36*216.576 | MIPI | 350/1000 |
- Company Profile
Shenzhen New Display Co., Ltd. (Bao’an District, Shenzhen) specializes in TFT LCD module R&D/production.
Sizes: 1.44” 1.77″ 2.0”2.2″2.4” 2.8″3.0″3 2″3.5″4.3″ 5.0″8″97″10.1″11.6″12.3″13.3″14.6″15.6″17.3″18.4″21.5″and 23.8″ custom industrial sizes.
Applications: Banking, automotive, mobile devices, consumer electronics.
Markets: China, Europe, Americas, Japan.
Factory: Automated lines, R&D team, full divisions (LCM/TP/SMT/FPC/Backlight).
Customization: Backlight, touch panels (Resistive/Capacitive), AD boards (VGA/HDMI), FPC/RGB cables.
Advantages: High brightness (1000nits), HD/IPS, sunlight-readable/transparent/ultra-thin OLED, competitive pricing.
OUR CERTIFICATE
Looking for your inquiry of this 10.1 inch (1280×800) resolution TFT LCD display modules with LVDS interface.
