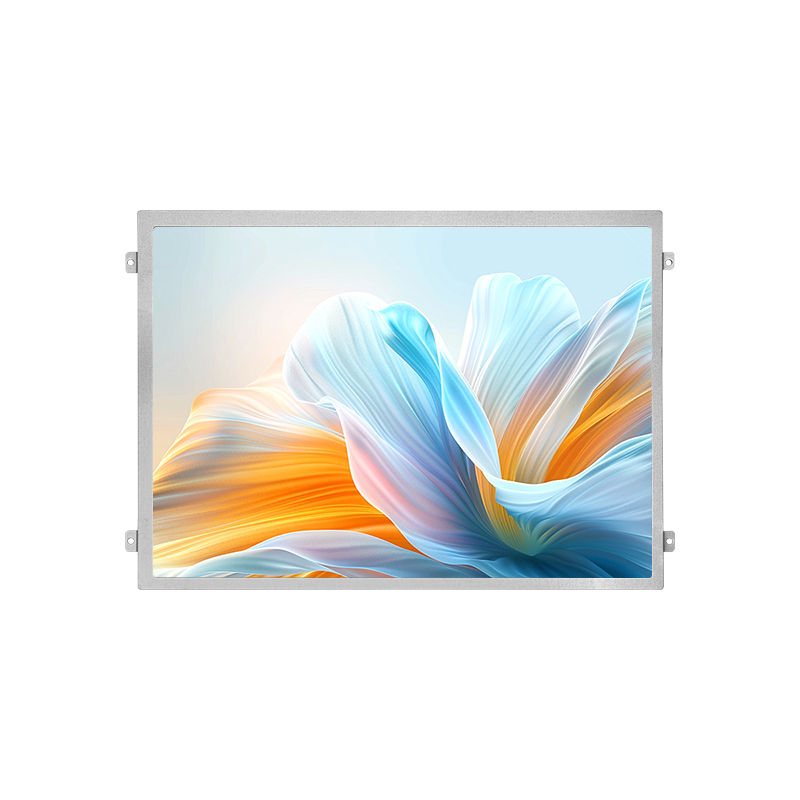

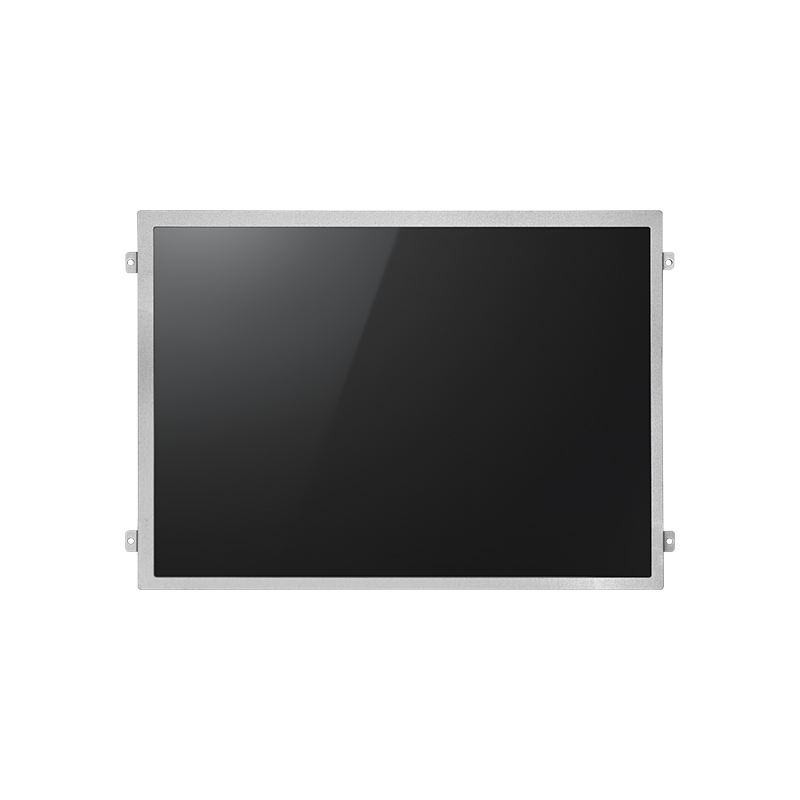

This 10.4-inch TFT LCD module is engineered for industrial control, medical equipment, and legacy embedded systems, balancing XGA-grade 1024×768 resolution with cost-effectiveness. The LVDS interface ensures stable data transmission and supports long-distance wiring, making it ideal for applications with complex electromagnetic interference or space constraints.
Key Features
This 10.4-inch TFT LCD module Visuals and Color Performance
1024×768 pixel resolution with 16.7 million colors (24-bit color depth) for precise industrial monitoring and graphical displays.
High-brightness LED backlight (350cd/m² typical) and 800:1 contrast ratio for industrial lighting conditions.
This 10.4-inch TFT LCD module LVDS Data Transmission
Single-channel LVDS configuration (dual-channel optional) compatible with mainstream timing controllers. Supports DE/HSYNC+VSYNC signal modes.
Differential signaling technology for robust anti-interference and data integrity.
This 10.4-inch TFT LCD module Industrial-Grade Durability
IPS panel technology with 170° wide viewing angles (H/V) for multi-user collaboration.
Wide operating temperature range (-20°C to 70°C) and resistance to vibration/shock for harsh industrial environments.
Low Power and Longevity
LED backlight lifespan exceeding 30,000 hours with PWM dimming support for energy efficiency.
Low-power design (<5W active, <0.3W standby) compliant with green device standards.
Mechanical & Electrical Specifications
Dimensions: 10.4″ diagonal, active area 211.2mm(W)×158.4mm(H)×4.5mm(D) (typical).

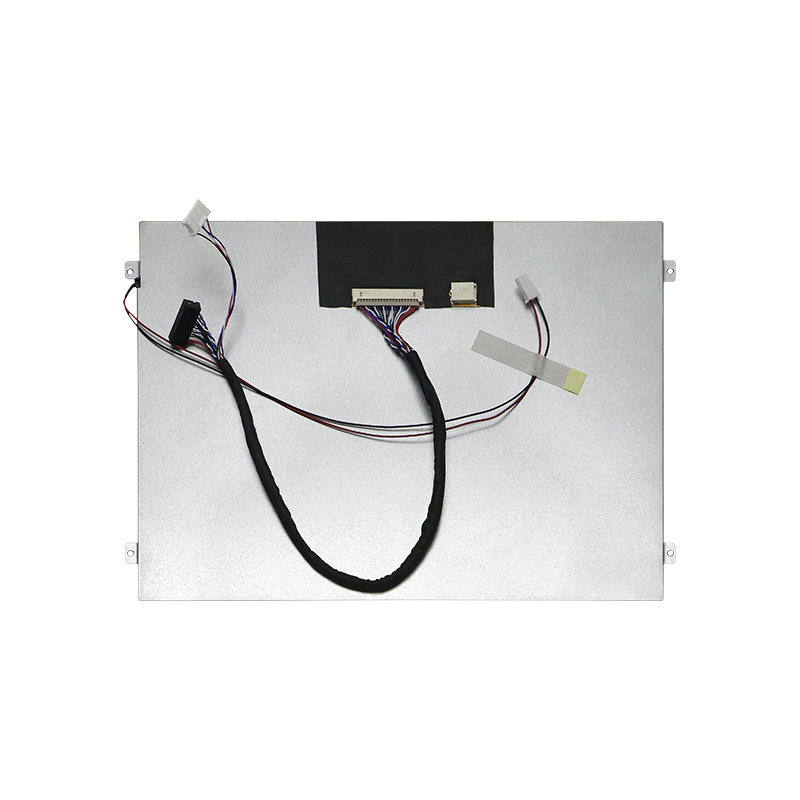

Interface: 20-pin LVDS connector (standard), JEDEC-compliant timing, optional touchscreen controller integration.
Power Input: DC 12V (typical), wide-range input (9-18V) with built-in overvoltage/overcurrent protection.
Mounting: VESA 75mm holes for standard industrial enclosures or wall mounts.
Typical Applications
Industrial Automation: PLC HMIs, production line monitors, CNC machine control panels.
Medical Devices: Portable patient monitors, laboratory analyzer displays.
Transportation: In-vehicle navigation systems, railway signaling terminals.
Commercial Equipment: Self-service kiosks, legacy ATM display upgrades.
Quality & Compliance
ISO9001-certified manufacturing, FCC/RoHS compliant for environmental and EMC standards.
1-year warranty with upgrade options: Resistive touchscreen overlay, wide-temperature backlight customization (-40°C cold start).
Technical Support
Comprehensive documentation: Driver IC selection guides, LVDS routing specifications, backlight control references.
Engineering support: Hardware integration debugging, Linux/Windows driver development, burn-in testing protocols.
Flexible customization: FPC cable length adjustment, cover glass thickness options, specialized backlight colors (e.g., yellow-green filters).
This module delivers cost-effective display performance with industrial reliability, catering to budget-sensitive applications requiring stable visualization. Customization options accommodate diverse integration needs while maintaining rigorous quality standards.
