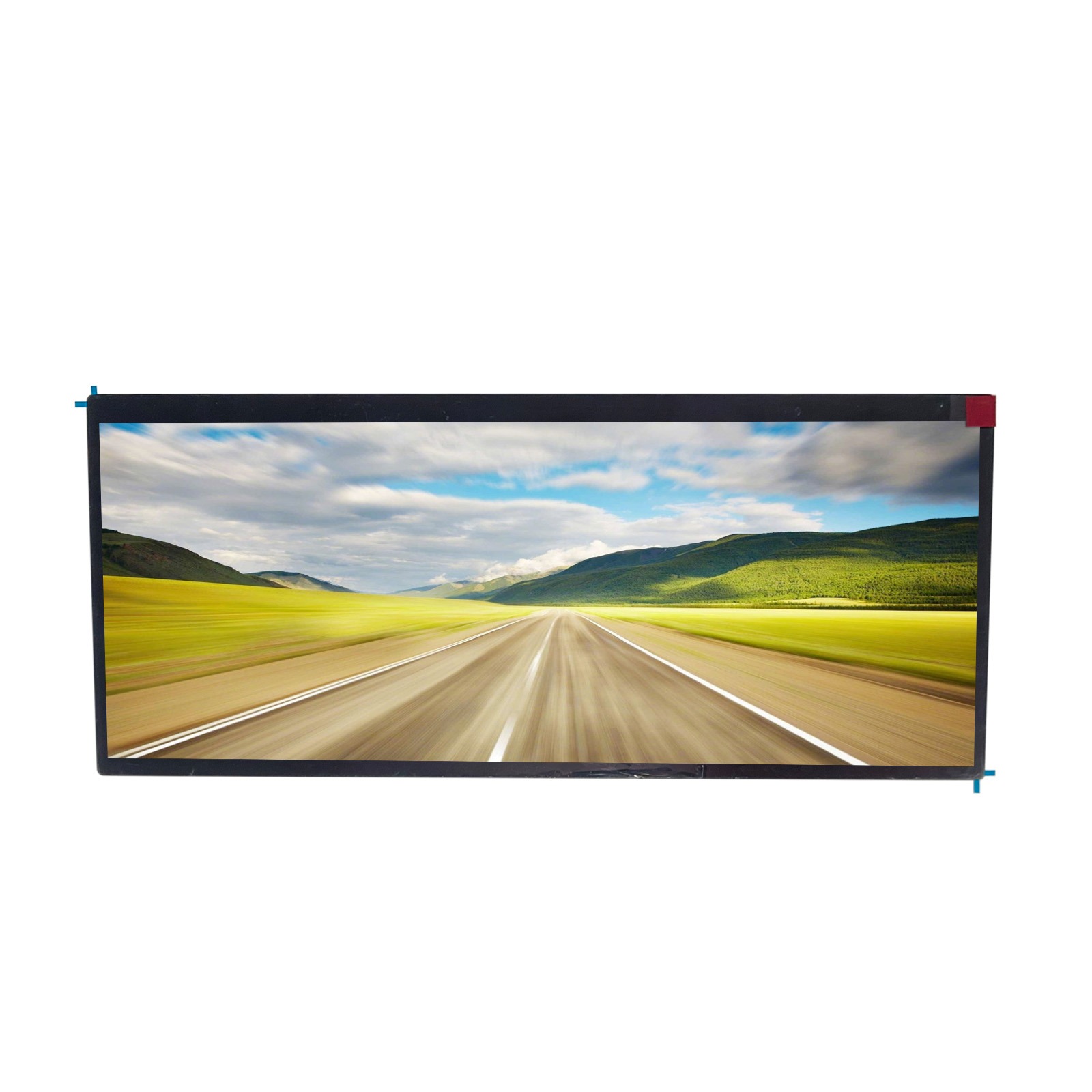

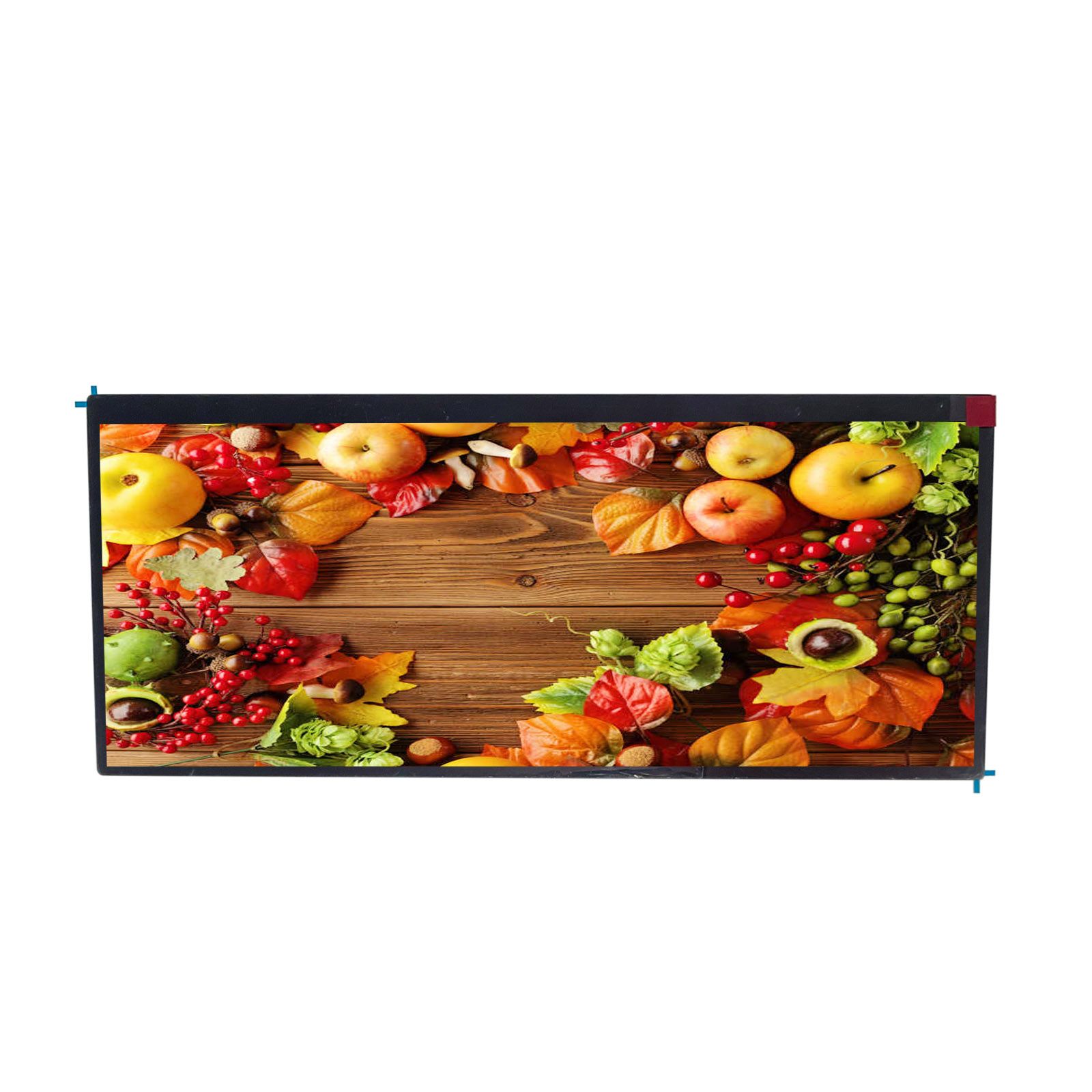

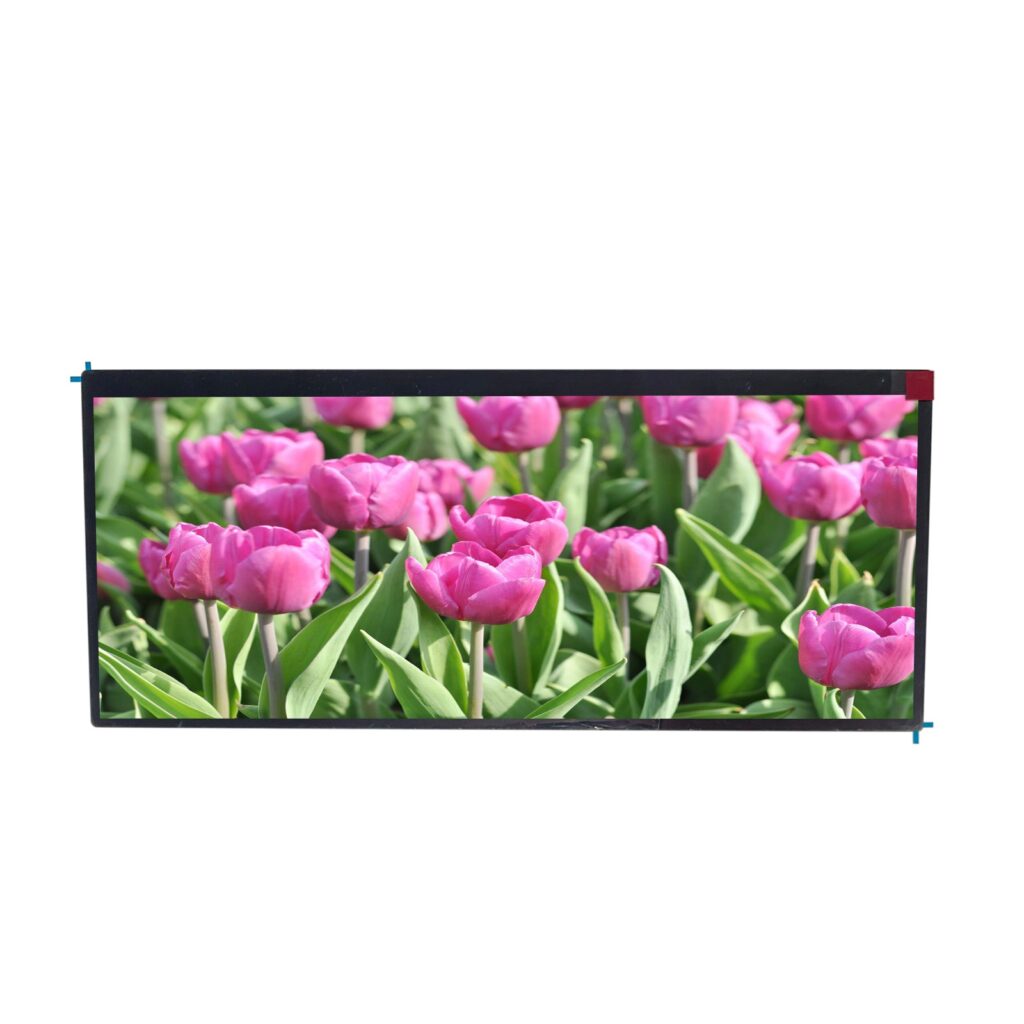

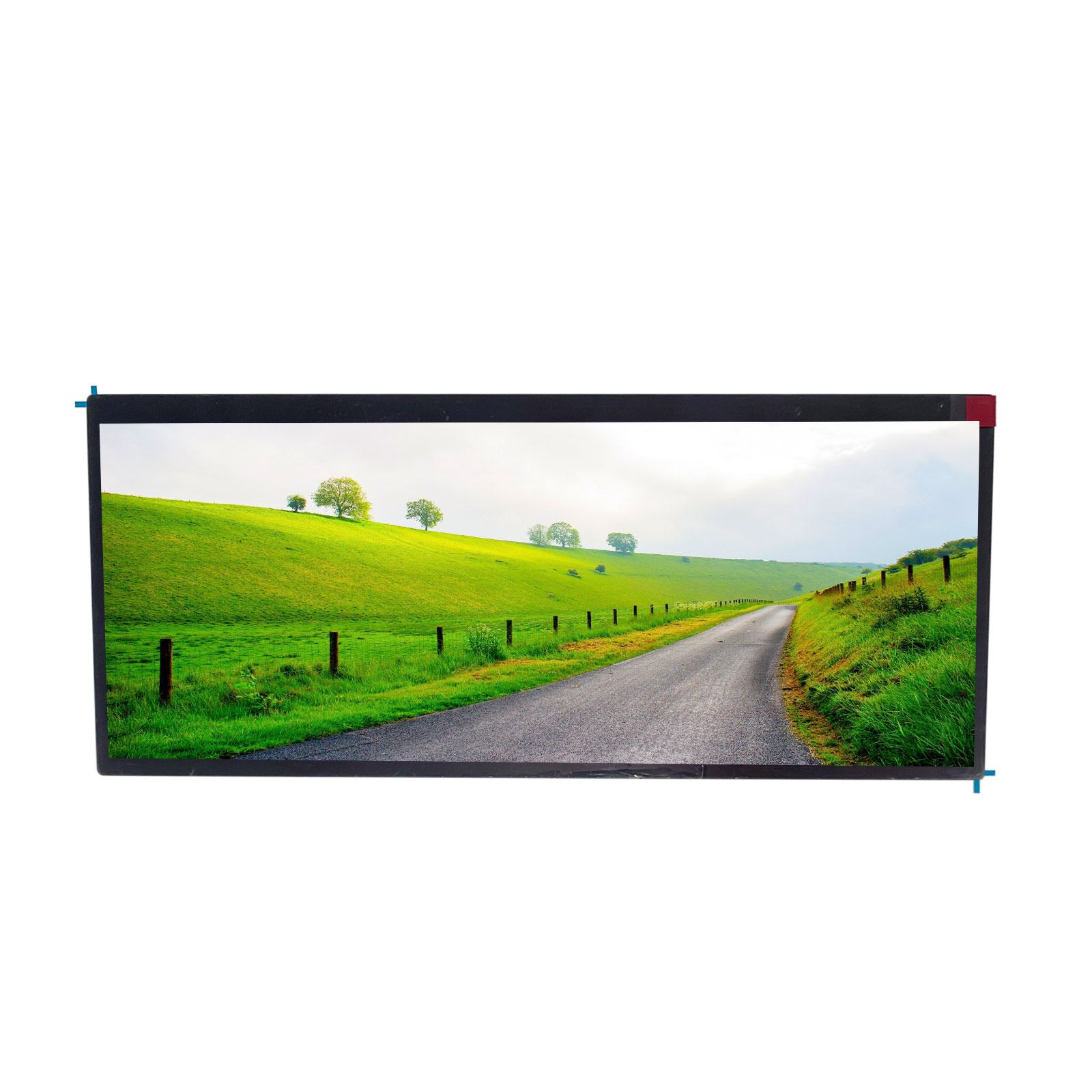

This 12.3 inch bar shaped LCD module is engineered for demanding applications in automotive, medical, industrial, and IoT sectors, offering an ultra wide 900×2400 resolution combined with MIPI DSI and I2C control interfaces. Designed for space-constrained environments requiring high information density, it delivers exceptional visual clarity, robust connectivity, and flexible integration options for dashboards, diagnostic equipment, surveillance systems, and smart devices.

Key Features

This 12.3 inch bar shaped LCD module Ultra High Definition Display
Resolution: 900×2400 pixels (1:2.67 aspect ratio), 300PPI for razor sharp text and intricate graphics.
Brightness: 800cd/m² standard (1200cd/m² optional), with auto dimming and local dimming zones.
Color Performance: 16.7M colors (8-bit + FRC), 95% NTSC gamut, HDR10 support.
Viewing Angles: 178° IPS technology with minimal color shift.
This 12.3 inch bar shaped LCD module DualInterface Synergy
MIPI DSI: 4-lane high speed interface (1.5Gbps/lane), enabling 4K@60fps video streaming with low latency.
I2C Control: Secondary interface for backlight adjustment, touch control, and system diagnostics.
Power Efficiency: Dynamic Voltage Scaling (DVS) reduces power by up to 40% during idle states.
This 12.3 inch bar shaped LCD module Mechanical Design
Compact Form Factor: Active area113.7024 x 297.36 , module thickness 4.5mm (with optical bonding).
Mounting Options: 8×M3 mounting holes + 3M VHB adhesive for curved/flat surfaces.
Bar Optimized Layout: Ideal for horizontal instrument clusters, waveform monitors, or multi parameter displays.
This 12.3 inch bar shaped LCD module Environmental Durability
Operating Temp: -20°C~70°C (wide temp option), 5G vibration resistance, IP67 front panel sealing.
Lifetime: 50,000 hour LED backlight lifespan (L70 standard).
This 12.3 inch bar shaped LCD module Intelligent Features
Ambient Light Sensor: Auto-brightness adjustment with 1-100% PWM/DC dimming.
Local Dimming: 24 zone backlight control for 5000:1 contrast ratio.
Electrical Specifications

Driver IC: Integrated TCON with MIPI DSI v1.3 and I2C v2.1 support.
Power Supply: 3.3V/5V compatible, <8W typical power consumption.
Signal Compatibility: RGB888/RGB666 data formats, support for 10 bit HDR input.
Applications

Automotive: Digital cockpits, ADAS status bars, rear seat entertainment sub-displays.
Medical: Patient monitoring waveforms, ultrasound secondary screens, surgical navigation.
Industrial: SCADA system trend graphs, CNC parameter tracking, IoT edge device interfaces.
Smart Devices: Portable diagnostic tools, digital signage info strips, drone control panels.
Quality & Compliance

Certifications: CE/FCC/RoHS/REACH, optional AEC-Q102 (automotive)/ISO 13485 (medical).
Reliability: 100% burn in test, 72 hour thermal cycling (-30°C~85°C).
Customization Options

Touch Integration: PCAP multitouch, anti glare/anti fingerprint coatings.
Optical Enhancements: Circular polarizer for sunlight readability, privacy filter options.
Functional Add-Ons: Integrated NFC/RFID, pressure sensors, or haptic feedback.
Competitive Advantages

Industry-Leading Density: 900×2400 resolution enables 40% more info display than 720p bar screens.
Interface Flexibility: MIPI + I2C dual-interface reduces BOM cost by 30% vs. standalone solutions.
This module sets a new benchmark for high-resolution bar displays, combining extreme pixel density with dual-interface versatility to meet the evolving demands of next-generation embedded systems.
