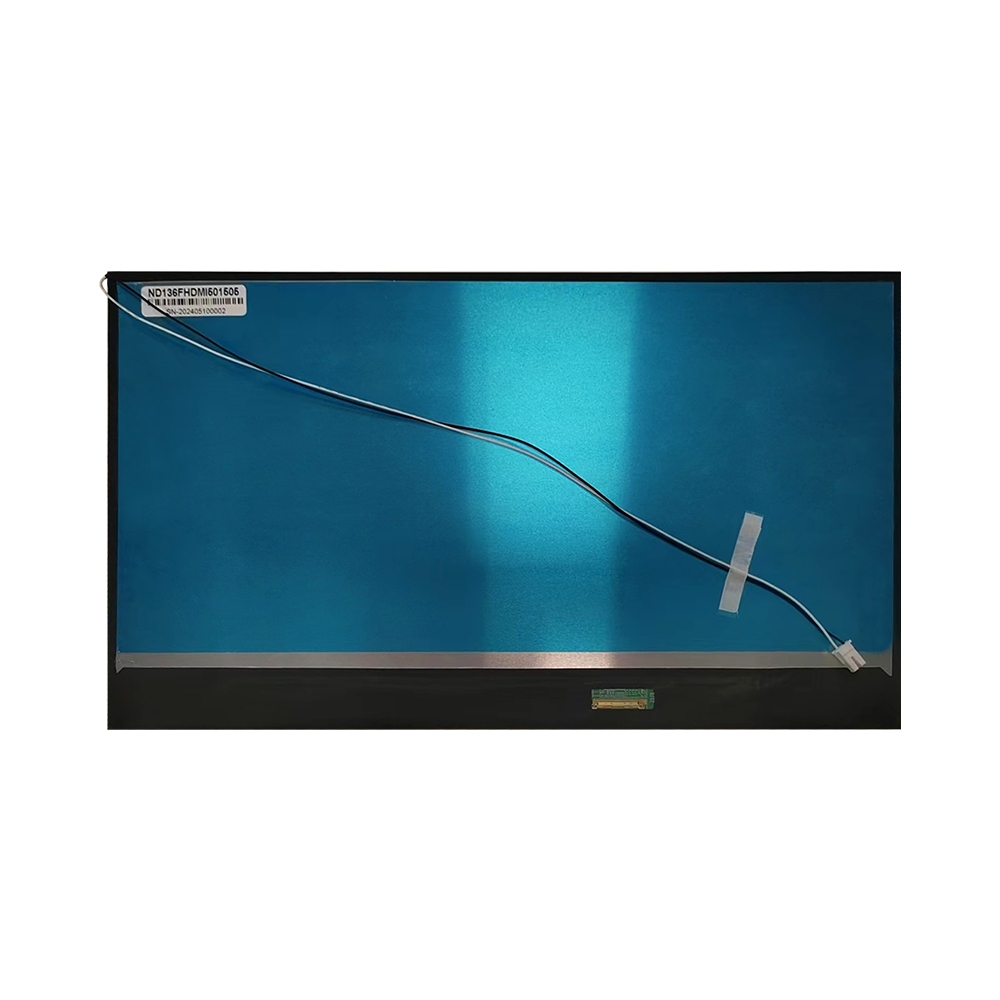

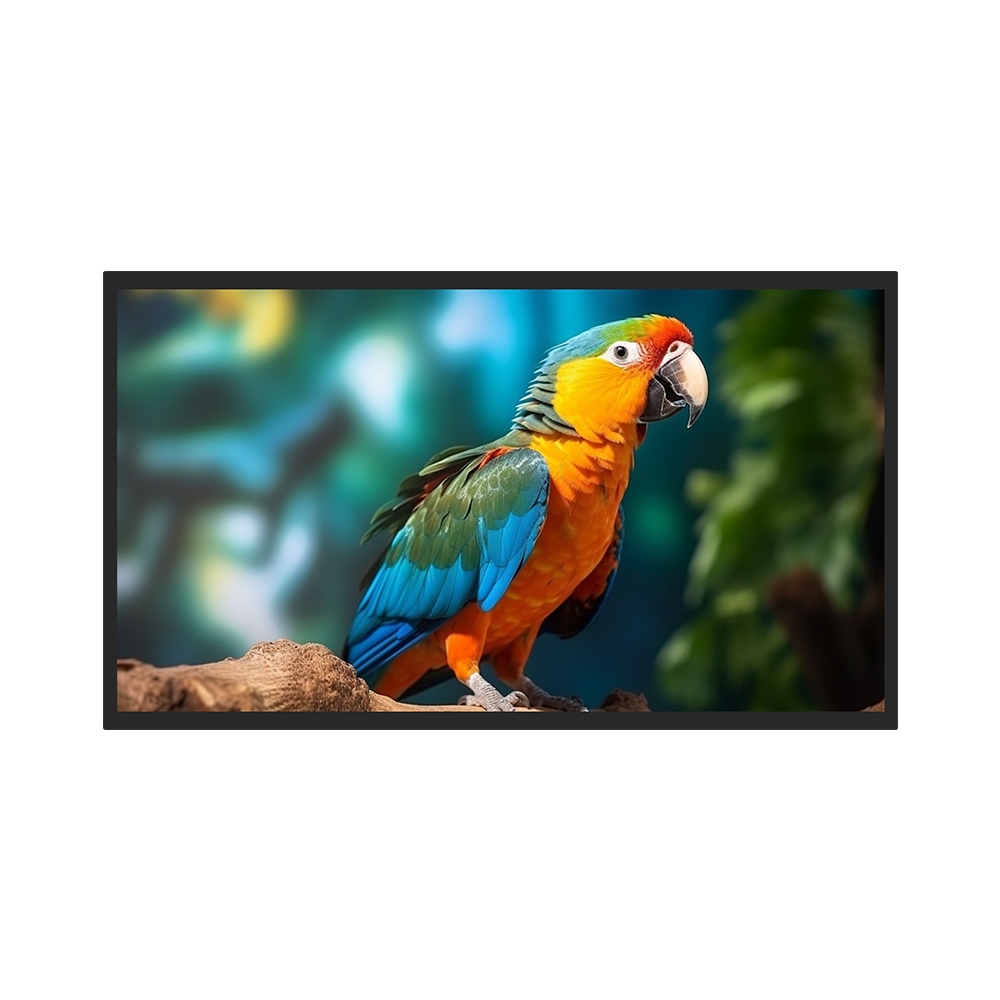

This 13.3-inch Full HD TFT LCD module is designed for applications requiring sharp visuals and low-power efficiency, such as high-performance laptops, portable medical devices, industrial control terminals, and embedded systems. Featuring an eDP (Embedded DisplayPort) interface, it delivers seamless connectivity with modern processors while supporting 1920×1080 resolution for crisp, detailed imagery.
Key Features
This 13.3-inch Full HD TFT LCD module Visual Performance
13.3-inch diagonal IPS panel with 1920×1080 Full HD resolution (16:9 aspect ratio).
High-brightness LED backlight (300cd/m² typical) and 800:1 contrast ratio for vibrant colors.
Wide 178° viewing angles (horizontal/vertical) for consistent image quality across multiple perspectives.
This 13.3-inch Full HD TFT LCD module eDP Interface Capabilities
Compliant with eDP 1.4 standards, supporting 4-lane operation with up to 21.6 Gbps bandwidth.
Direct connection to integrated GPUs, enabling multi-display configurations and reduced system complexity.
Low-power modes (Panel Self-Refresh, PSR) for extended battery life in mobile devices.
This 13.3-inch Full HD TFT LCD module Compact & Durable Design
Ultra-slim profile (3.0mm thickness) with a narrow bezel for modern device integration.
Robust metal chassis resistant to shock/vibration (IEC60068-2-6/27 compliant).
Operating temperature range: 20°C to 70°C (standard) / -30°C to 80°C (optional wide-temp version).
Enhanced Functionality
Adaptive-Sync support for tear-free video playback.
On-screen display (OSD) menu for brightness, color, and gamma adjustment.
Optional ambient light sensor for automatic brightness control.
Mechanical & Electrical Specifications
Physical Dimensions: Active area 293.76mm(W)×165.24mm(H), 13.3-inch diagonal.
Interface: 30-pin eDP connector (0.5mm pitch), supporting 1/2/4-lane mode switching.
Power: DC 12V (8-20V input range), <3W typical power consumption.
Mounting: VESA 75mm mounting holes for flexible installation.
Typical Applications
Computing: Ultra-portable laptops, 2-in-1 detachable tablets, mini-PC monitors.
Medical: Portable ultrasound displays, patient monitoring systems.
Industrial: HMI panels for IoT devices, test equipment interfaces.
Automotive: In-dash infotainment systems, rear-seat entertainment screens.
Quality & Compliance
Certifications: CE, FCC, RoHS, REACH; optional ISO13485 (medical) and AEC-Q100 (automotive).
optional upgrades:
Anti-glare (AG) glass (92% light transmittance),capacitive touch overlay (supports gloves/wet fingers)
Optical bonding for improved sunlight readability.
Technical Support & Customization
Comprehensive documentation: eDP protocol guides, EDID customization tools, driver samples (Windows/Linux).
Engineering services: Custom gamma curves, backlight driver tuning, thermal management solutions.
System-level integration: Touch controller pairing, EMI shielding optimization.
This 13.3-inch module balances performance and portability, making it ideal for space-constrained applications demanding Full HD clarity and reliable eDP connectivity. Flexible customization options and global certifications ensure seamless integration into diverse products.
