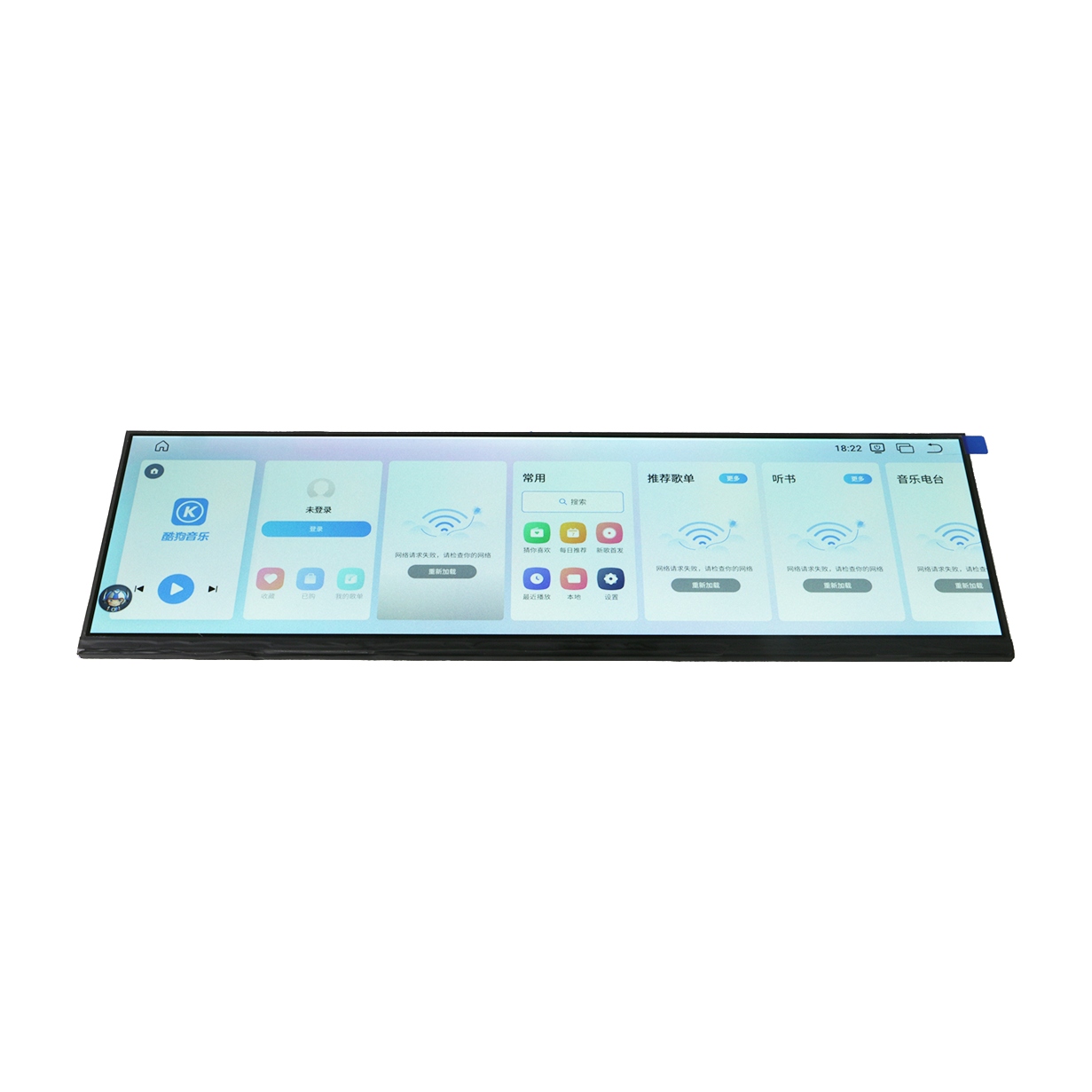

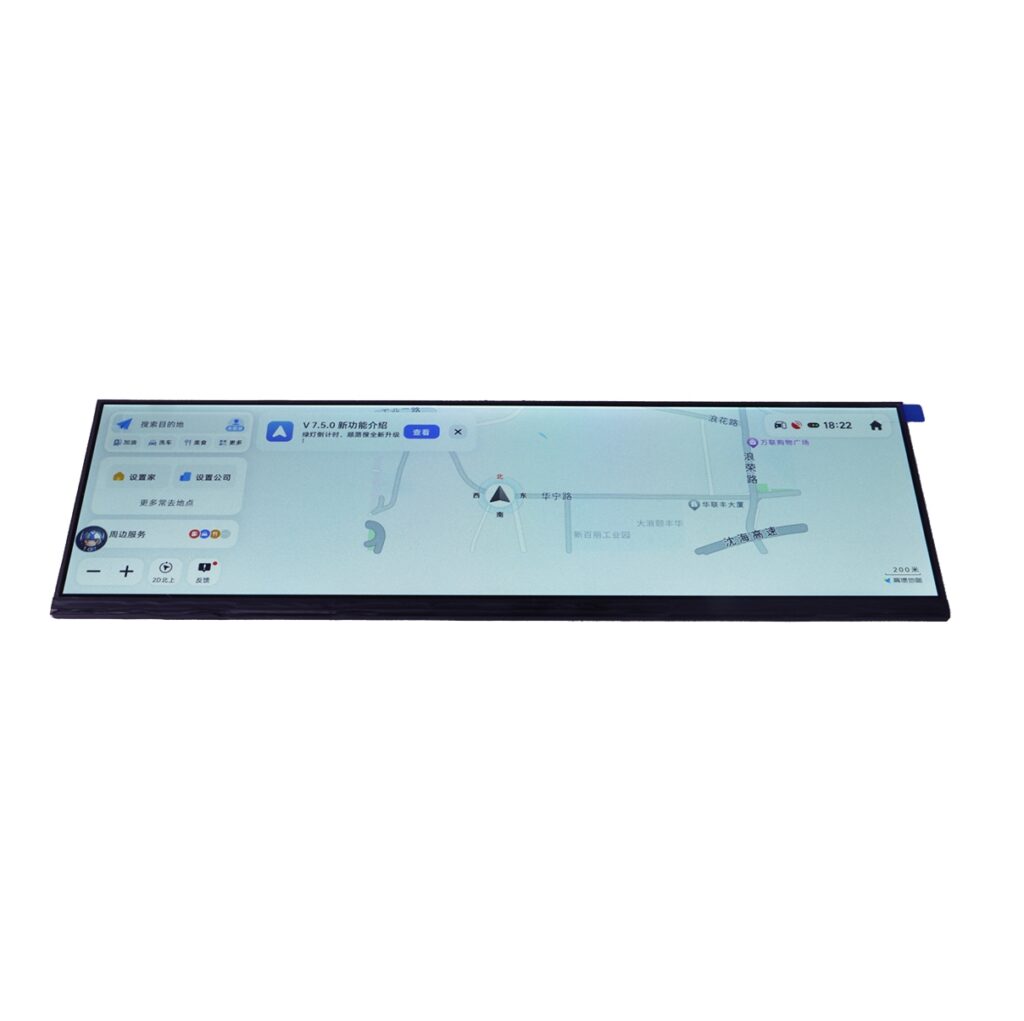

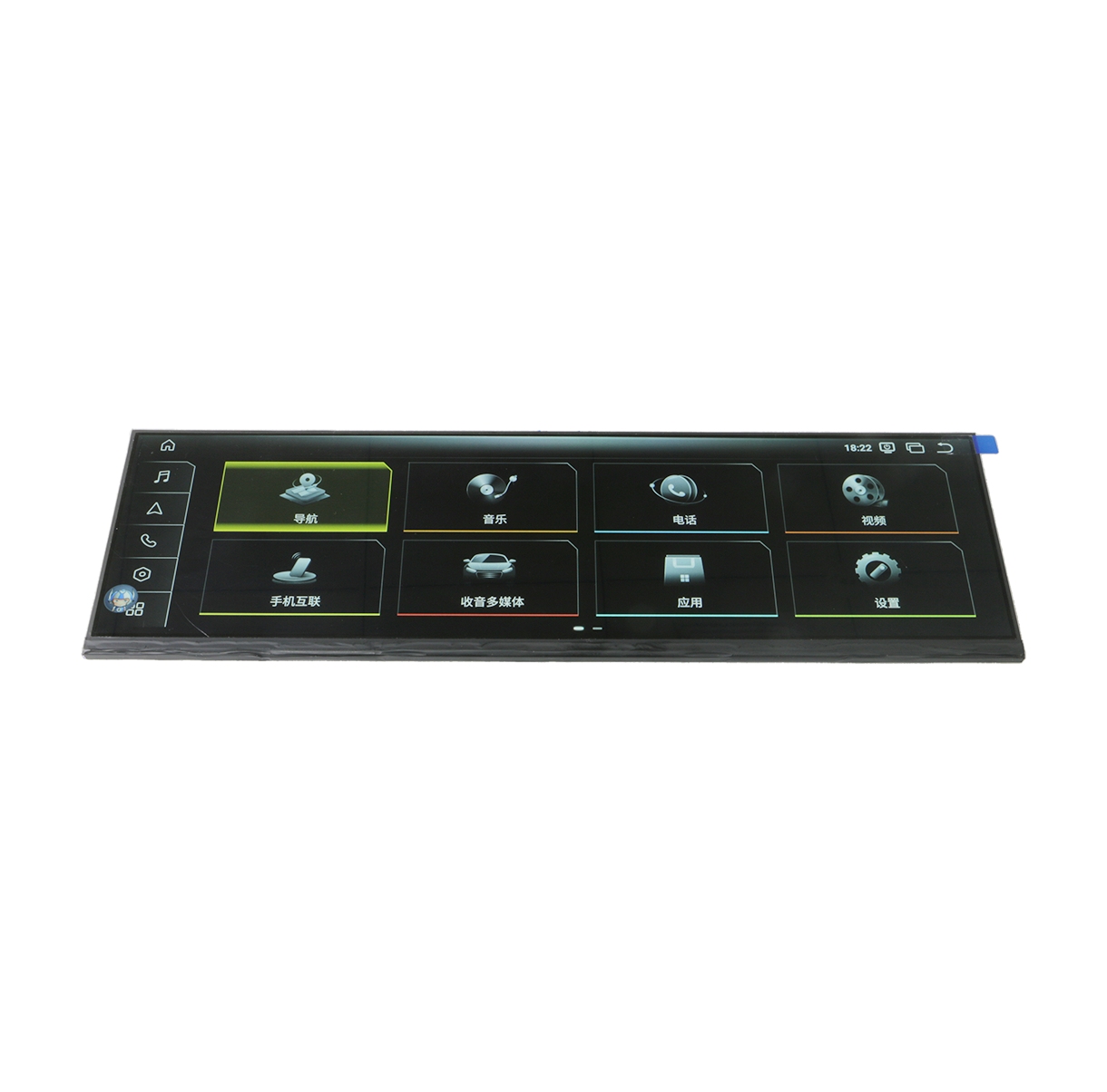

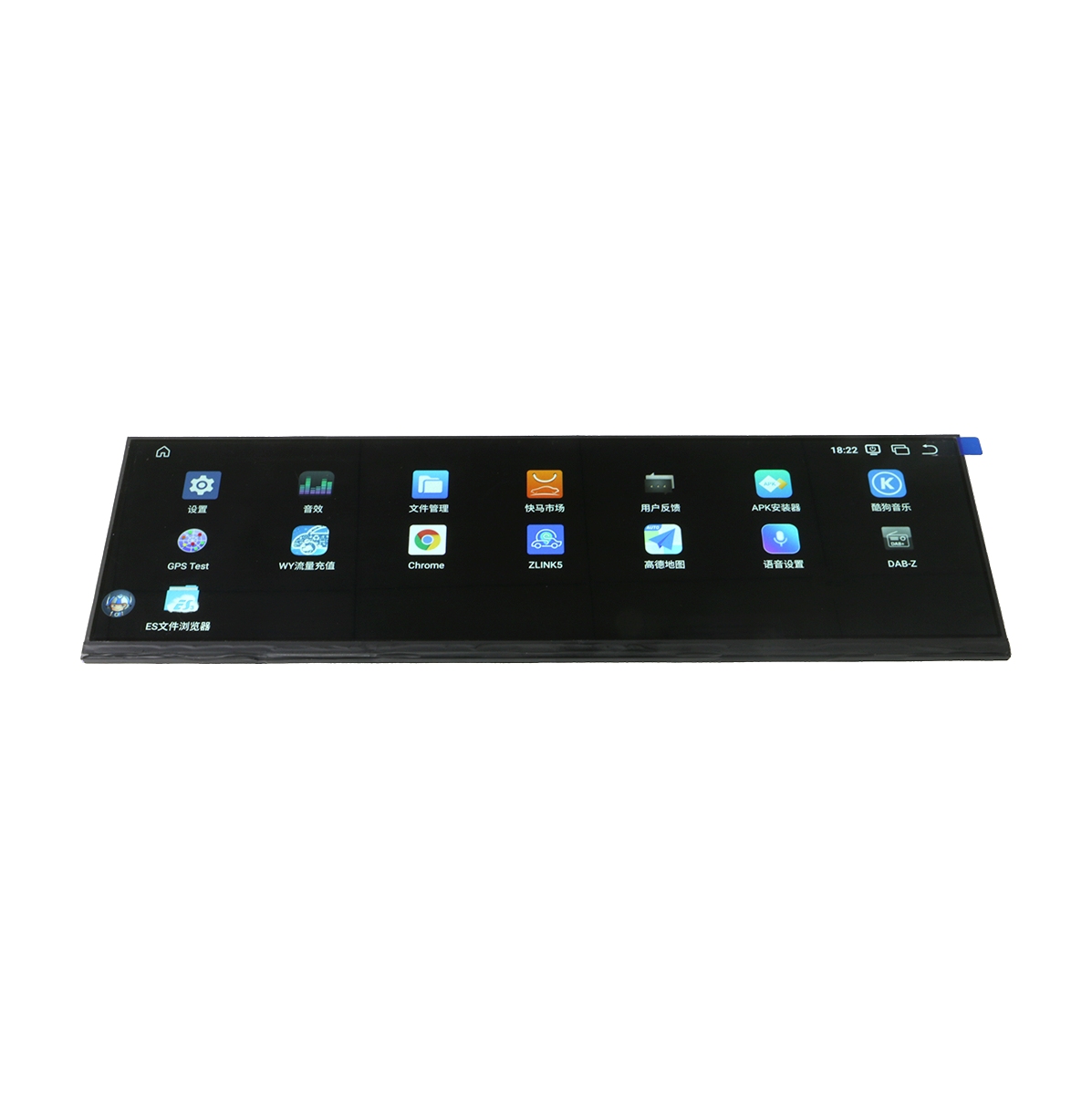

This 14.5 inch bar shaped LCD module is designed for industrial control, smart transportation, digital signage, and medical equipment applications. Featuring a 2560×720 ultra wide resolution and LVDS differential signaling interface, it supports long-distance stable transmission and high reliability in complex electromagnetic environments. Its 3.55:1 aspect ratio fits elongated spatial layouts such as industrial monitoring dashboards, vehicular info bars, and medical imaging sub-screens, combining high information density, low power consumption, and robust environmental adaptability.

Core Features

This 14.5 inch bar shaped LCD module High Definition Display Performance
Resolution: 2560×720 pixels,supporting detailed charts and multi parameter parallel display.
Brightness: Standard 500 nits (800 nits optional), PWM dimming support (0-100% flicker free).
Contrast: 1500:1 (typical), 8-bit color depth (16.7M colors), covering 72% NTSC color gamut.
Viewing Angle: 178° IPS wide angle, ΔE<3 color consistency in horizontal/vertical orientation.
This 14.5 inch bar shaped LCD module LVDS Interface Advantages
Transmission Standard: Dual-channel LVDS differential signals (6/8-bit RGB data + clock), supporting 1080p@60Hz video streams.
Anti Interference Design: Built in common mode filtering and differential signal isolation for industrial electromagnetic environments.
Low Power: 1.2V low voltage differential signaling, 30% lower power than single ended interfaces.
This 14.5 inch bar shaped LCD module Mechanical & Structural Design
Compact Layout: Active area 354.82(H)×99.79(V)mm, module thickness 5.51mm (with backlight unit).
Mounting Options: 4×M4 mounting holes + rail clips, VESA 75mm wall mount compatible.
Protection Rating: IP54 front panel dust/water resistance, optional AR anti-reflective glass (93%+ transmittance).
This 14.5 inch bar shaped LCD module Environmental Adaptability
Operating Temp: -20°C~70°C (wide-temp -30°C~85°C optional), 5Hz-500Hz/1.5G vibration resistance.
Lifespan: LED backlight 30,000 hours (L70 standard), zero bright dot guarantee.
This 14.5 inch bar shaped LCD module Smart Expansion Capabilities
Touch Integration: Supports resistive/capacitive touch overlay.
Optical Enhancements: Optional high haze AG glass (75% haze) or anti glare polarizer.
Electrical Specifications

Driver IC: Integrated TCON, supports LVDS v1.2 protocol and I2C auxiliary control.
Power Supply: DC 12V±5%, typical power <12W (full white brightness).
Signal Compatibility: RGB888/666 formats, supports VSYNC/HSYNC signal separation.
Typical Applications

Industrial Control: SCADA system trend graphs, production line status monitoring, CNC parameter screens.
Smart Transportation: Transit guidance info bars, vehicular ADAS status panels, electronic stop displays.
Medical Equipment: Ultrasound sub-screens, patient monitoring waveforms, lab data analysis interfaces.
Digital Signage: Retail navigation systems, stadium scoreboards, meeting room reservation screens.
Quality & Compliance

Certifications: CE/FCC/UL/CB, optional IEC 60529 (IP65), ISO 13485 (medical version).
Reliability: MTBF>50,000 hours, validated through 72-hour temp-humidity cycling tests.
Customization Options

Feature Upgrades: Integrated NFC tags, temperature sensors, or GPIO expansion ports.
Backlight Solutions: Dual-color temperature modes (cool/warm), RGB ambient light sync.
Cover Glass Customization: 3D hot-bent glass, antimicrobial coatings, or chemically strengthened treatments.
Competitive Advantages

Cost Efficiency: 25% lower cost than comparable 2560p products via HDI PCB layout optimization.
Interface Flexibility: LVDS+I2C dual-protocol support, seamless integration with Renesas R-Car, NXP i.MX6 platforms.
Supply Chain Security: Dual-source critical components, 3-year price lock, and spot stock priority.
Technical Support

Dev Kits: Raspberry Pi CM4/NVIDIA Jetson Nano adapter boards with Qt/C# SDK.
Design Services: Thermal simulation, EMI shielding, mechanical vibration testing support.
Warranty: 5-year coverage, first-year free repair + priority spare allocation.
This module redefines bar-type display standards with industrial-grade reliability, balancing LVDS interface and 2560 ultra-wide resolution to deliver efficient solutions for elongated human-machine interfaces.
