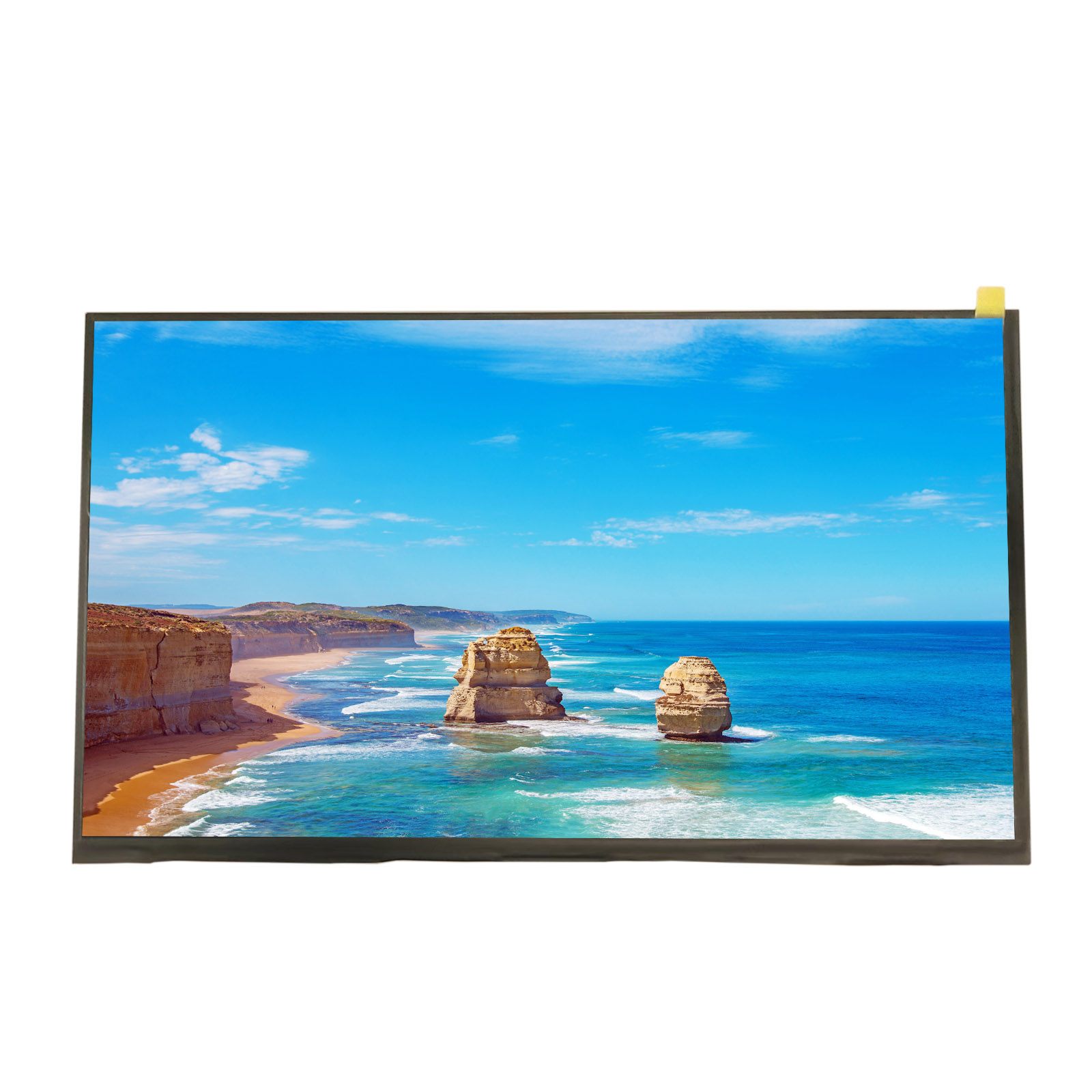

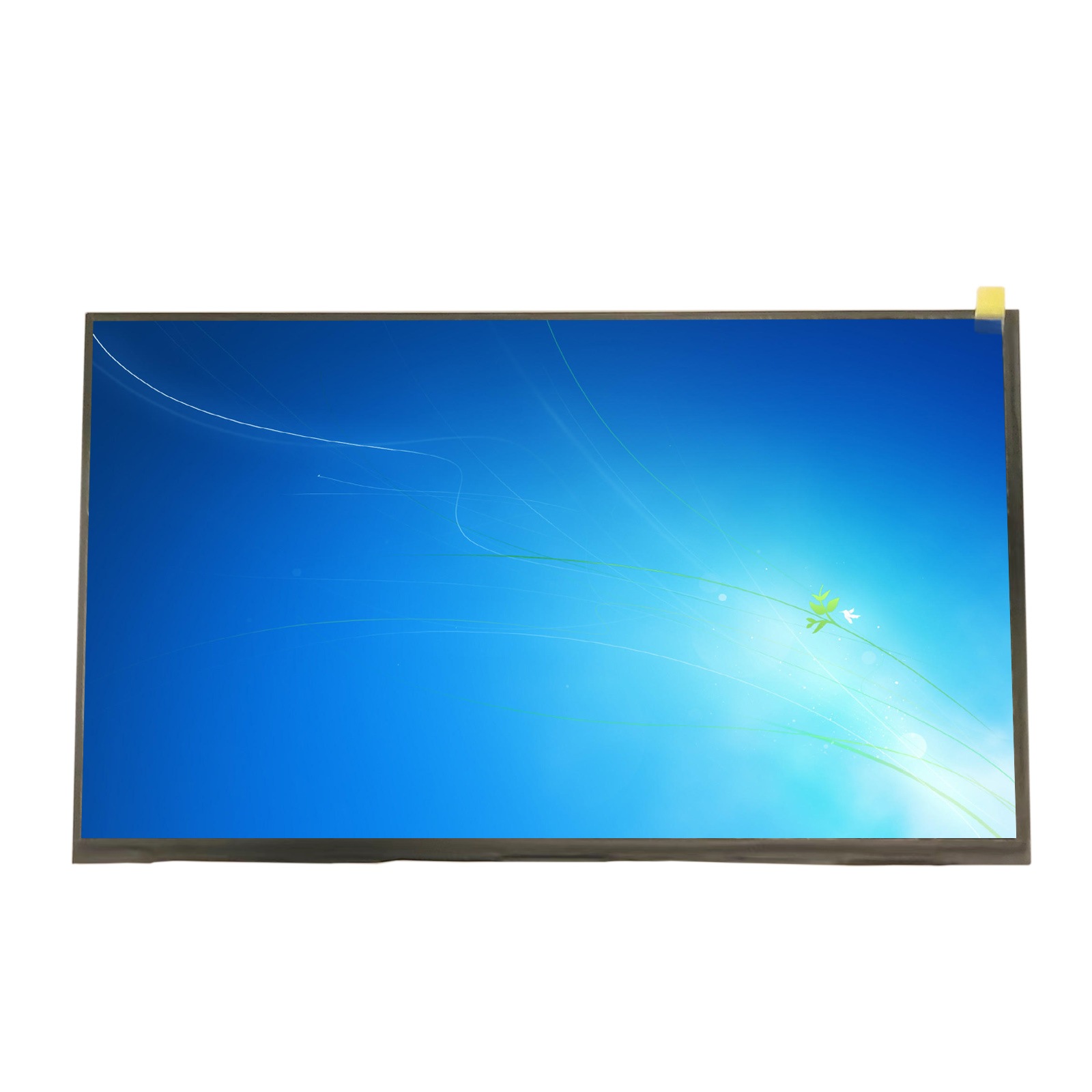

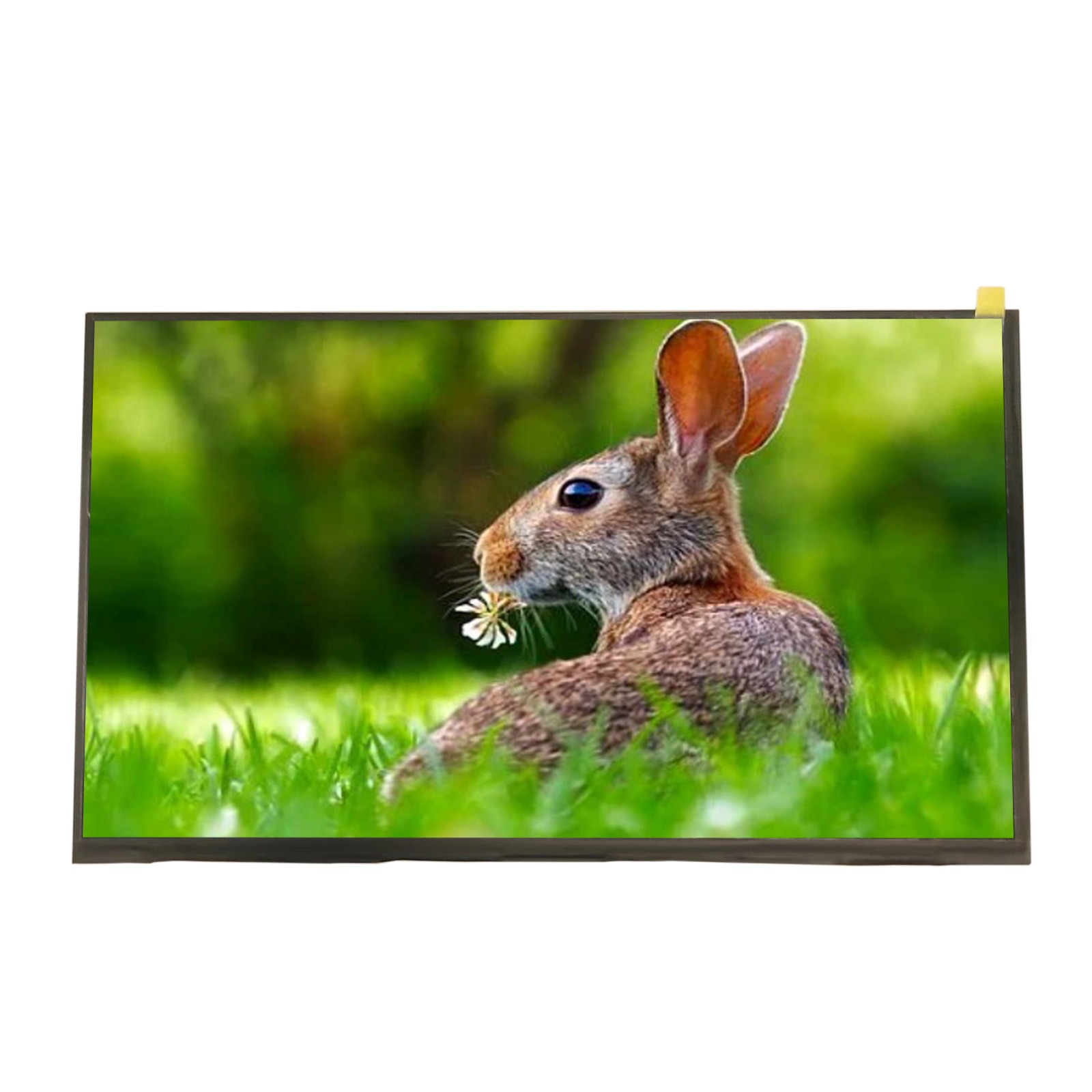

This 14.6-inch Full HD TFT LCD module is designed for applications requiring a balance of large screen real estate, high-definition visuals, and simple integration via a low-pin-count SPI interface. Ideal for embedded systems, industrial HMI panels, portable devices, and IoT applications where low power consumption and ease of use are prioritized.

Key Features

Visual Performance
14.6-inch IPS panel with 1920×1080 resolution (16:9 aspect ratio) for sharp text and vibrant images.
300cd/m² typical brightness and 800:1 contrast ratio, ensuring readability in indoor environments.
Wide 178° viewing angles (horizontal/vertical) for consistent color accuracy across multiple viewers.
SPI Interface Advantages
4-wire SPI interface (SCLK, MOSI, MISO, CS) with minimal pin requirements, simplifying PCB layout.
Supports 8/16-bit color depth configuration via SPI commands.
Low-power operation (1.8V/3.3V logic compatible) for battery-powered or energy-sensitive applications.
Mechanical Design
Ultra-slim profile (3.5mm thickness) with a narrow bezel for modern device integration.

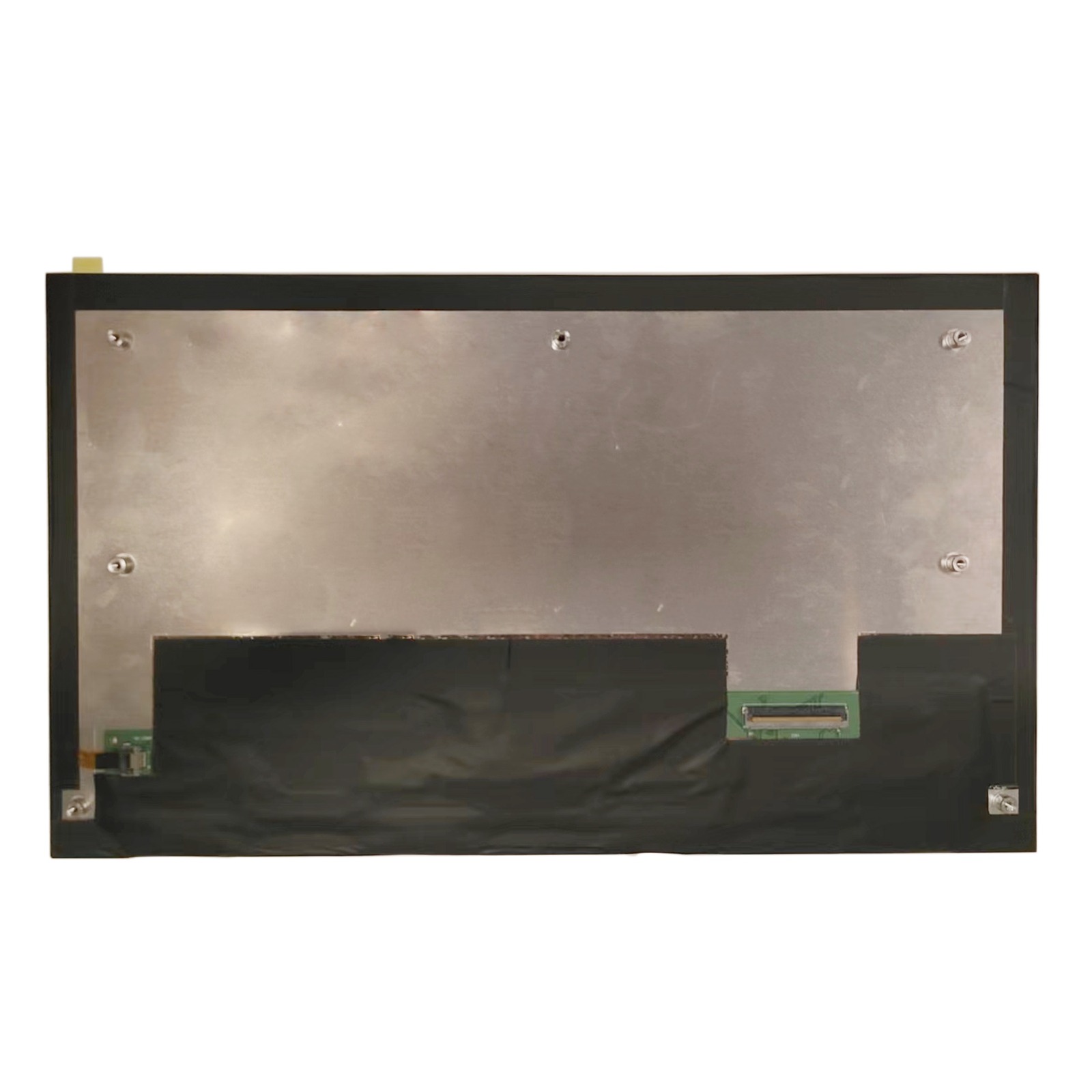

VESA 100mm mounting holes and M3 screw holes for flexible installation.
Active area dimensions: 323.136(H) x 181.764(V).
Enhanced Functionality
On-screen display (OSD) menu for brightness, color temperature, and gamma adjustment.
Optional resistive/capacitive touch overlay (multitouch).
PWM dimming support for dynamic backlight control.
Electrical & Environmental Specifications

Power Supply: DC 12V (input range: 8-20V), typical power consumption <4W.
Operating Temperature: -30°C to 85°C (standard).
Interface: 16-pin FPC connector (0.5mm pitch) with SPI signals and power lines.
Typical Applications

Industrial: PLC control panels, robotics interfaces, IoT gateways.
Medical: Portable diagnostic devices, patient monitoring displays.
Consumer: Smart home hubs, DIY projects (Raspberry Pi/Arduino compatible).
Automotive: Rear-seat entertainment, diagnostic tool screens.
Quality & Compliance

Certifications: CE, FCC, RoHS, REACH; optional ISO13485 (medical) and AEC-Q100 (automotive).
Optional upgrades:
Anti-glare (AG) or anti-fingerprint (AF) coatings.
Optical bonding for enhanced sunlight readability.
Custom EDID/firmware for seamless system integration.
Technical Support & Customization

SDK provided for SPI command configuration, gamma tuning, and touch calibration.
Engineering services: Custom resolution scaling, OSD menu redesign, and interface bridging (e.g., SPI-to-RGB).
System-level integration: Touch controller pairing, EMI shielding, and thermal management solutions.
This 14.6-inch module bridges the gap between compact embedded displays and larger desktop monitors, offering Full HD clarity with the simplicity of SPI connectivity. Its low-power design and flexible customization options make it suitable for both prototyping and mass deployment in diverse industries.
