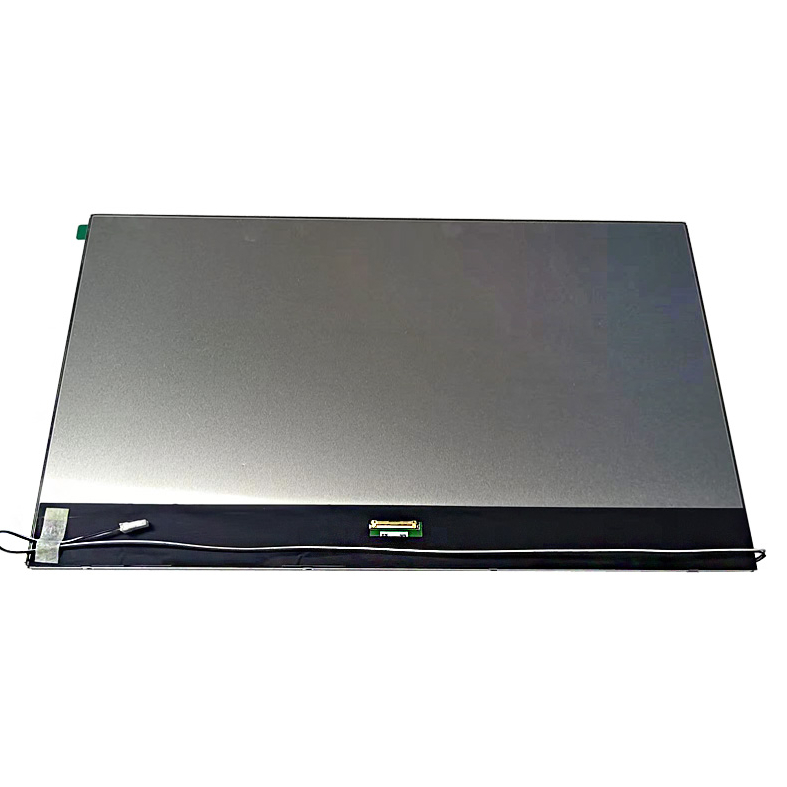

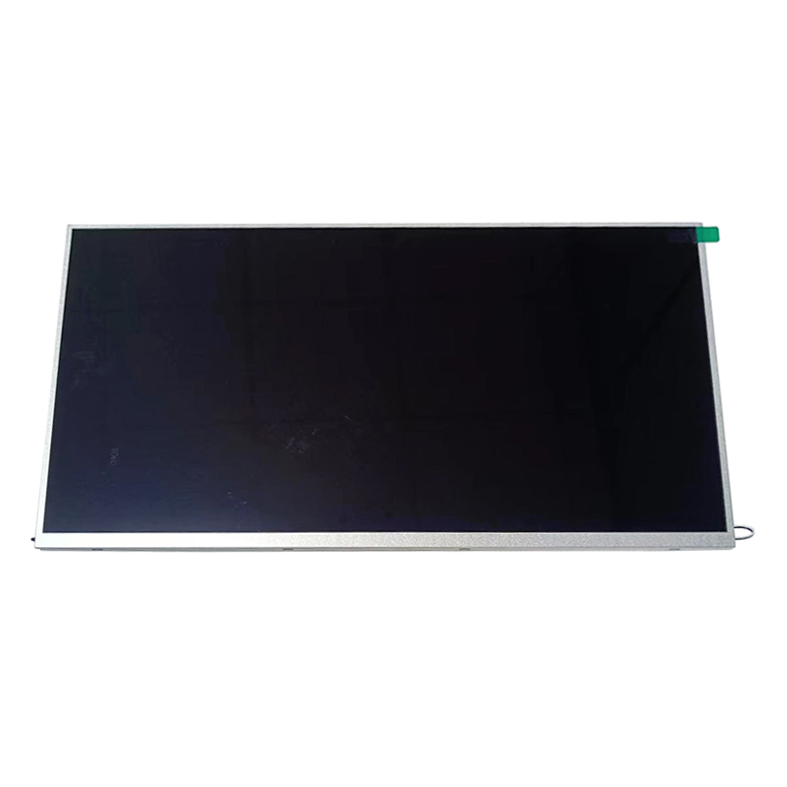

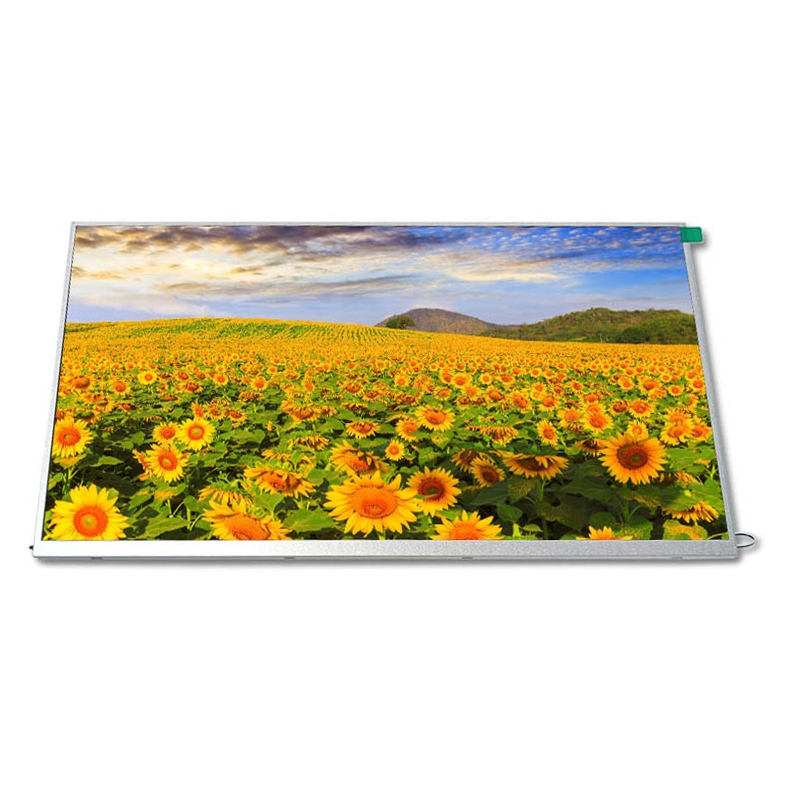

This 14-inch Full HD TFT LCD module is engineered for applications demanding precise imagery and seamless multitasking, including high-end industrial equipment, smart medical devices, in-vehicle monitoring terminals, and digital signage. The eDP (Embedded DisplayPort) interface delivers high-bandwidth, low-latency data transmission, while the 1920×1080 resolution ensures crisp visuals for complex GUI and video applications.

Key Features

This 14-inch Full HD TFT LCD module Superior Visual Experience
14-inch diagonal screen with 1920×1080 Full HD resolution, supporting 16:9 widescreen format.
High-brightness LED backlight (300cd/m² typical) and 1000:1 contrast ratio for vivid color depth.
This 14-inch Full HD TFT LCD module eDP Interface Advantages
Compliant with eDP 1.4 standards, supporting 4-lane configurations with up to 21.6 Gbps bandwidth.
Direct integration with embedded GPUs, enabling multi-display daisy-chaining for simplified system design.
Low-power standby mode (<0.5W) compliant with modern energy efficiency standards.
This 14-inch Full HD TFT LCD module Industrial-Grade Reliability
IPS panel technology with 178° ultra-wide viewing angles (horizontal/vertical) for multi-user collaboration.
Ruggedized metal frame with shock/vibration resistance, compliant with IEC60068-2-6/27 standards.
Extended operating temperature range (-30°C to 80°C) for deployment in extreme environments.
This 14-inch Full HD TFT LCD module Intelligent Display Functions
Supports Adaptive-Sync technology to eliminate screen tearing.
Integrated OSD menu for manual adjustment of brightness, contrast, and color temperature.
Optional ambient light sensor for automatic brightness adjustment.
Mechanical & Electrical Specifications

Physical Dimensions: Active area 308.16(H) x 173.34(V), 14-inch diagonal.
Interface Configuration: 30-pin eDP connector (0.5mm pitch), supporting 1/2/4-lane mode switching.
Mounting Options: VESA 75mm/100mm mounting holes for wall-mount or embedded installation.
Typical Applications

Smart Manufacturing: Industrial robot control panels, AOI inspection displays, MES system terminals.
Automotive: Commercial fleet management terminals, autonomous vehicle testing platform monitors.
Medical Devices: Portable DR image viewers, surgical navigation system integration screens.
Digital Signage: Retail store interactive directories, corporate exhibition information kiosks.
Quality & Compliance

Certified to ISO13485 (medical devices), AEC-Q100 (automotive), and UL/CE/FCC standards.
Configurable options:
Anti-glare (AG) glass overlay (>92% light transmittance)
Integrated capacitive touchscreen (wet-finger/glove-friendly)
Optical bonding service (reduces reflections, enhances sunlight readability)
Technical Support & Customization

Full development documentation: eDP protocol stack, EDID configuration tools, Linux/Android driver samples.
Engineering collaboration: Custom backlight drive solutions, specific gamma correction curve development.
System-level integration: Matching touch controllers, thermal management solutions.
This module combines Full HD clarity with industrial-grade robustness, ideal for embedded systems requiring precision and reliability. Flexible customization services and global compliance certifications enable rapid deployment of high-performance display solutions.
