| Item | Content | Unit | ||
|---|---|---|---|---|
| PanelSize | 3.5 inch(Diagonal) | inch | ||
| Resolution | 1920(RGB)x1080 | |||
| DriverMethod | A-SiTFTactivematrix | – | ||
| ActiveArea | 77.76(W) x 43.74(H) | MM | ||
| DotPitch | 0.063(H)×0.063(V)mm | MM | ||
| PixelArrangement | RGB-stripe | – | ||
| ModuleSize | 87.1(H)×56.8(V)×2.7(D)mm | MM | ||
| DisplayMode | Normally Black | – | ||
| ViewingDirection | ALL | – | ||
| Interface | MIPI | – | ||
| Luminance | 500(TYP) | cd/m² | ||
| operating temperature | -20-+70 ℃ | ℃ | ||
| storage temperature | -30-+80 ℃ | ℃ | ||
Product advantages and uses

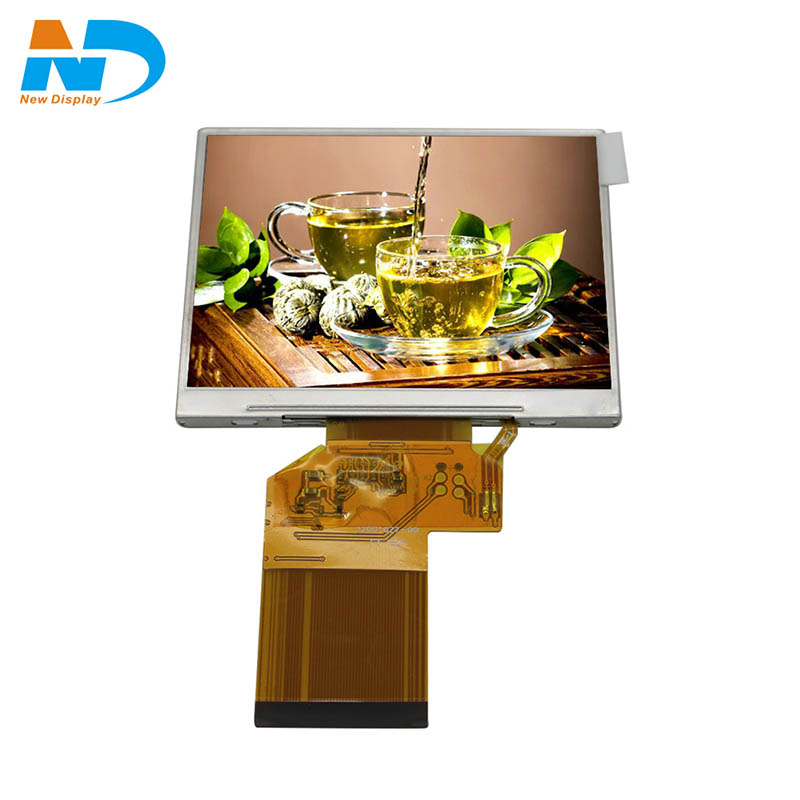

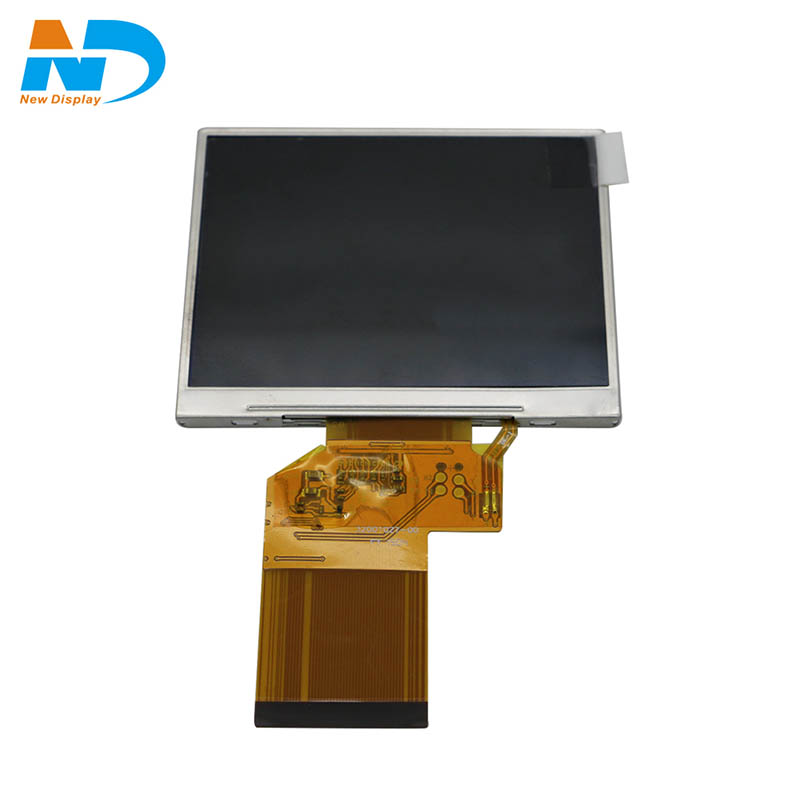

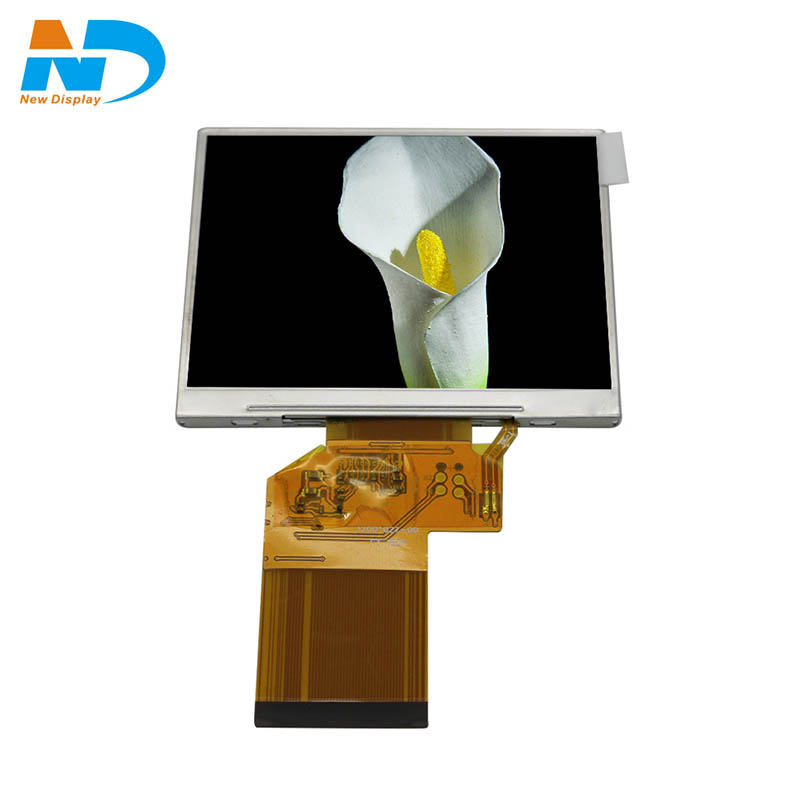

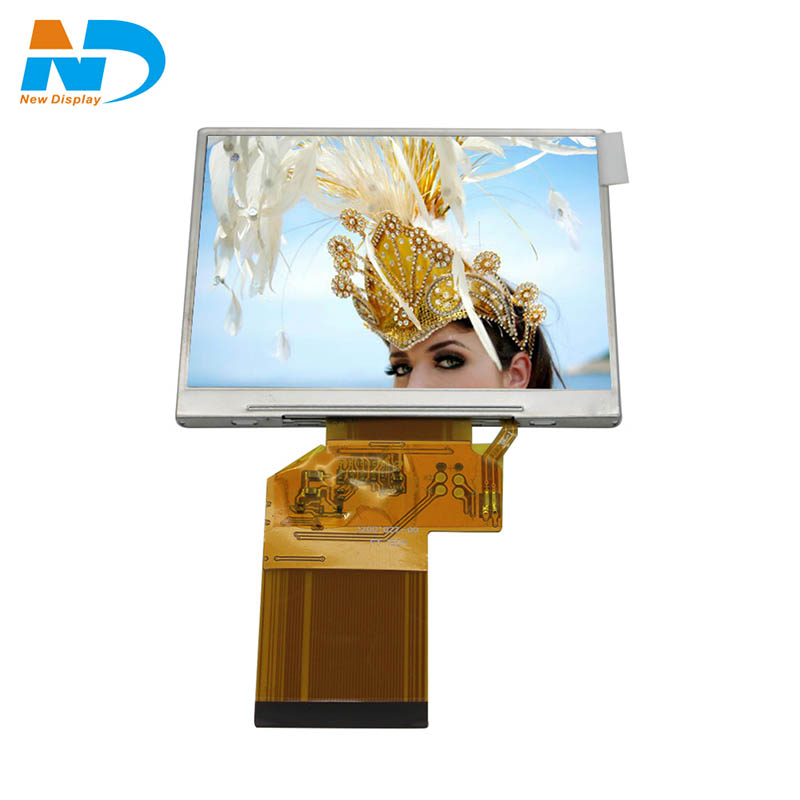

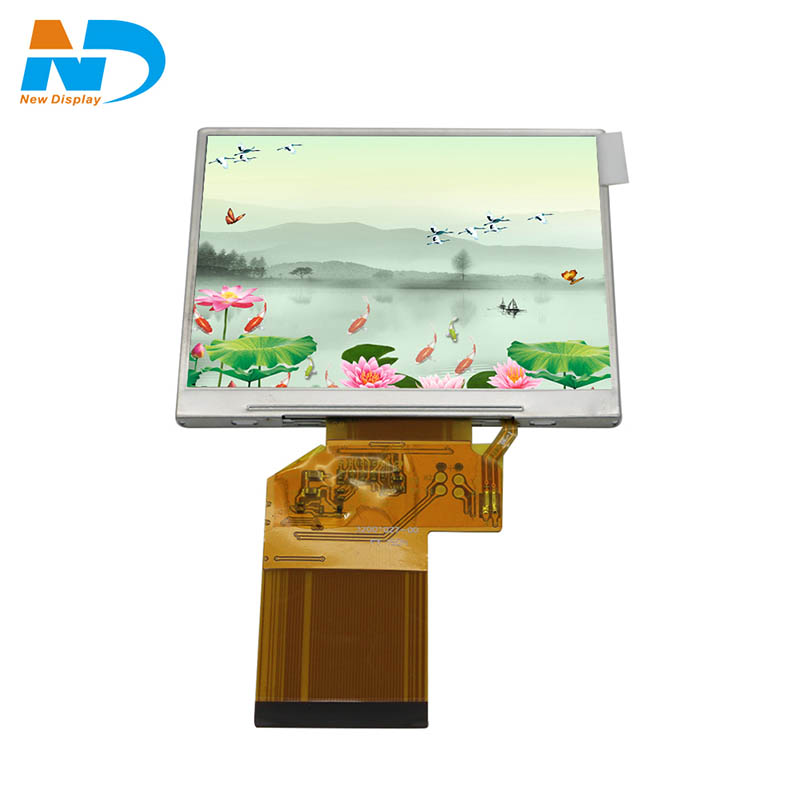

The 3.5-inch (1920×1080) TFT LCD display module is a compact, high-end solution designed for automotive electronics, industrial controls, and professional instruments. Combining 1920×1080 FHD resolution with IPS wide-view technology, it delivers retina-like visuals while leveraging MIPI DSI for efficient high-performance system integration.
1. Key Parameters and Display Performance
Resolution & Size: 1920×1080 FHD resolution with 640 PPI pixel density on a 3.5-inch diagonal screen.
Display Technology: IPS ensures 178° viewing angles, 1500:1 contrast ratio, and 500 cd/m² brightness (optional 1000 cd/m² for outdoor use).
Response Speed: 5-15 ms dynamic response with 60Hz refresh rate for smooth video playback.
2. Interface & Driver Features
MIPI DSI Interface: Supports MIPI DSI 1.3 protocol with 1 Lane at 1.5 Gbps, compatible with high-performance processors.
Flexible Drivers: Integrated GC9306/ILI9881D ICs enable 10-bit color depth (107 million colors) via D-PHY, supporting both Video Mode and Command Mode.
Expansion Options: MIPI-to-RGB/HDMI converters available with full driver support for Linux/Android.
3. Design & Functionality
Compact Build: 2.7 mm thickness and 45g weight for space-constrained devices.
Touch Solutions: Optional capacitive or capacitance touch panel.
Wide Temperature Range: Operates from -20℃ to 70℃ and stores from -30℃ to 80℃.
4. Application Scenarios
Automotive: Infotainment systems, AR-HUDs, and smart rearview mirrors.
Industrial: High-end instrumentation, industrial tablets, and robotic interfaces.
Medical: Portable ultrasound machines, endoscopic imaging, and surgical navigation.
Professional Display: Drone FPV monitors, action camera viewfinders, and premium portable devices.
5. Technical Advantages
High Integration: Built-in backlight driver, Gamma correction, and timing controller reduce external components.
Power Efficiency: PWM dimming and deep sleep mode enable <200mW power consumption.
Customization Options: FPC interface tailoring, anti-glare/anti-fingerprint coatings, and wide-temperature variants available.
- Company Profile
Shenzhen New Display Co., Ltd. (Bao’an District, Shenzhen) specializes in TFT LCD module R&D/production.
Sizes: 1.44” 1.77″ 2.0”2.2″2.4” 2.8″3.0″3 2″3.5″4.3″ 5.0″8″97″10.1″11.6″12.3″13.3″14.6″15.6″17.3″18.4″21.5″and 23.8″ custom industrial sizes.
Applications: Banking, automotive, mobile devices, consumer electronics.
Markets: China, Europe, Americas, Japan.
Factory: Automated lines, R&D team, full divisions (LCM/TP/SMT/FPC/Backlight).
Customization: Backlight, touch panels (Resistive/Capacitive), AD boards (VGA/HDMI), FPC/RGB cables.
Advantages: High brightness (1000nits), HD/IPS, sunlight-readable/transparent/ultra-thin OLED, competitive pricing.
