Product Parameters
| Item | Content | Unit | ||
|---|---|---|---|---|
| Panel Size | 4.3 inch(Diagonal) | inch | ||
| Resolution | 1920×3(RGB)x1080 | |||
| Driver Method | A-Si TFT active matrix | – | ||
| Active Area | 56.7(H)x100.8(V)mm | MM | ||
| Dot Pitch | 0.02875(H)x0.08625(V)mm | MM | ||
| Pixel Arrangement | RGB-stripe | – | ||
| Module Size | 66.01(H)x106.3(V)x2.32(D)mm | MM | ||
| Display Mode | NormallyBlack | – | ||
| Display Color | 16.7M | – | ||
| Viewing Direction | ALL | – | ||
| Interface | MIPI 4L | – | ||
| Weight | TBD | g | ||
| operating temperature | -20-+70 ℃ | ℃ | ||
| storage temperature | -30-+80 ℃ | ℃ |
Product advantages and uses

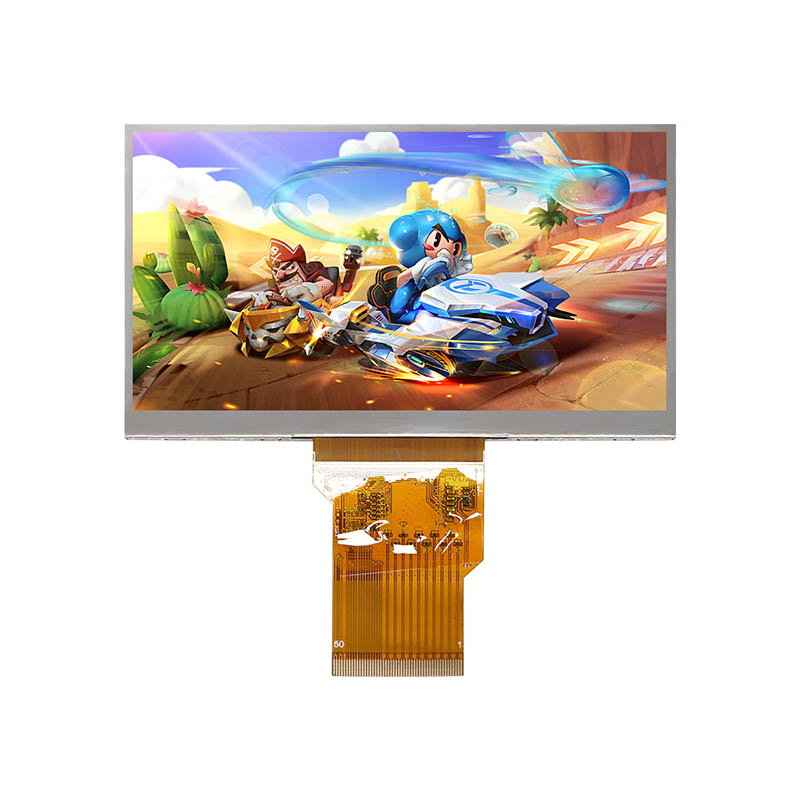

This 4.3-inch TFT LCD display module is engineered for high-resolution display applications, featuring 1920×1080 Full HD resolution and a MIPI DSI interface. Ideal for automotive infotainment, medical devices, industrial controls, and premium consumer electronics, its compact form factor and high integration make it perfect for space-constrained designs.
Key Features
Superior Display Performance:
1920×1080 resolution with 518 PPI for sharp, vivid images.
Supports 16.7 million colors, precise color reproduction, and 1000:1 contrast ratio.
Efficient Data Transmission:
MIPI DSI interface with 4 Lane modes, supporting up to 1.5 Gbps/Lane data rate. Compatible with mainstream SoCs (e.g., Qualcomm Snapdragon, Rockchip RK series).
Reliability & Durability:
Industrial-grade design with an operating temperature range of -20°C to 70°C, shock/vibration resistance, and optional IP65 protection.
Long-life LED backlight for over 50,000 hours of stable operation.
Flexible Touch & Expansion:
Optional capacitive touchs creen (G+G or G+F structure) ro resistance touchs creen.
FPC connector for customizable interfaces (e.g., LVDS, RGB parallel).
Technical Specifications
Display Panel: TFT LCD, IPS wide-viewing-angle technology.
Size: 4.3 inches (diagonal), active area 56.7(H)x100.8(V)mm.
Brightness: 500 nits (standard) / 800 nits (high-brightness optional).
Interface: MIPI 4L.
Touch: Optional capacitive touch (G+G or G+F).
Power Supply: 3.3V logic voltage, 12V backlight drive.
Operating Environment: -20°C to 70°C,storage temperature -30°C to 80°C.
Applications
Automotive navigation and infotainment systems.
Medical diagnostic devices (e.g., ultrasound, endoscopy).
Industrial HMI panels.
Premium security monitoring terminals.
Smart appliance display panels.
Customization Services
Parameter customization for brightness, contrast, touch functionality, etc.
Optional cover glass (AG/AR/AF coatings).
| Size (inch) | Resolution | Display Mode | Outline Dimensions(mm) | Active Area(mm) | LCD interface | brightness |
|---|---|---|---|---|---|---|
| 0.96″ | 80*160 | IPS | 13.5*27.95*1.5 | 10.80*21.70 | SPI4 | 350 |
| 1.3″ | 240*240 | IPS | 26.1*29.22*1.9 | 23.4*23.4 | MCU/SPI/mipi | 500 |
| 320*320 | IPS | 36.12*39.16*1.42 | 33.12*33.12 | MIPI | 500 | |
| 360*360 | IPS | 36.07*34.89*1.46 | 32.94*32.94 | MCU8Bit | 500 | |
| 1.54″ | 240*240 | IPS | 31.52*33.72*2.03 | 27.22*27.72 | MCU8Bit | 500 |
| 320*320 | IPS | 31.52*33.72*1.65 | 27.22*27.72 | MIPI | 800 | |
| 1.77″ | 128*160 | TN | 34.5*46.7*2.5 | 28.03*35.04 | MCU8Bit | 300 |
| 2″ | 176*220 | TN | 41.5*49.1*2.25 | 31.68*39.6 | SPI4Line | 260 |
| 240*320 | TN | 33.24*46.82*1.3 | 30.24*40.32 | RGB18bit | 250 | |
| 480*360 | IPS | 40.96*46.1*2.53 | 30.6*40.8 | MIPI | 400 | |
| 2.4″ | 240*320 | TN | 42.72*59.86*1.95 | 32.72*48.96 | RGB18bit | 600 |
| 240*320 | IPS | 40.44*57*2.15 | 32.72*48.96 | MCU8bit | 750 | |
| 2.8″ | 240*400 | EWV | 42.8*72.3*2.61 | 36.72*61.2 | MCU8bit | 350 |
| 480*640 | IPS | 47.8*68.25*2.15 | 43.2*57.6 | MIPI | 400 | |
| 240*320 | IPS | 47.8*68.25*2.2 | 43.2*57.6 | RGB18bit | 400 | |
| 3″ | 240*400 | EWV | 43.44*75.31*2.35 | 38.88*64.8 | MCU16Bit | 350 |
| 360*640 | IPS | 42.64*74.91*2.45 | 36.72*65.28 | RGB | 400 | |
| 3.2″ | 240*320 | TN | 52.28*73.04*2.2 | 47.88*63.84 | SPI | 260 |
| 240*320 | EWV | 55.04*77.6*2.3 | 48.6*64.8 | MCU16Bit | 300 | |
| 1024*768 | IPS | 70.5*57.7*2.5 | 64.51*48.38 | RGB/MIPI | 500 | |
| 3.5″ | 320*480 | TN/IPS | 54.48*84.71*2.25 | 48.96*73.44 | MIPI/MCU/RGB | 450 |
| 320*240 | IPS/TN | 76.84*63.84*3.27 | 70.08*52.56 | RGB/MCU | 450-900 | |
| 640*480 | IPS | 76.84*63.84*3.27 | 70.08*52.56 | RGB/MIPI | 450-900 | |
| 1024*600 | IPS | 87.1*56.8*2.7 | 77.568*45.45 | RGB/MIPI | 500 | |
| 1920*1080 | IPS | 87.1*56.8*2.7 | 77.76*43.74 | LVDS/MIPI | 500-1000 | |
| 3.95″ | 480*480 | IPS | 74.83*77.68*2.15 | 71.93*71.93 | RGB18BIT | 300 |
| 3.97″ | 480*800 | IPS/TN | 55.5*96.2*2.11 | 51.84*86.4 | RGB/MIPI/MCU | 350 |
| 4″ | 1280*720 | IPS | 93.08* 58.76* 2.71 | 87.94 * 49.46 | LVDS | 1000 |
| 4.3″ | 480*272 | TN | 105.5*67.2*2.9 | 95.04*53.856 | RGB24bit/MCU | 350-1000 |
| 800*480 | IPS | 105.42*67.07*3.14 | 95.04*53.856 | RGB24bit/MCU | 350-1000 | |
| 480*272 | IPS | 105.5*67.2*2.9 | 95.04*53.856 | RGB24bit/MCU | 350-1000 | |
| 1920*1080 | IPS | 106.34 * 99.46 * 2.32 | 100.8 * 56.7 | LVDS/HDMI | 350-2000 | |
| 4.5″ | 480*854 | IPS | 60*109*1.7 | 55.44*98.64 | MIPI/MCU/RGB | 350 |
| 1920*1080 | IPS | 106.34*66.01*2.32 | 100.8*56.7 | LVDS/MIPI/HDMI | 1000-2000 | |
| 720*1280 | IPS | 58.74*130.5*1.98 | 55.51*98.69 | MIPI/LVDS | 350-1000 | |
| 1920*1080 | IPS | 106.34*66.01*2.32 | 100.8*56.7 | LVDS/MIPI/HDMI | 350-2000 | |
| 4.7″ | 720*1280 | IPS | 61.4*112.6*1.6 | 58.1*103.3 | MIPI | 400 |
| 5″ | 800*480 | IPS | 120.7*75.9*2.95 | 108*64.8 | RGB24bit/MCU | 600 |
| 800*480 | EWV | 120.7*75.9*2.95 | 108*64.8 | RGB24bit/MCU | 350 | |
| 640×480 | EWV | |||||
| 720*1280 | IPS | 65.3*119.28*1.64 | 61.56*109.53 | MIPI | 350 | |
| 480*854 | IPS | 66.4*120.05*2.05 | 61.56*109.53 | RGB/mipi | 400 | |
| 1080*1920 | IPS | MIPI | 350-1000 | |||
| 5.2″ | 720*1280 | IPS | 67*122.6*1.5 | 64.8*115.2 | MIPI | 450 |
| 5.5″ | 720*1280 | IPS | 71.3*128.8*1.67 | 68.04*128.96 | MIPI | 350 |
| 1080*1920 | IPS | 71.04*129.57*1.55 | 68.04*128.96 | MIPI | 350-1200 | |
| 5.6″ | 640*480 | TN | 126.5*100*5.7 | 112.89*84.67 | RGB | 350 |
| 5.7″ | 640*480 | IPS | 127*98.43*5.5 | 115*86.4 | RGB | 1000 |
| 6″ | 720*1280 1080*1920 | IPS | 76.84*139.46*2.02 | 77.98*131.52 | MIPI | 350/650/2000 |
| 1920*1080 | IPS | 134*84.5*4.6 | 126.2*70.99 | LVDS | 1000 | |
| 6.5“ | 3840*2060 | IPS | 158.92*82.7*4 | 141.12*79.38 | MIPI | 2000 |
| 7″ | 1024*600 | IPS | 164.8*100*2.8 | 154.08*85.92 | RGB/mipi/LVDS/MCU | 300-1000 |
| 800*480 | EWV | 164.9*100*3.5 | 154.08*85.92 | TTL/MCU | 300-1000 | |
| 800*1280 | IPS | 99.65*160.85*2.4 | 94.2*150.72 | MIPI | 300 | |
| 800*1280 | IPS | 104.3*161.65*2.5 | 93.57*150.05 | LVDS | 300 | |
| 720*1280 | IPS | 91.44*165.91*2.35 | 86.94*154.56 | MIPI | 300 | |
| 1200*1920 | IPS | 98.75*160.85 | 94.50 *151.20 | MIPI | 350-2000 | |
| 1920*1200 | IPS | 98.75*160.85 | 94.50 *151.20 | LVDS | 350-2000 | |
| 8″ | 1024*768 | IPS | 174*136*2.5 | 162.5*121.54 | LVDS | 250 |
| 800*600 | EWV | 182.9*141*5.6 | 162*121.5 | RGB/MCU | 350 | |
| 1024*600 | EWV | 192.8*116.7*6.6 | 176.64*99.36 | RGB/MCU | 450 | |
| 800*1280 | IPS | 114.6*184.1*2.6 | 107.64*172.22 | MIPI | 500-1000 | |
| 1280*800 | IPS | 184.1*114.6*6.4 | 172.22*107.64 | LVDS | 800 | |
| 1280*720 | IPS | 192.8*116.9*4.5 | 176.64*99.36 | LVDS | 350-750 | |
| 1200*1920 | IPS | 114.6*184.1*2.5 | 107.64*172.22 | MIPI | 300-500 | |
| 1920*1200 | IPS | 181.7*119.8*5.5 | 172.2*107.6 | LVDS | 1000 | |
| 8.4″ | 1600*2560 | IPS | 118.68*192.15*1.92 | 113.28*181.248 | MIPI | 280 |
| 9″ | 800*480 | EWV | 210.7*126.5*5.2 | 198*111.696 | RGB/MCU | 300 |
| 720*1280 | IPS | 126.6*210.8*5.0 | 114.048*196.608 | MIPI | 400 | |
| 1280*720 | IPS | 210.7*112.65*5.1 | 198.91*111.89 | LVDS | 350-600 | |
| 9.7″ | 1024*768 | IPS | 210.2*164.2*5 | 196.61*147.46 | LVDS/HDMI | 350-600 |
| 10.1″ | 1280*800 | IPS | 229.46*149.1*2.6 | 216.96*135.6 | LVDS | 350-1000 |
| 720*1280 | IPS | 143.1*235.1*4.5 | 125.28*222.72 | MIPI | 400 | |
| 800*1280 | IPS | 143.06*228.66*4.00 | 135.36*216.58 | MIPI | 300 | |
| 1024*600 | IPS | 235*143*2.9 | 222.72*125.28 | TTL/lvds/MCU | 300/1000 | |
| 1920*1080 | IPS | 235.1*142.5*4.5 | 223.5*125.72 | LVDS | 1000 | |
| 1920*1200 | IPS | 229.25*149.05*2.6 | 216.8064*135.504 | LVDS/mipi | 350-1000 | |
| 1920*1200 | IPS | 231.0*154.5*5.4 | 217.6*135.85 | LVDS | 500-1000 | |
| 1200*1920 | IPS | 143*228.55*2.7 | 135.36*216.576 | MIPI | 350/1000 |
- Company Profile
Shenzhen New Display Co., Ltd. (Bao’an District, Shenzhen) specializes in TFT LCD module R&D/production.
Sizes: 1.44” 1.77″ 2.0”2.2″2.4” 2.8″3.0″3 2″3.5″4.3″ 5.0″8″97″10.1″11.6″12.3″13.3″14.6″15.6″17.3″18.4″21.5″and 23.8″ custom industrial sizes.
Applications: Banking, automotive, mobile devices, consumer electronics.
Markets: China, Europe, Americas, Japan.
Factory: Automated lines, R&D team, full divisions (LCM/TP/SMT/FPC/Backlight).
Customization: Backlight, touch panels (Resistive/Capacitive), AD boards (VGA/HDMI), FPC/RGB cables.
Advantages: High brightness (1000nits), HD/IPS, sunlight-readable/transparent/ultra-thin OLED, competitive pricing.
OUR CERTIFICATE
Looking for your inquiry of this （4.3 inch (1920×1080) resolution TFT LCD display modules with MlPl interface）
