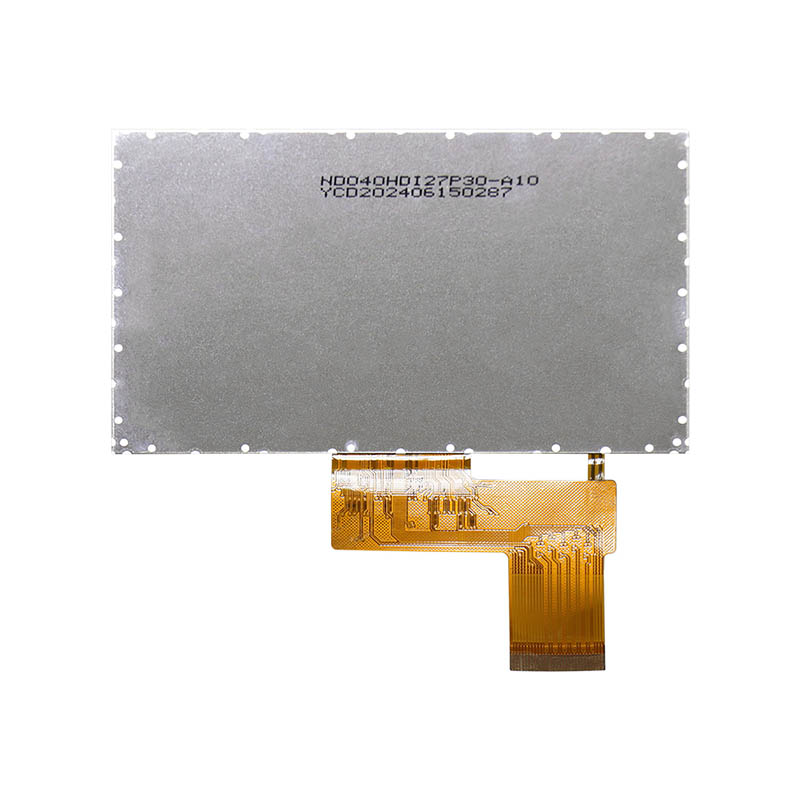

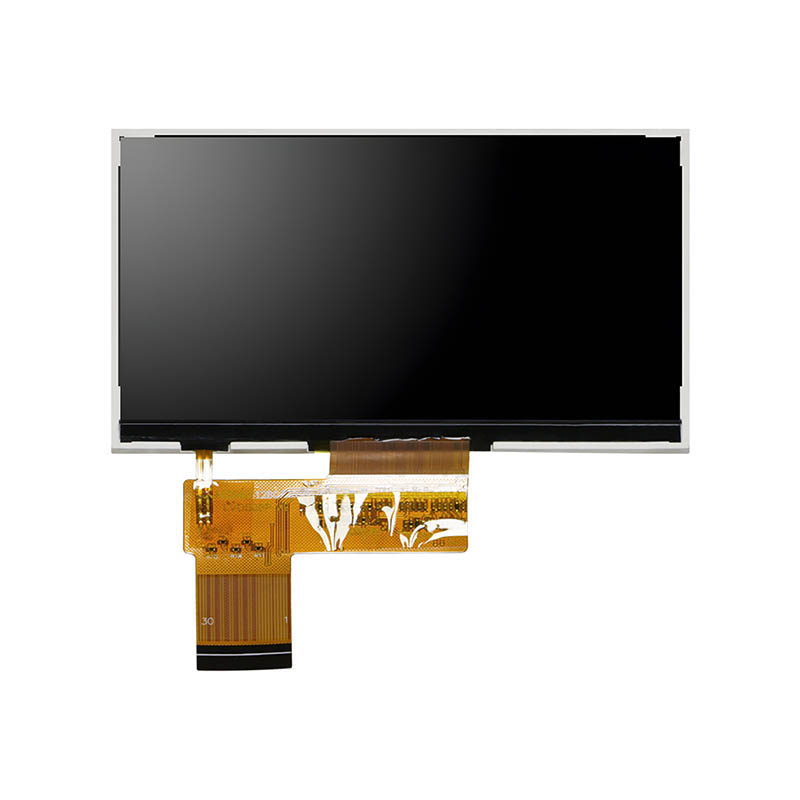

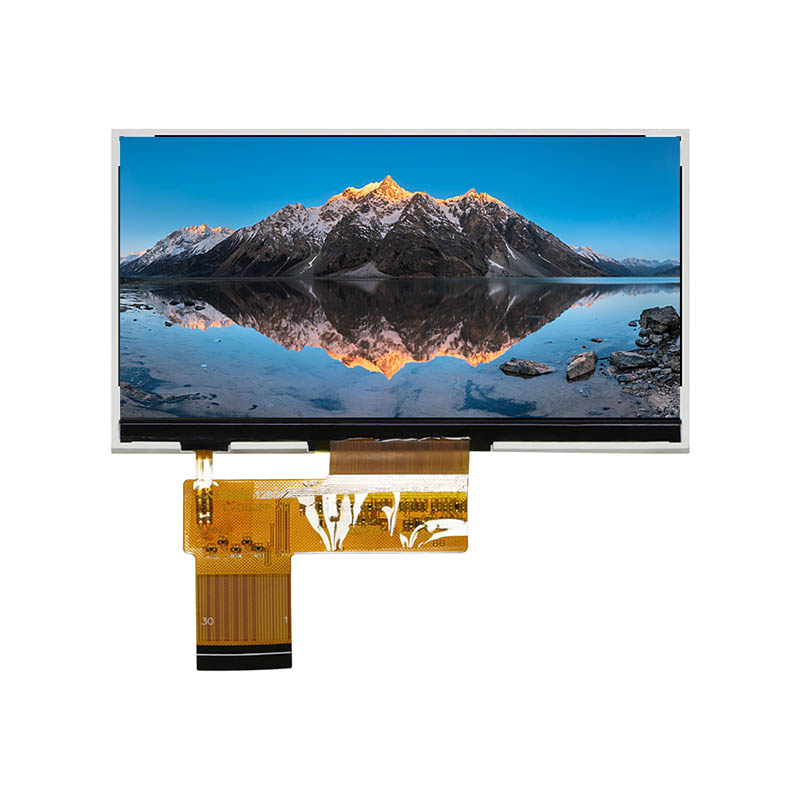

Product Parameters
| Item | Content | Unit | ||
|---|---|---|---|---|
| PanelSize | 4 inch(Diagonal) | inch | ||
| Resolution | 1280(RGB)x720 | |||
| DriverMethod | A-SiTFTactivematrix | – | ||
| ActiveArea | 87.94(W) * 49.46(H) mm | MM | ||
| DotPitch | 0.0229 (H) * 0.0687 (V) mm | MM | ||
| PixelArrangement | RGB-stripe | – | ||
| ModuleSize | 93.08(W) * 58.76(H) * 2.71(T) mm | MM | ||
| DisplayMode | Normally Black | – | ||
| ViewingDirection | ALL | – | ||
| Interface | MIPI | – | ||
| Luminance | 300(TYP) | cd/m² | ||
| operating temperature | -20-+70 ℃ | ℃ | ||
| storage temperature | -30-+80 ℃ | ℃ |
Product advantages and uses
Key Specifications Size: 4-inch diagonal, 16:9 aspect ratio Resolution: 1280×720 (HD), ~367 PPI Technology: TFT LCD with 250-400 cd/m² brightness, 800:1 contrast ratio Color: 16.7M colors (8-bit RGB), ~65% NTSC gamut Interface & Compatibility Interface: LVDS (Low-Voltage Differential Signaling), single-channel support Advantages: High EMI immunity, ideal for industrial environments and long-distance transmission Compatibility: FPGA/ARM controllers (e.g., NXP, TI, Renesas) and universal LVDS drivers Core Features Refresh Rate: 60Hz flicker-free display Response Time: ≤15ms (gray-to-gray) Viewing Angle: IPS/FFS technology with ≥170° horizontal/vertical angles Backlight: LED edge-lit, >50,000 hours lifespan TFT LCD modules Applications Industrial: HMI panels, automation equipment Medical: Portable monitors, diagnostic tools Automotive: Rearview mirror displays, compact infotainment systems Consumer Electronics: Smart home controls, handheld terminals Optional Features Resistive/Capacitive touch panel (multi-touch support)
- Company Profile
Shenzhen New Display Co., Ltd. (Bao’an District, Shenzhen) specializes in TFT LCD module R&D/production.
Sizes: 1.44” 1.77″ 2.0”2.2″2.4” 2.8″3.0″3 2″3.5″4.3″ 5.0″8″97″10.1″11.6″12.3″13.3″14.6″15.6″17.3″18.4″21.5″and 23.8″ custom industrial sizes.
Applications: Banking, automotive, mobile devices, consumer electronics.
Markets: China, Europe, Americas, Japan.
Factory: Automated lines, R&D team, full divisions (LCM/TP/SMT/FPC/Backlight).
Customization: Backlight, touch panels (Resistive/Capacitive), AD boards (VGA/HDMI), FPC/RGB cables.
Advantages: High brightness (1000nits), HD/IPS, sunlight-readable/transparent/ultra-thin OLED, competitive pricing.
OUR CERTIFICATE
Looking for your inquiry of this （4 inch(1280×720)resolution TFT LCD display modules with lvds interface）
