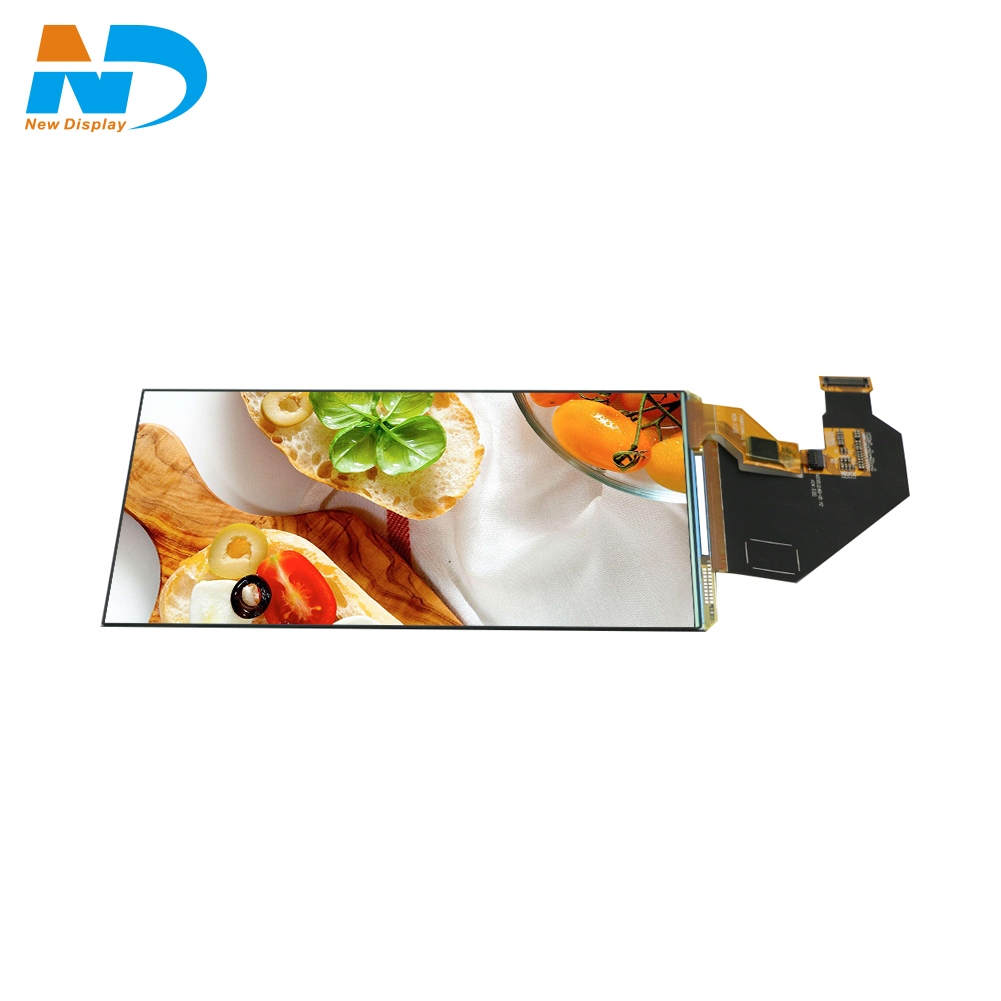

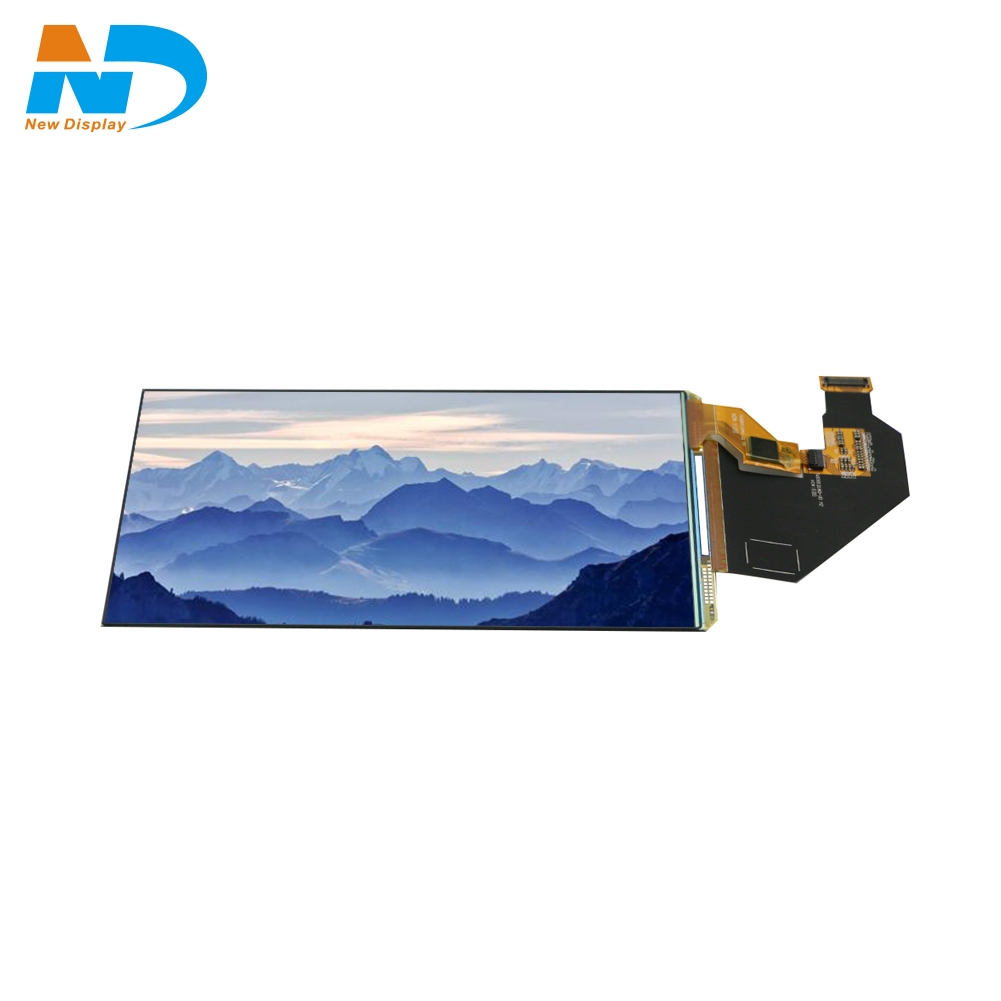

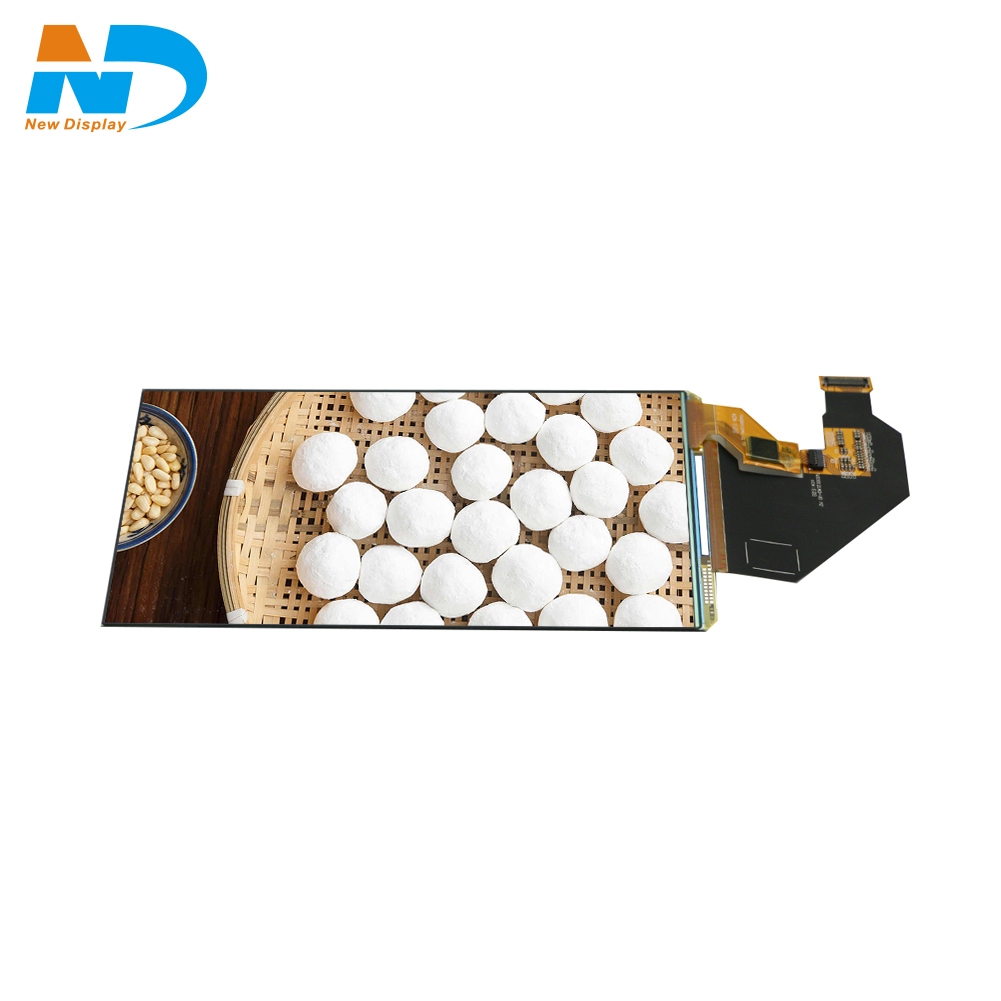

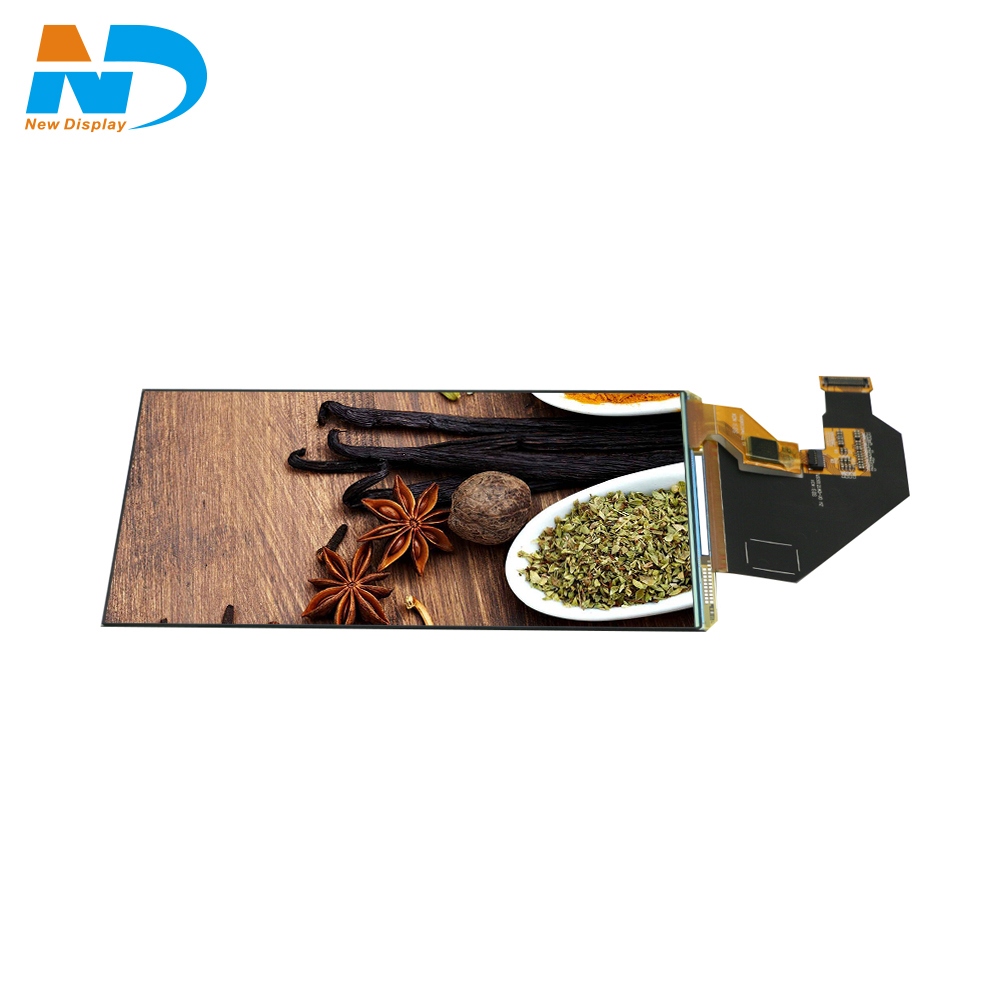

This 5.5 inch Full HD AMOLED display module is engineered for high performance devices requiring vivid colors, deep contrasts, and ultra fast data transmission. Featuring a 1080×1920 resolution and MIPI DSI interface, it delivers stunning visuals with minimal power consumption, making it ideal for premium smartphones, tablets, automotive dashboards, and AR/VR headsets. The self-emissive AMOLED technology ensures true blacks, infinite contrast ratios, and ultra-wide viewing angles for immersive user experiences.
Key Features
This 5.5 inch Full HD AMOLED display module Brilliant Visual Performance
1080×1920 FHD Resolution: 401PPI pixel density for razor sharp text and imagery.
AMOLED Advantages: Perfect blacks, 100,000:1 contrast ratio, and 110% DCI-P3 wide color gamut.
High Brightness: 450cd/m² (peak 495cd/m²) with HDR10 support for dynamic range.
This 5.5 inch Full HD AMOLED display module MIPI DSI Interface
4 Lane MIPI DSI: Supports up to 1.5 Gbps/lane for 4K video streaming and smooth 60/120Hz refresh rates.
Low-Power Design: Differential signaling reduces EMI and power draw compared to parallel interfaces.
Flexible Configuration: Command mode (CMD) or video mode (VID) operation.
This 5.5 inch Full HD AMOLED display module Sleek Form Factor
Ultra-Thin Design: Module thickness <2.2mm, enabling slim device profiles.
Bezel-Less Aesthetic: Minimalist frame for maximized active display area.
This 5.5 inch Full HD AMOLED display module Enhanced Durability
Hardened Cover Glass: Optional Corning® Gorilla® Glass 5 for scratch resistance.
Wide Temperature Range: Operational from -20°C to 70°C (storage: -30°C to 80°C).
This 5.5 inch Full HD AMOLED display module Smart Power Management
Dynamic Brightness Adjustment: Ambient light sensor integration for optimized power use.
Deep Sleep Mode: <1mA standby current for extended battery life in mobile devices.
Typical Applications
Mobile Devices: Flagship smartphones, phablets, gaming handhelds.
Automotive: Digital instrument clusters, infotainment systems.
AR/VR: Head-mounted displays requiring low persistence and high frame rates.
Industrial: Portable monitors, medical imaging equipment.
Development Support
Software Tools: SDKs for Android/Linux, MIPI DSI configuration utilities.
Reference Designs: PCB layout guidelines, thermal management solutions.
Customization: Firmware tailoring, gamma curve adjustment, touch overlay options (capacitive/on-cell).
Mechanical & Optical Enhancements
Anti-Reflection (AR) Coating: Reduces glare for outdoor usability.
Optical Bonding: Full-lamination option for enhanced shock resistance and readability.
Integrated Sensors: Optional proximity/ambient light sensors for auto-brightness.
Packaging & Compliance
FPC Connector: 0.5mm pitch, 39-pin (MIPI + control signals).
Reliability: MTBF >50,000 hours, AMOLED lifespan >30,000 hours (half brightness).
Competitive Advantages:
This module combines FHD clarity, AMOLED deep blacks, and MIPI DSI efficiency to enable power-optimized devices with cinema-grade visuals. Ideal for applications demanding both high-speed data handling and premium display quality.
