Product Parameters
| Item | Content | Unit | ||
|---|---|---|---|---|
| PanelSize | 5.5 inch(Diagonal) | inch | ||
| Resolution | 1080×1920 | dots | ||
| Pixel size | 28.65(H) x 85.95(V) | MM | ||
| ActiveArea | 68.04(H) x 120.96(V) | MM | ||
| DotPitch | 0.053(W)×0.159(H) mm | MM | ||
| PixelArrangement | RGB-stripe | – | ||

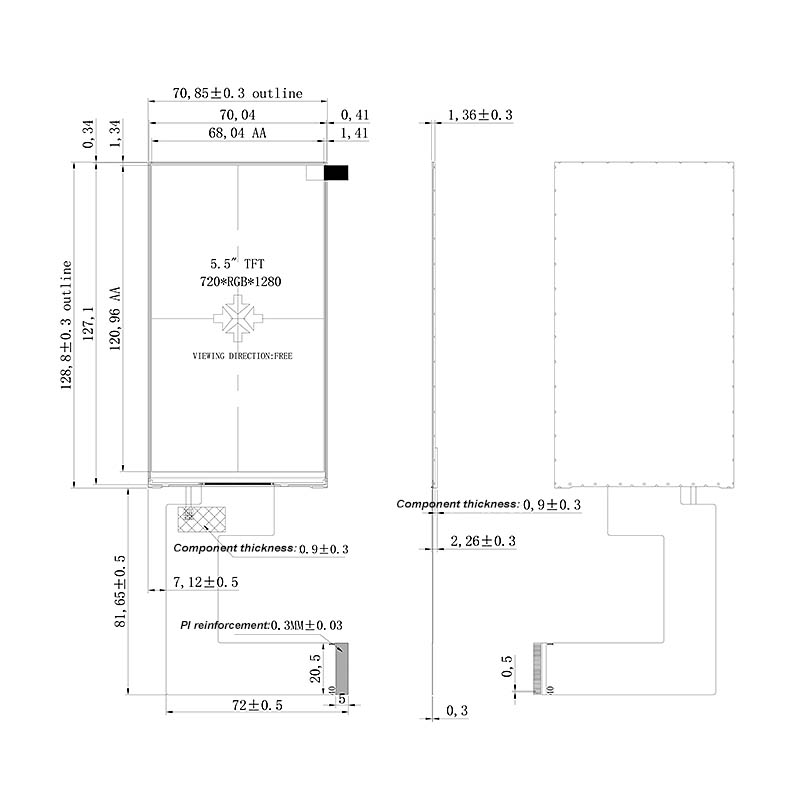

| ModuleSize | 70.85(H) x 128.8(V) x1.36(T) | MM | ||
| ViewingDirection | ALL | – | ||
| Interface | MIPI | – | ||
| Luminance | 250(TYP) | cd/m² | ||
| operating temperature | -20-+70 ℃ | ℃ | ||
| storage temperature | -30-+80 ℃ | ℃ |
Product advantages and uses

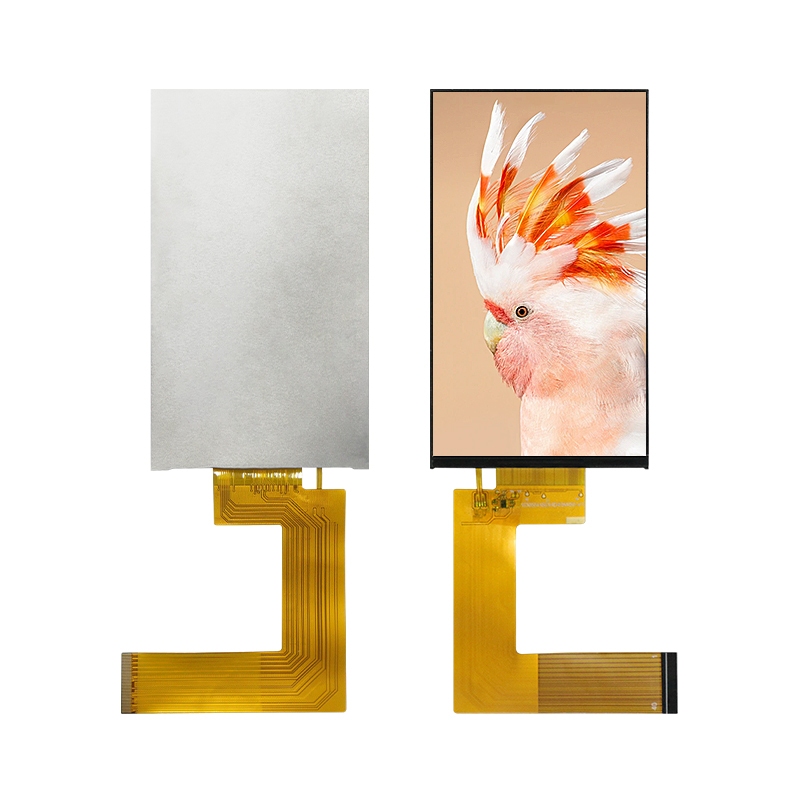

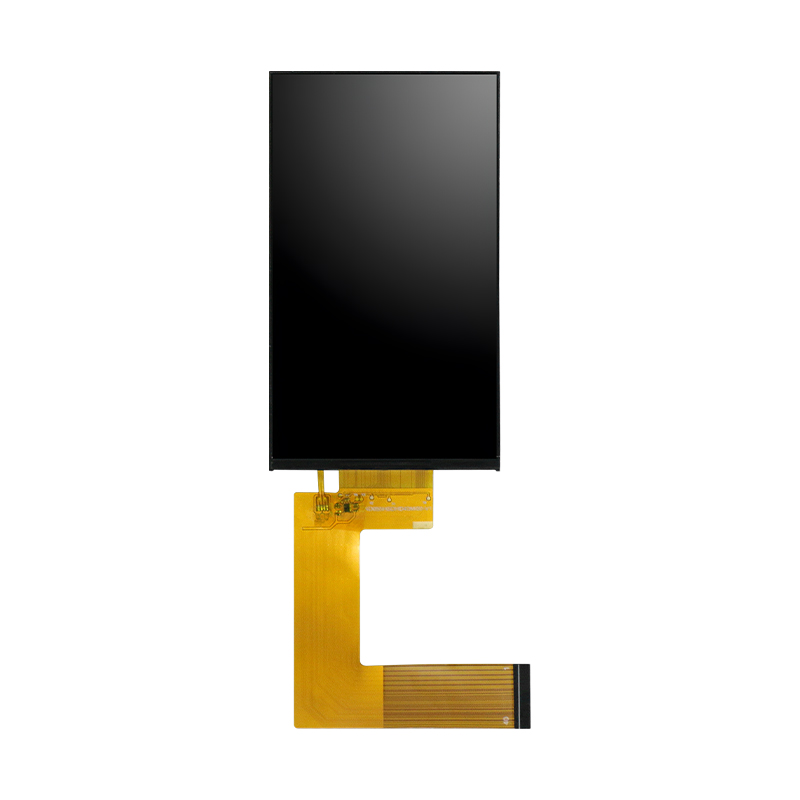

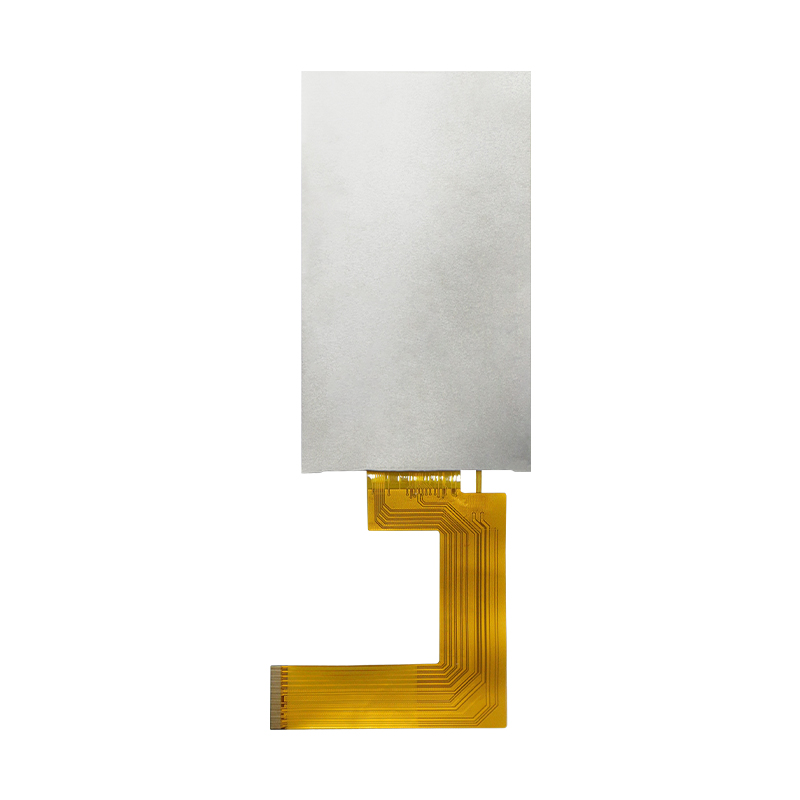

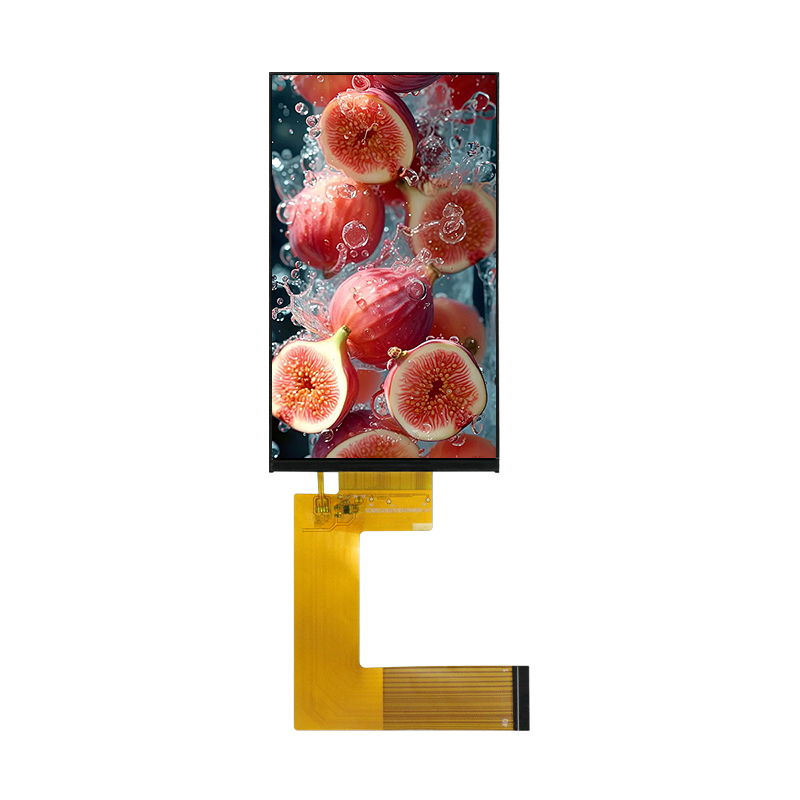

This 5.5-inch TFT LCD module features a 1080×1920 (FHD+) resolution and MIPI DSI interface, designed for premium mobile devices, smart terminals, and industrial applications. With ultra-high clarity, low power consumption, and high-speed data transmission, it delivers exceptional color gamut and refresh rates for scenarios demanding superior visual performance.
Key Features
Ultra-HD Display
5.5-inch diagonal size with 1080×1920 resolution (400 PPI), offering razor-sharp details.
16.7M colors (RGB 8:8:8), 85% NTSC color gamut for vivid and lifelike visuals.
MIPI DSI Interface
Compliant with MIPI DSI protocol, supporting up to 6Gbps data rate and mainstream processors (e.g., Qualcomm, MediaTek).
Dynamic refresh rate adjustment (30Hz-60Hz) to optimize power efficiency.
Wide Viewing Angle & High Brightness
IPS technology enables 85°(H)/85°(V) viewing angles without color shift.
Brightness: 300-800 cd/m² (optional), ensuring readability under direct sunlight.
Slim & Robust Design
Ultra-thin profile: 2.8mm thickness, ideal for compact devices.
Operating temperature: -20℃~70℃, with vibration and dust resistance.
Intelligent Dimming
PWM dimming and dynamic backlight control to reduce flicker and power consumption.
Optional ambient light sensor integration for auto-brightness adjustment.
Customizable Options
Capacitive touchscreen (10-point multitouch, I2C/SPI interface).
Custom-shaped cuts (rounded corners, notches) for flexible design adaptation.
High Resolution: The TFT LCD display modules (1080×1920) resolution ensures clear and detailed display of images and text, making it suitable for a wide range of applications requiring high-definition displays, such as industrial control, medical devices, and smart home systems.
Wide Viewing Angle:The 5.5 inch(1080×1920)resolution TFT LCD display modules ,provides a broad viewing angle range, ensuring excellent visual effects from various angles and meeting the needs of multiple viewers simultaneously.
Fast Response: The 5.5 inch(1080×1920) resolution TFT LCD display modules With a rapid response time, it effectively reduces image ghosting and blurring, making it ideal for displaying dynamic images such as video playback and game interfaces.
Low Power Consumption:The 5.5 inch(1080×1920) resolution TFT LCD display modules utilizes advanced energy-saving technology to reduce power consumption while maintaining excellent display performance, extending device usage time and making it particularly suitable for portable devices with strict power requirements.
Easy to Drive: The 5.5 inch(1080×1920)resolution TFT LCD display modules MIPI interface, coupled with detailed driver development documentation and sample code, enables developers to quickly get started and shorten product development cycles.
Applications
Premium smartphones/tablets.
VR/AR headsets.
Industrial handheld terminals.
Drone FPV displays.
Smart vehicle infotainment systems.
| Size (inch) | Resolution | Display Mode | Outline Dimensions(mm) | Active Area(mm) | LCD interface | brightness |
|---|---|---|---|---|---|---|
| 0.96″ | 80*160 | IPS | 13.5*27.95*1.5 | 10.80*21.70 | SPI4 | 350 |
| 1.3″ | 240*240 | IPS | 26.1*29.22*1.9 | 23.4*23.4 | MCU/SPI/mipi | 500 |
| 320*320 | IPS | 36.12*39.16*1.42 | 33.12*33.12 | MIPI | 500 | |
| 360*360 | IPS | 36.07*34.89*1.46 | 32.94*32.94 | MCU8Bit | 500 | |
| 1.54″ | 240*240 | IPS | 31.52*33.72*2.03 | 27.22*27.72 | MCU8Bit | 500 |
| 320*320 | IPS | 31.52*33.72*1.65 | 27.22*27.72 | MIPI | 800 | |
| 1.77″ | 128*160 | TN | 34.5*46.7*2.5 | 28.03*35.04 | MCU8Bit | 300 |
| 2″ | 176*220 | TN | 41.5*49.1*2.25 | 31.68*39.6 | SPI4Line | 260 |
| 240*320 | TN | 33.24*46.82*1.3 | 30.24*40.32 | RGB18bit | 250 | |
| 480*360 | IPS | 40.96*46.1*2.53 | 30.6*40.8 | MIPI | 400 | |
| 2.4″ | 240*320 | TN | 42.72*59.86*1.95 | 32.72*48.96 | RGB18bit | 600 |
| 240*320 | IPS | 40.44*57*2.15 | 32.72*48.96 | MCU8bit | 750 | |
| 2.8″ | 240*400 | EWV | 42.8*72.3*2.61 | 36.72*61.2 | MCU8bit | 350 |
| 480*640 | IPS | 47.8*68.25*2.15 | 43.2*57.6 | MIPI | 400 | |
| 240*320 | IPS | 47.8*68.25*2.2 | 43.2*57.6 | RGB18bit | 400 | |
| 3″ | 240*400 | EWV | 43.44*75.31*2.35 | 38.88*64.8 | MCU16Bit | 350 |
| 360*640 | IPS | 42.64*74.91*2.45 | 36.72*65.28 | RGB | 400 | |
| 3.2″ | 240*320 | TN | 52.28*73.04*2.2 | 47.88*63.84 | SPI | 260 |
| 240*320 | EWV | 55.04*77.6*2.3 | 48.6*64.8 | MCU16Bit | 300 | |
| 1024*768 | IPS | 70.5*57.7*2.5 | 64.51*48.38 | RGB/MIPI | 500 | |
| 3.5″ | 320*480 | TN/IPS | 54.48*84.71*2.25 | 48.96*73.44 | MIPI/MCU/RGB | 450 |
| 320*240 | IPS/TN | 76.84*63.84*3.27 | 70.08*52.56 | RGB/MCU | 450-900 | |
| 640*480 | IPS | 76.84*63.84*3.27 | 70.08*52.56 | RGB/MIPI | 450-900 | |
| 1024*600 | IPS | 87.1*56.8*2.7 | 77.568*45.45 | RGB/MIPI | 500 | |
| 1920*1080 | IPS | 87.1*56.8*2.7 | 77.76*43.74 | LVDS/MIPI | 500-1000 | |
| 3.95″ | 480*480 | IPS | 74.83*77.68*2.15 | 71.93*71.93 | RGB18BIT | 300 |
| 3.97″ | 480*800 | IPS/TN | 55.5*96.2*2.11 | 51.84*86.4 | RGB/MIPI/MCU | 350 |
| 4″ | 1280*720 | IPS | 93.08* 58.76* 2.71 | 87.94 * 49.46 | LVDS | 1000 |
| 4.3″ | 480*272 | TN | 105.5*67.2*2.9 | 95.04*53.856 | RGB24bit/MCU | 350-1000 |
| 800*480 | IPS | 105.42*67.07*3.14 | 95.04*53.856 | RGB24bit/MCU | 350-1000 | |
| 480*272 | IPS | 105.5*67.2*2.9 | 95.04*53.856 | RGB24bit/MCU | 350-1000 | |
| 1920*1080 | IPS | 106.34 * 99.46 * 2.32 | 100.8 * 56.7 | LVDS/HDMI | 350-2000 | |
| 4.5″ | 480*854 | IPS | 60*109*1.7 | 55.44*98.64 | MIPI/MCU/RGB | 350 |
| 1920*1080 | IPS | 106.34*66.01*2.32 | 100.8*56.7 | LVDS/MIPI/HDMI | 1000-2000 | |
| 720*1280 | IPS | 58.74*130.5*1.98 | 55.51*98.69 | MIPI/LVDS | 350-1000 | |
| 1920*1080 | IPS | 106.34*66.01*2.32 | 100.8*56.7 | LVDS/MIPI/HDMI | 350-2000 | |
| 4.7″ | 720*1280 | IPS | 61.4*112.6*1.6 | 58.1*103.3 | MIPI | 400 |
| 5″ | 800*480 | IPS | 120.7*75.9*2.95 | 108*64.8 | RGB24bit/MCU | 600 |
| 800*480 | EWV | 120.7*75.9*2.95 | 108*64.8 | RGB24bit/MCU | 350 | |
| 640×480 | EWV | |||||
| 720*1280 | IPS | 65.3*119.28*1.64 | 61.56*109.53 | MIPI | 350 | |
| 480*854 | IPS | 66.4*120.05*2.05 | 61.56*109.53 | RGB/mipi | 400 | |
| 1080*1920 | IPS | MIPI | 350-1000 | |||
| 5.2″ | 720*1280 | IPS | 67*122.6*1.5 | 64.8*115.2 | MIPI | 450 |
| 5.5″ | 720*1280 | IPS | 71.3*128.8*1.67 | 68.04*128.96 | MIPI | 350 |
| 1080*1920 | IPS | 71.04*129.57*1.55 | 68.04*128.96 | MIPI | 350-1200 | |
| 5.6″ | 640*480 | TN | 126.5*100*5.7 | 112.89*84.67 | RGB | 350 |
| 5.7″ | 640*480 | IPS | 127*98.43*5.5 | 115*86.4 | RGB | 1000 |
| 6″ | 720*1280 1080*1920 | IPS | 76.84*139.46*2.02 | 77.98*131.52 | MIPI | 350/650/2000 |
| 1920*1080 | IPS | 134*84.5*4.6 | 126.2*70.99 | LVDS | 1000 | |
| 6.5“ | 3840*2060 | IPS | 158.92*82.7*4 | 141.12*79.38 | MIPI | 2000 |
| 7″ | 1024*600 | IPS | 164.8*100*2.8 | 154.08*85.92 | RGB/mipi/LVDS/MCU | 300-1000 |
| 800*480 | EWV | 164.9*100*3.5 | 154.08*85.92 | TTL/MCU | 300-1000 | |
| 800*1280 | IPS | 99.65*160.85*2.4 | 94.2*150.72 | MIPI | 300 | |
| 800*1280 | IPS | 104.3*161.65*2.5 | 93.57*150.05 | LVDS | 300 | |
| 720*1280 | IPS | 91.44*165.91*2.35 | 86.94*154.56 | MIPI | 300 | |
| 1200*1920 | IPS | 98.75*160.85 | 94.50 *151.20 | MIPI | 350-2000 | |
| 1920*1200 | IPS | 98.75*160.85 | 94.50 *151.20 | LVDS | 350-2000 | |
| 8″ | 1024*768 | IPS | 174*136*2.5 | 162.5*121.54 | LVDS | 250 |
| 800*600 | EWV | 182.9*141*5.6 | 162*121.5 | RGB/MCU | 350 | |
| 1024*600 | EWV | 192.8*116.7*6.6 | 176.64*99.36 | RGB/MCU | 450 | |
| 800*1280 | IPS | 114.6*184.1*2.6 | 107.64*172.22 | MIPI | 500-1000 | |
| 1280*800 | IPS | 184.1*114.6*6.4 | 172.22*107.64 | LVDS | 800 | |
| 1280*720 | IPS | 192.8*116.9*4.5 | 176.64*99.36 | LVDS | 350-750 | |
| 1200*1920 | IPS | 114.6*184.1*2.5 | 107.64*172.22 | MIPI | 300-500 | |
| 1920*1200 | IPS | 181.7*119.8*5.5 | 172.2*107.6 | LVDS | 1000 | |
| 8.4″ | 1600*2560 | IPS | 118.68*192.15*1.92 | 113.28*181.248 | MIPI | 280 |
| 9″ | 800*480 | EWV | 210.7*126.5*5.2 | 198*111.696 | RGB/MCU | 300 |
| 720*1280 | IPS | 126.6*210.8*5.0 | 114.048*196.608 | MIPI | 400 | |
| 1280*720 | IPS | 210.7*112.65*5.1 | 198.91*111.89 | LVDS | 350-600 | |
| 9.7″ | 1024*768 | IPS | 210.2*164.2*5 | 196.61*147.46 | LVDS/HDMI | 350-600 |
| 10.1″ | 1280*800 | IPS | 229.46*149.1*2.6 | 216.96*135.6 | LVDS | 350-1000 |
| 720*1280 | IPS | 143.1*235.1*4.5 | 125.28*222.72 | MIPI | 400 | |
| 800*1280 | IPS | 143.06*228.66*4.00 | 135.36*216.58 | MIPI | 300 | |
| 1024*600 | IPS | 235*143*2.9 | 222.72*125.28 | TTL/lvds/MCU | 300/1000 | |
| 1920*1080 | IPS | 235.1*142.5*4.5 | 223.5*125.72 | LVDS | 1000 | |
| 1920*1200 | IPS | 229.25*149.05*2.6 | 216.8064*135.504 | LVDS/mipi | 350-1000 | |
| 1920*1200 | IPS | 231.0*154.5*5.4 | 217.6*135.85 | LVDS | 500-1000 | |
| 1200*1920 | IPS | 143*228.55*2.7 | 135.36*216.576 | MIPI | 350/1000 |
- Company Profile
Shenzhen New Display Co., Ltd. (Bao’an District, Shenzhen) specializes in TFT LCD module R&D/production.
Sizes: 1.44” 1.77″ 2.0”2.2″2.4” 2.8″3.0″3 2″3.5″4.3″ 5.0″8″97″10.1″11.6″12.3″13.3″14.6″15.6″17.3″18.4″21.5″and 23.8″ custom industrial sizes.
Applications: Banking, automotive, mobile devices, consumer electronics.
Markets: China, Europe, Americas, Japan.
Factory: Automated lines, R&D team, full divisions (LCM/TP/SMT/FPC/Backlight).
Customization: Backlight, touch panels (Resistive/Capacitive), AD boards (VGA/HDMI), FPC/RGB cables.
Advantages: High brightness (1000nits), HD/IPS, sunlight-readable/transparent/ultra-thin OLED, competitive pricing.
OUR CERTIFICATE
Looking for your inquiry of this 5.5 inch (1080×1920) resolution TFT LCD display modules with MIPI interface
