Product Parameters
| Item | Content | Unit |
|---|---|---|
| PanelSize | 5.6 inch(Diagonal) | inch |
| Resolution | 640×480 | dots |
| Pixel size | 28.65(H) x 85.95(V) | MM |
| ActiveArea | 112.896 (W) × 84.672(H) mm | MM |
| DotPitch | 0.0588(W) × 0.1764(H) mm | MM |
| PixelArrangement | RGB-stripe | – |
| ModuleSize | 126.5(W)×100(H)×5.7(D) mm | MM |
| ViewingDirection | ALL | – |
| Interface | RGB | – |
| Luminance | 300(TYP) | cd/m² |
| operating temperature | -20-+70 ℃ | ℃ |
| storage temperature | -30-+80 ℃ | ℃ |
Product advantages and uses

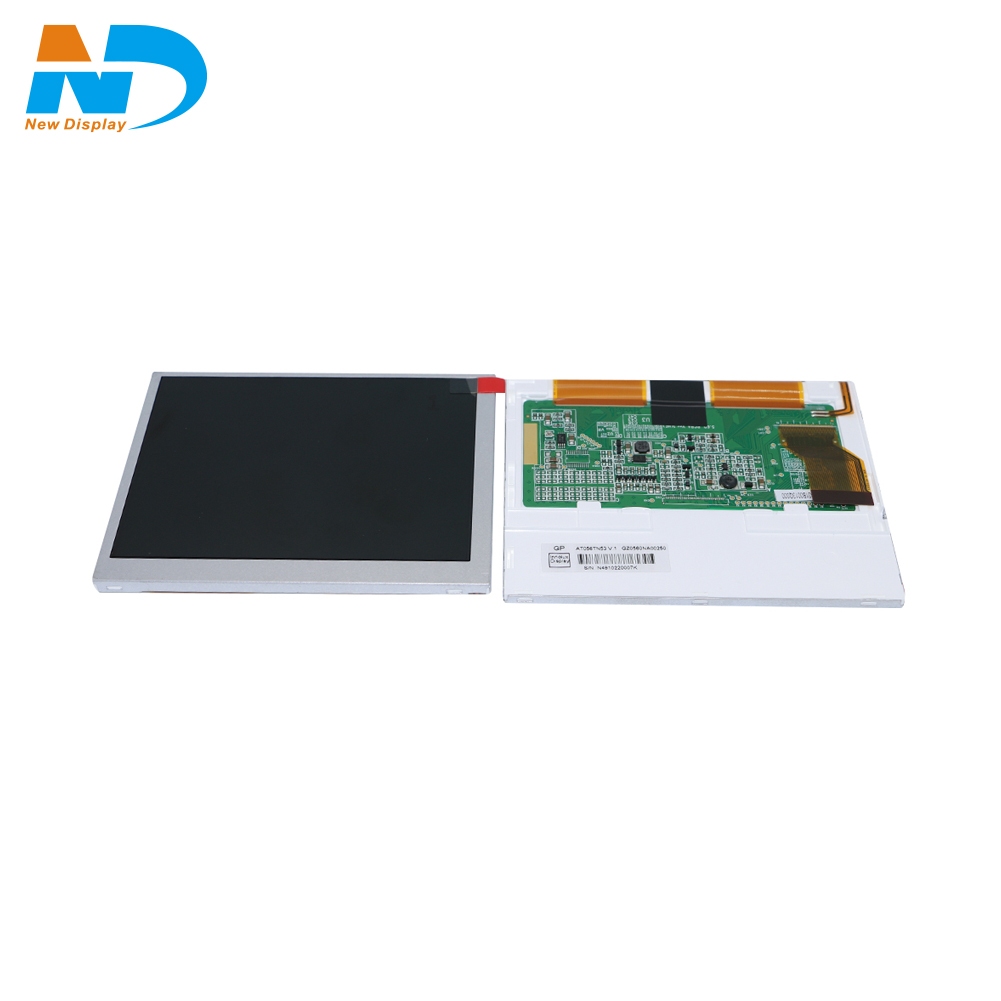

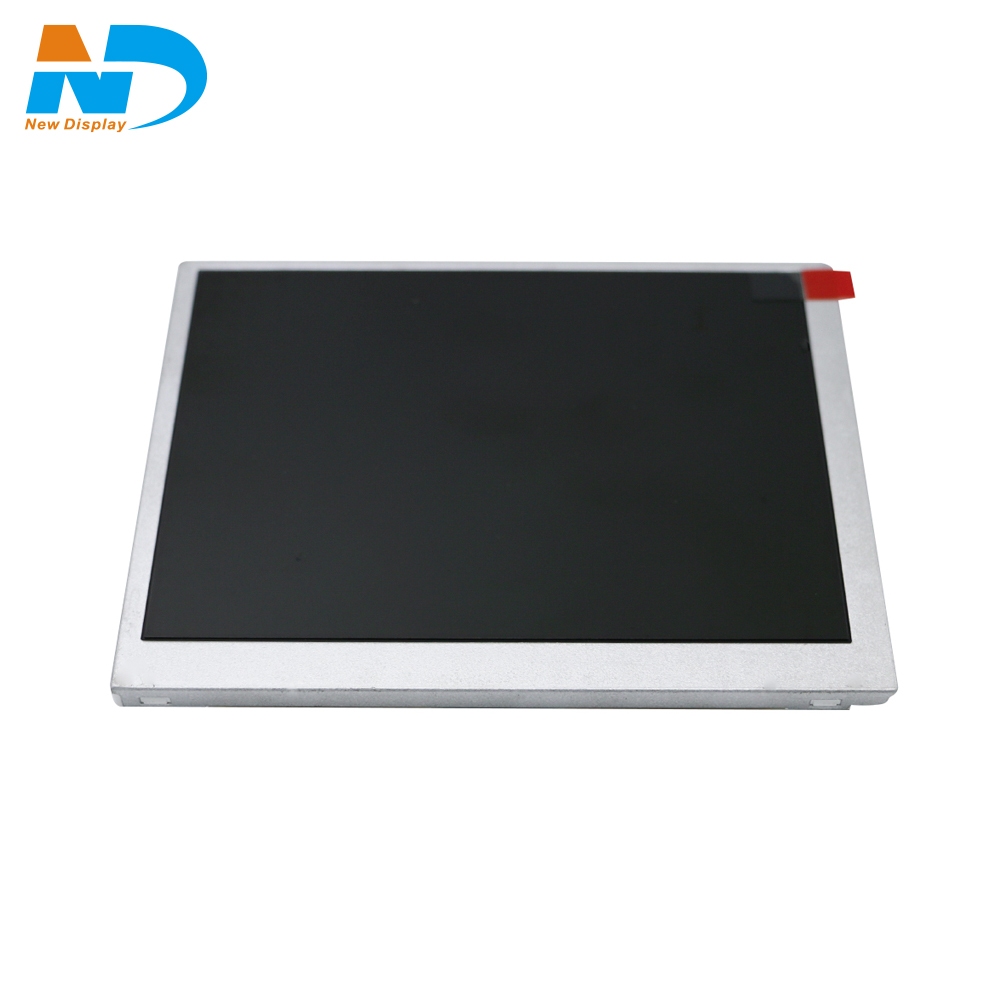

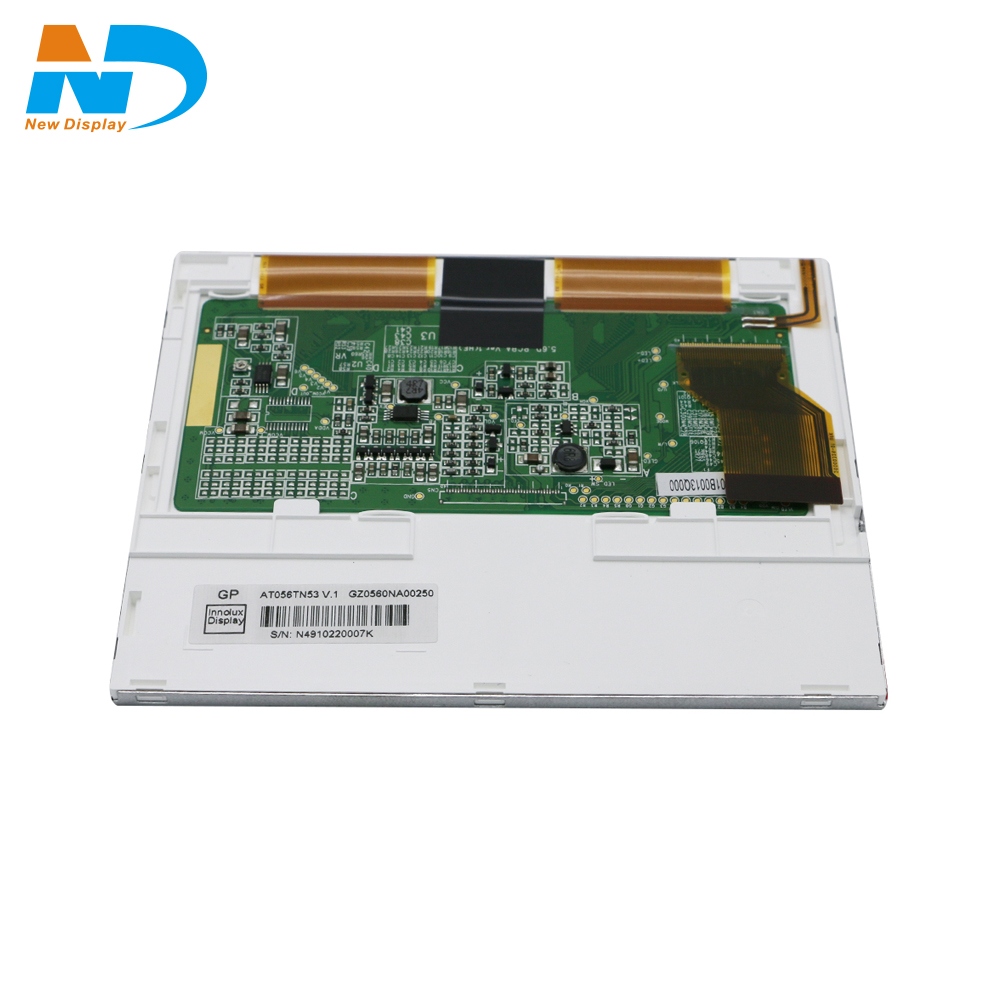

This 5.6-inch TFT LCD module features a 640×480 (VGA) resolution and RGB parallel interface, designed for industrial controls, embedded systems, smart instruments, and consumer electronics. With stable display performance, wide-temperature operation, and high compatibility, it meets reliable visualization needs in mid-to-low resolution scenarios.
Key Features
Balanced Resolution Display
5.6-inch diagonal size with 640×480 resolution, balancing cost and clarity . making it suitable for a wide range of applications requiring high-definition displays, such as industrial control, medical devices, and smart home systems.
262K colors (RGB 6:6:6) for smooth gradients and sharp text/graphics.
Standard RGB Interface
Compatible with mainstream MCUs (e.g., STM32, NXP, Raspberry Pi) for easy integration.
Configurable 16/18/24-bit RGB input to match diverse hardware platforms.
Wide-Temperature & Robustness
Operating temperature: -20℃~70℃; storage temperature: -30℃~85℃.
EMI-resistant design with MTBF >30,000 hours.
Wide Viewing Angle:The 5.6 inch(640×480)resolution TFT LCD display modules ,provides a broad viewing angle range, ensuring excellent visual effects from various angles and meeting the needs of multiple viewers simultaneously.
Fast Response: The 5.6 inch(640×480) resolution TFT LCD display modules With a rapid response time, it effectively reduces image ghosting and blurring, making it ideal for displaying dynamic images such as video playback and game interfaces.
Low Power Consumption:The 5.6 inch(640×480) resolution TFT LCD display modules utilizes advanced energy-saving technology to reduce power consumption while maintaining excellent display performance, extending device usage time and making it particularly suitable for portable devices with strict power requirements.
Easy to Drive: The 5.6 inch(640×480)resolution TFT LCD display modules RGB interface, coupled with detailed driver development documentation and sample code, enables developers to quickly get started and shorten product development cycles.
Applications
Industrial HMI control panels
Smart home control terminals
Portable medical diagnostic devices
Embedded industrial PC displays
Educational lab equipment
- Company Profile
Shenzhen New Display Co., Ltd. (Bao’an District, Shenzhen) specializes in TFT LCD module R&D/production.
Sizes: 1.44” 1.77″ 2.0”2.2″2.4” 2.8″3.0″3 2″3.5″4.3″ 5.0″8″97″10.1″11.6″12.3″13.3″14.6″15.6″17.3″18.4″21.5″and 23.8″ custom industrial sizes.
Applications: Banking, automotive, mobile devices, consumer electronics.
Markets: China, Europe, Americas, Japan.
Factory: Automated lines, R&D team, full divisions (LCM/TP/SMT/FPC/Backlight).
Customization: Backlight, touch panels (Resistive/Capacitive), AD boards (VGA/HDMI), FPC/RGB cables.
Advantages: High brightness (1000nits), HD/IPS, sunlight-readable/transparent/ultra-thin OLED, competitive pricing.
