Product Parameters
| Item | Content | Unit |
|---|---|---|
| PanelSize | 7 inch(Diagonal) | inch |
| Resolution | 1200×1920 | dots |
| Display mode: | Normally Black | MM |
| ActiveArea | 94.50(W)x151.37(H) | MM |
| DotPitch | 0.1506(H) x0.1432(V) | MM |
| PixelArrangement | RGB-stripe | – |
| ModuleSize | 98.8(W)×.161.0(H)×.1.89(D) | MM |
| ViewingDirection | ALL | – |
| Interface | MIPI | – |
| Luminance | 350(TYP) | cd/m² |
| operating temperature | -20-+70 | ℃ |
| storage temperature | -30-+80 | ℃ |

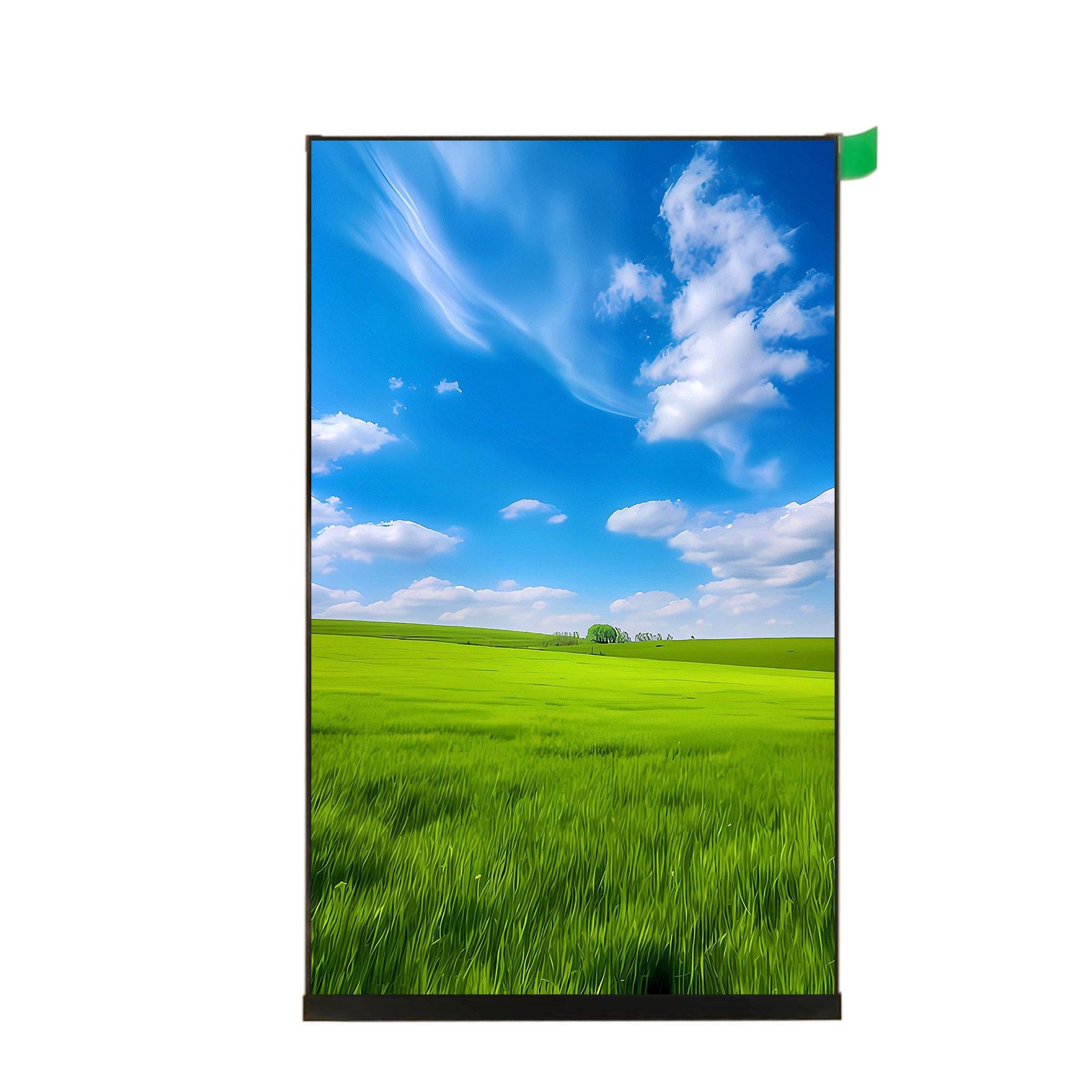

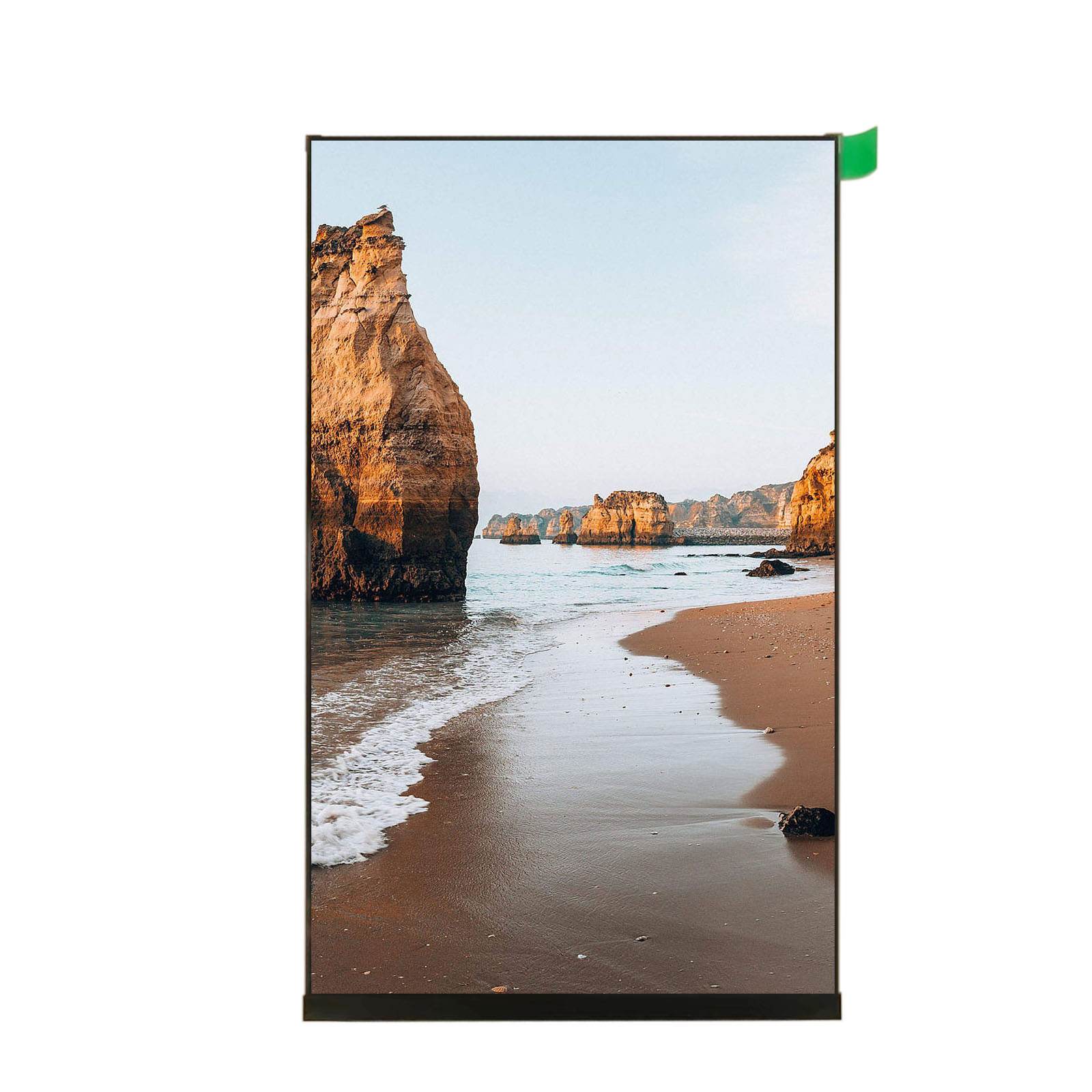

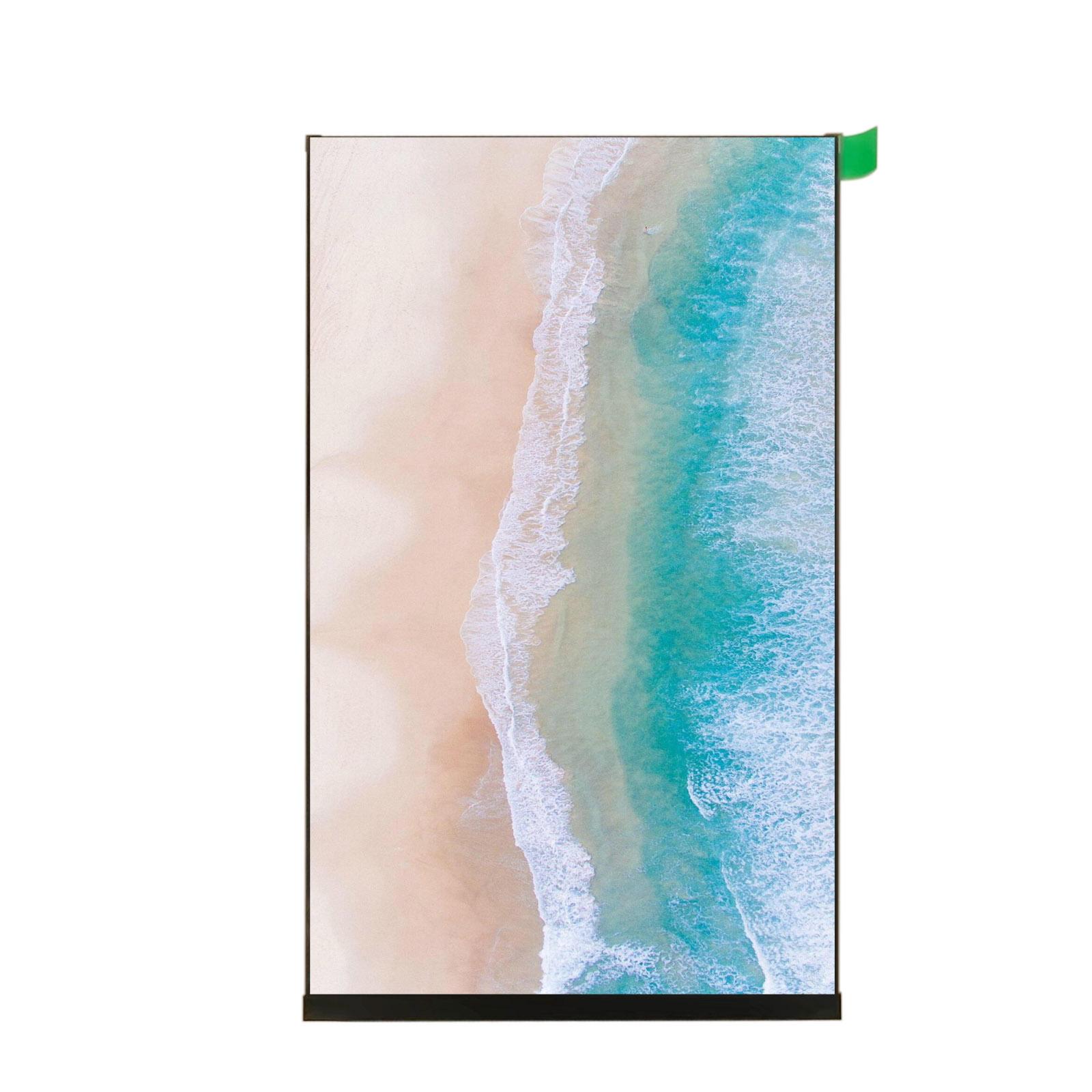

This module is a high-performance 7-inch TFT-LCD display with 1200×1920 (WSVGA) resolution, a 16:9 aspect ratio, and an MIPI (Low Voltage Differential Signaling) interface. Designed for premium industrial control, smart home, medical devices, and automotive systems, it balances ultra-clear display quality with industrial-grade reliability, making it ideal for applications requiring precise visuals and robust performance.
Key Advantages
Ultra-High Resolution: 1200×1920 pixel density delivers sharp imagery, supporting complex GUIs and detailed data visualization.
MIPI High-Speed Transmission: Differential signaling ensures stable data transfer in electromagnetically noisy environments.
Wide Temperature Range:This 7-inch TFT-LCD display operating temperature from -20°C to 70°C, storage temperature from -30°C to 80°C, adapting to extreme climates.
Touch Integration: Optional capacitive (CTP) or resistive (RTP) touch panels support multi-touch and industrial glove operation.
Multi-Interface Compatibility: This 7-inch TFT-LCD display supports MIPI interface switching, compatible with Rockchip, Allwinner, Raspberry Pi, and other mainstream controllers.
Typical Applications
Industrial Control: High-end PLC HMIs, industrial robot monitoring screens, automation line data dashboards.
Smart Home: Smart refrigerator control panels, home security monitoring centers, smart lock interfaces.
Medical Devices: Premium patient monitors, portable ultrasound device interfaces, medical lab analyzers.
Automotive Systems: In-car navigation main screens, smart driving dashboards, entertainment control centers.
Optional value-added services include:
Brightness Upgrade: 1000cd/m² high-brightness version for outdoor use.
Interface Conversion: MIPI to RGB/LVDS adapter board design.
Touch Enhancement: Waterproof capacitive touch (IP65 rated) or industrial-grade resistive touch.
Wide Temperature Optimization: -30°C to 85°C industrial-grade version.
Optical Bonding: Full lamination service to improve contrast and touch sensitivity.
- Company Profile
Shenzhen New Display Co., Ltd. (Bao’an District, Shenzhen) specializes in TFT LCD module R&D/production.
Sizes: 1.44” 1.77″ 2.0”2.2″2.4” 2.8″3.0″3 2″3.5″4.3″ 5.0″8″97″10.1″11.6″12.3″13.3″14.6″15.6″17.3″18.4″21.5″and 23.8″ custom industrial sizes.
Applications: Banking, automotive, mobile devices, consumer electronics.
Markets: China, Europe, Americas, Japan.
Factory: Automated lines, R&D team, full divisions (LCM/TP/SMT/FPC/Backlight).
Customization: Backlight, touch panels (Resistive/Capacitive), AD boards (VGA/HDMI), FPC/RGB cables.
Advantages: High brightness (1000nits), HD/IPS, sunlight-readable/transparent/ultra-thin OLED, competitive pricing.
OUR CERTIFICATE
Looking for your inquiry of this 7 inch (1200×1920) resolution TFT LCD display modules with MIPI interface
