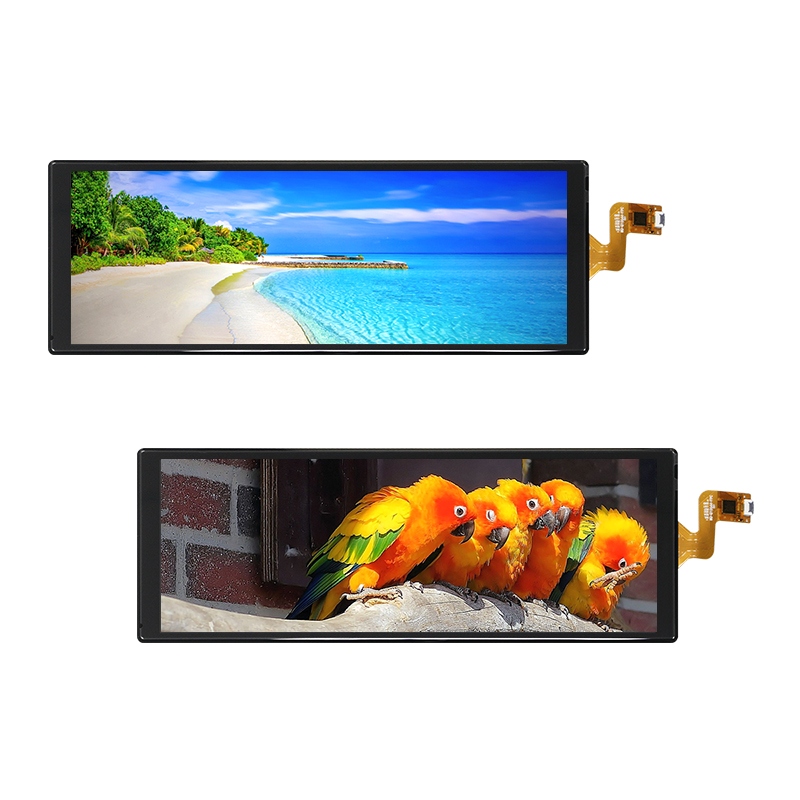

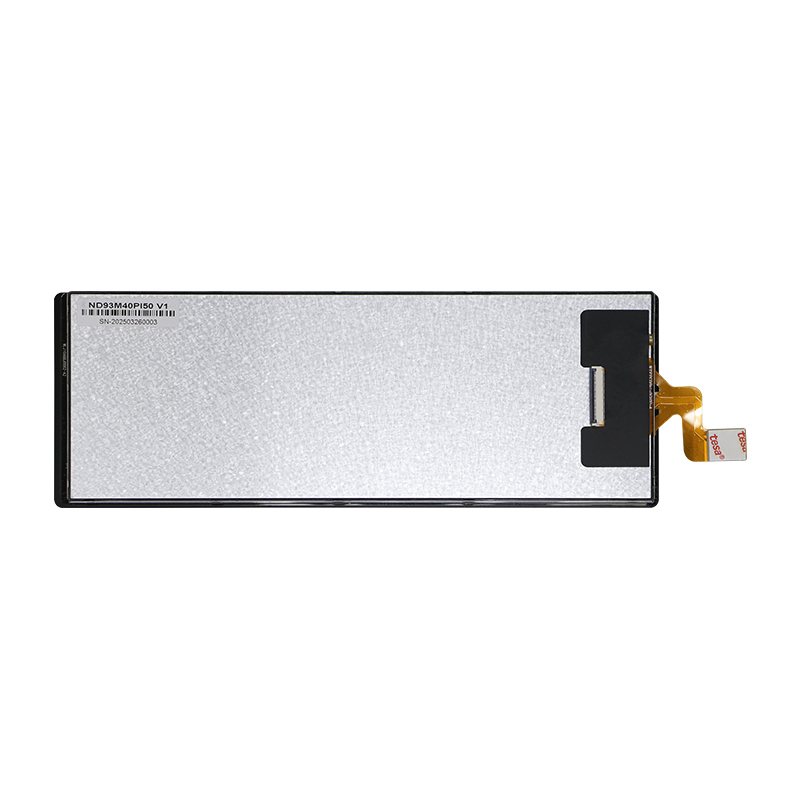

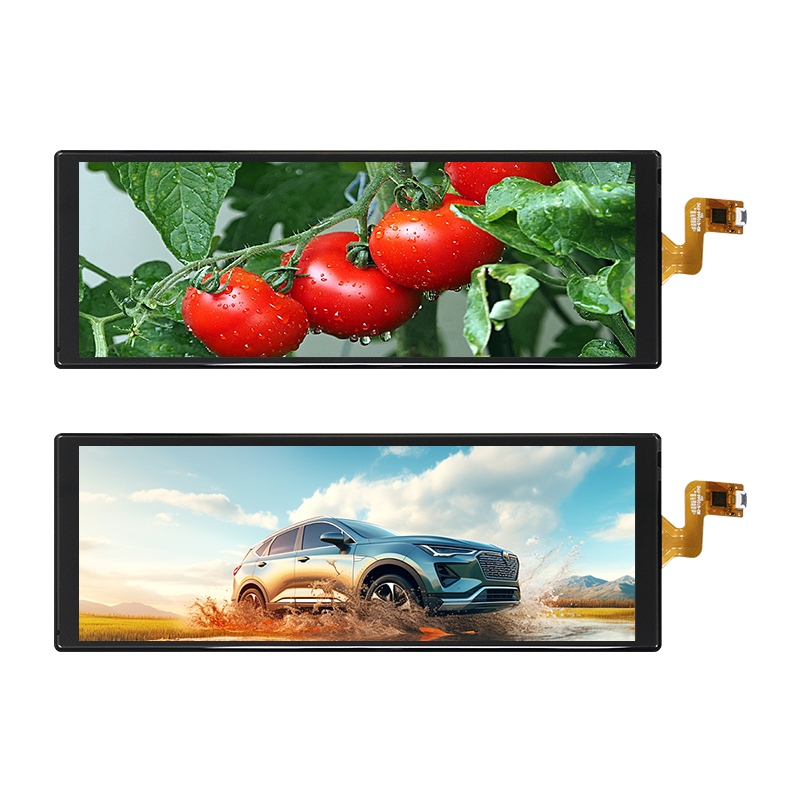

This 9.3-inch bar-shaped LCD module is designed for high-end industrial, automotive, and IoT applications, combining an ultra-wide aspect ratio with MIPI high-speed serial interface to deliver exceptional display performance and compact integration. Featuring 600×1600 resolution for precise image rendering, high-brightness backlight, and wide viewing angles, it is ideal for space-constrained scenarios requiring dense information display, such as automotive dashboards, medical monitoring systems, digital signage, and industrial control terminals.

Key Features

This 9.3-inch bar-shaped LCD module Superior Display Performance
Resolution: 600×1600 (15:40 ultra-wide format), 233PPI pixel density for crisp text and complex graphics.
Brightness: Standard 500cd/m² (1000cd/m² high-brightness option with auto-dimming support).
Color: 16.7 million colors (8-bit RGB), supporting DCI-P3 color gamut and customizable gamma curves.
Viewing Angle: 178° IPS full-viewing angle with no color shift.
This 9.3-inch bar-shaped LCD module MIPI Interface Advantages
High-Speed Transmission: MIPI DSI interface (4 Lane), 1.5Gbps per lane, supporting 4K@60fps video streams.
Low Power: Dynamic Voltage Scaling (DVS) technology, <5mW standby power, 30% reduced operating power.
Simplified Design: Only 6 signal pins required, differential signaling for enhanced noise immunity.
This 9.3-inch bar-shaped LCD module Mechanical & Optical Design
Compact Structure: Active area m 82.944(H)×221.184(V), module thickness 7.3MAX mm (with adhesive).
Flexible Installation: 6×M2.5 mounting holes + 3M VHB adhesive for curved surface bonding.
Bar-Optimized: 30:1 aspect ratio for horizontal info bars, waveform displays, or multi-parameter monitoring.
This 9.3-inch bar-shaped LCD module Environmental Robustness
Operating Temp: Standard -20°C~70°C (extended -30°C~80°C wide-temp option).
Protection: IP65 front panel rating (with custom bezel), 5G/11ms vibration resistance.
This 9.3-inch bar-shaped LCD module Intelligent Backlight Control
Dimming Modes: PWM/DC dual-mode dimming with ambient light sensor integration.
Local Dimming: Optional 16-zone backlight driver for 400% contrast improvement.
Electrical Specifications

Interface Protocol: MIPI DSI v1.2, supporting RGB888/RGB666 data formats.
Driver IC: Integrated source driver + timing controller (TCON), HDR10 decoding support.
Backlight: Side-lit LEDs (white/RGB options), >50,000-hour lifespan.
Typical Applications

Smart Automotive: AR HUD overlay layer, multi-screen interaction sub-displays, ADAS info bars.
Medical Devices: Ultrasound imaging secondary screens, multi-parameter monitor waveforms, surgical navigation sub-displays.
Industrial Control: SCADA system status bars, CNC tool monitoring, robotic debugging interfaces.
Digital Signage: Subway transit guidance, retail shelf info strips, museum interactive labels.
Quality & Compliance

Certifications: CE/FCC/RoHS/REACH, optional AEC-Q100 (automotive)/ISO 13485 (medical) compliance.
Reliability Testing: 72-hour high-temp/humidity aging, 100k-cycle mechanical vibration tests.
Customization Services

Touch Integration: Projected capacitive touch (glove/wet-hand support), customized touch zones.
Optical Upgrades: Anti-fingerprint (AF) coating, circular polarizers (sunlight readability), privacy filters.
Functional Extensions: Integrated NFC/RFID modules, pressure sensors, or capacitive buttons.

Technical Support
Design Services: Thermal simulation, EMI shielding solutions, mechanical reinforcement.
Long-Term Commitment: 5-year supply guarantee.
This module redefines narrow-space interactive displays by combining ultra-high resolution, MIPI efficiency, and bar-shaped form factor, offering developers innovative solutions balancing performance and integration ease.
