With the rapid development of intelligent manufacturing and digital control systems, industrial HMI displays require higher image quality, stronger durability, and more reliable connectivity. Traditional displays may struggle with detailed graphics, complex interfaces, and long-term operation in demanding environments. Therefore, manufacturers are increasingly adopting advanced display technologies that provide both visual performance and industrial reliability.

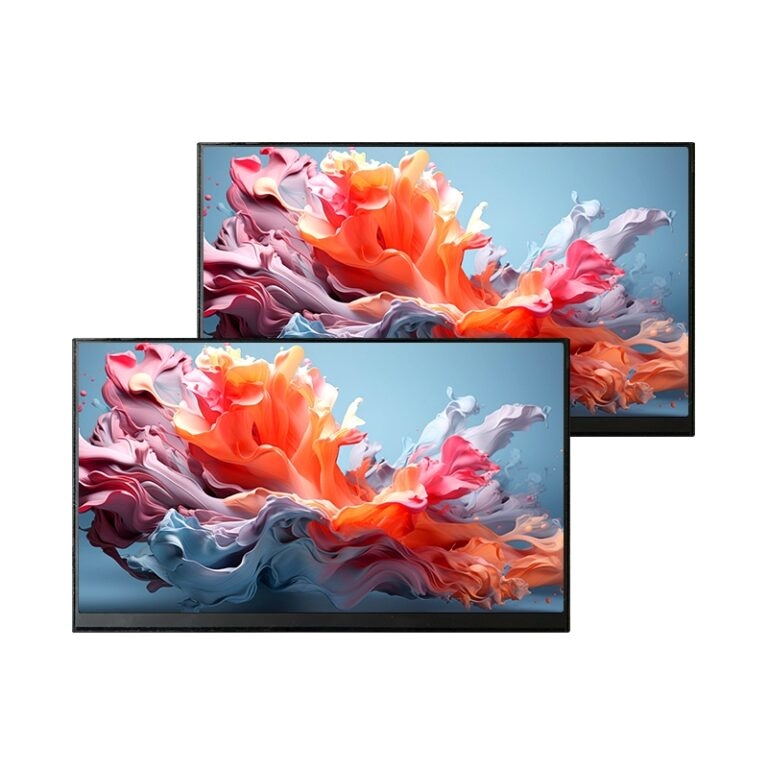

The 10.1-inch full HD TFT panel is designed to meet these requirements by combining Full HD 1920×1080 resolution, excellent color reproduction, and stable LVDS connectivity. This high-performance display module delivers sharp images, smooth operation, and clear interface visibility, making it suitable for industrial automation, medical equipment, digital signage, and smart control terminals. New Display provides professional display solutions that help customers integrate high-quality visual interfaces into different applications.
Full HD 1920×1080 Resolution Improves HMI Visibility
In industrial environments, operators often need to monitor complex data, control multiple functions, and identify detailed information quickly. As a result, display clarity plays an important role in improving operational efficiency. The 10.1-inch full HD TFT panel features a 1920×1080 pixel resolution, allowing images, icons, charts, and text to appear with exceptional sharpness. Compared with lower-resolution displays, Full HD technology provides more screen details within the same compact size, helping users interact with HMI systems more accurately.
Moreover, the panel supports 16.7 million colors with 24-bit color depth, creating smooth color transitions and realistic visual performance. This makes it ideal for applications where precise image presentation is essential.
Advanced Color Performance and Brightness for Different Environments
Industrial displays are often installed in environments with changing lighting conditions. Therefore, brightness and contrast performance directly affect user experience. This TFT LCD module uses a high-brightness LED backlight with a typical brightness of 500cd/m² and a 1000:1 contrast ratio. These features ensure clear visibility even in bright workplaces or areas with strong ambient lighting.
Furthermore, the optimized LED backlight system provides long service life exceeding 50,000 hours. With PWM dimming control, the display can adjust brightness efficiently while reducing unnecessary energy consumption.
| Feature | Advantage |
|---|---|
| 1920×1080 Full HD resolution | Provides detailed images and clearer HMI interfaces |
| 16.7 million colors | Delivers smooth gradients and accurate visual output |
| 500cd/m² brightness | Improves visibility in different lighting conditions |
| 178° viewing angle | Maintains image quality from multiple directions |
| LVDS interface | Ensures stable and low-noise signal transmission |
Reliable LVDS Interface for Industrial Integration
For industrial equipment, stable data transmission is essential to maintain consistent display performance. Signal interference or unstable connections may affect system operation. The display module adopts a dual-channel LVDS interface, supporting high-speed data transmission between display controllers and processors. In addition, LVDS differential signaling provides strong EMI resistance, allowing reliable performance in electrically noisy industrial environments.
Because of its flexible interface configuration, including 20-pin and 30-pin LVDS options, the module can be easily integrated into various industrial systems. It also supports DE mode and JEDEC-compliant timing standards for broader compatibility.
Industrial-Grade Design for Harsh Operating Conditions
Industrial applications require displays that can withstand temperature changes, vibration, and continuous operation. Therefore, durability is a key factor when selecting an HMI display solution. The panel uses IPS technology to provide a 178° horizontal and vertical viewing angle with minimal color distortion. This allows operators to view consistent images from different positions.
Additionally, the display is designed for industrial environments with an operating temperature range of -20°C to 70°C. It also offers resistance against shock, vibration, and humidity, making it suitable for demanding applications.
Compact Structure with Flexible Installation Options
Besides performance, installation flexibility is another important consideration for equipment manufacturers. The 10.1-inch display module features a compact active area of 217.6(H) × 135.85(V) mm, allowing easy integration into different device designs.
The module supports DC 12V power input with a wide voltage range from 9V to 18V. Built-in overvoltage protection further enhances system safety and reliability. Moreover, VESA 75mm and 100mm mounting holes provide flexible installation options for industrial enclosures, control panels, and rack-mounted equipment.
Wide Application Range Across Multiple Industries
Due to its high resolution, stable performance, and flexible integration capability, this display module can support various applications.
Typical applications include:
- Industrial Automation: SCADA systems, robotics control interfaces, and quality inspection stations require clear and responsive displays for efficient operation.
- Medical Equipment: Diagnostic imaging systems and surgical monitoring devices benefit from accurate image reproduction and reliable performance.
- Commercial Equipment: Digital signage, POS terminals, and interactive kiosks use the display for engaging user experiences.
- Automotive Systems: In-car entertainment systems and advanced driver-assistance dashboards require compact displays with excellent visibility.
- Consumer Electronics: Premium tablets, portable monitors, and VR/AR devices benefit from Full HD visual performance.
Reliable Display Integration from New Display
For equipment developers and system integrators, choosing the right display module can significantly improve product performance and user experience. The combination of Full HD resolution, industrial durability, and efficient connectivity makes this display solution suitable for modern intelligent devices. New Display focuses on providing dependable display technologies that support customized integration requirements. Through advanced TFT technology, stable interfaces, and flexible design options, the 10.1-inch full HD TFT panel helps manufacturers create clearer, smarter, and more efficient HMI solutions.
